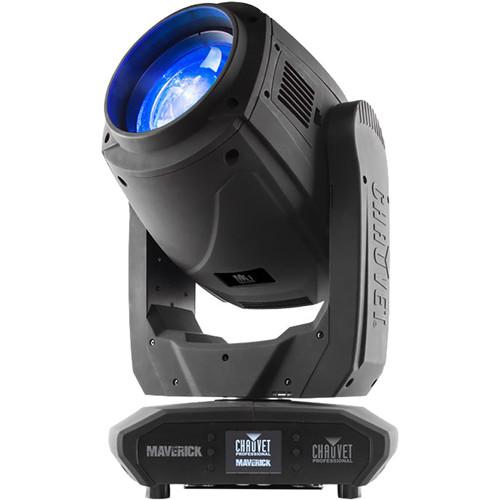

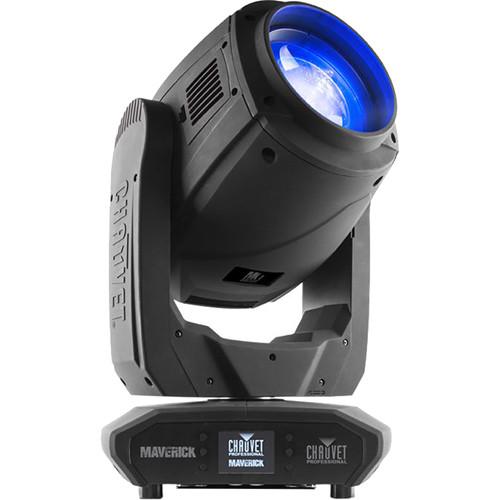

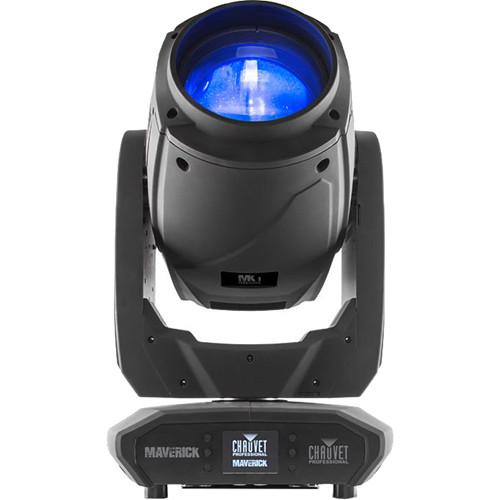

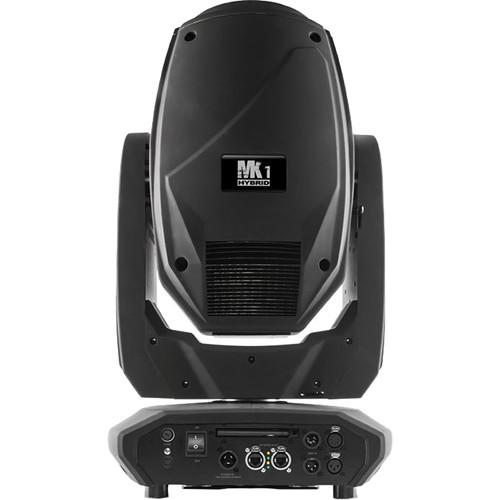

Product description The black Maverick MK1 Hybrid Light Fixture from CHAUVET puts a lot of options at your fingertips. With advanced optics, overlapping 8 and 4-facet prisms, a versatile Gobo package, a 3° to 18° zoom range in spot mode and 19° to 41° in wash mode, and a robust CMY color system. It is powered by a 440W Osram Sirius reflector lamp, this hybrid fixture awaits your command with output and effects. - High powered Spot/Beam combination fixture with CMY color mixing and overlapping prisms
- Precise movement of Pan and Tilt functions
- Variable CMY color mixing and static colors to create a wide range of color options
- Individually controllable and overlapping 8- and 4-facet prisms
- Frost and beam flattening options for even light distribution
- Zoom angle of 3° to 18° in spot mode and 19° to 41° in wash mode for multiple coverage options
- Tight 1° beam for extremely focused areal effects
- 6 rotating and 18 static gobos for massive visual impact
- DMX , W-DMX, sACN, and Art-Net for full flexibility of control options
- One compatible power input
- Battery backup display with auto rotate depending on fixture orientation
UPC: 781462215507 In the Box CHAUVET PROFESSIONAL Maverick MK1 Hybrid Light Fixture (Black) Seetronic PowerCON IP65 Power Cord Omega Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Maverick MK1 Hybrid Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Maverick MK1 Hybrid Specs | | | Light Source | Osram Sirius 440W lamp
Color Temp: 7000K
Life Expectancy: 1,500 hours | | Color Temperature | 6207K (at full) | | Beam Angle | 1° to 6° (Spot mode)
1° (Beam mode)
9° to 22° (Wash mode) | | Field Angle | 3° to 18° (Spot mode)
2° (Beam mode)
19° to 41° (Wash mode) | | Zoom Angle | Spot Mode: 3° to 18°
Wash Mode: 19° to 41° | | Illuminance | 2°: 212,100 lux @ 49' (15 m)
3°: 123,200 lux @ 49' (15 m)
18°: 25,800 lux @ 16' (5 m)
19°: 16,000 lux @ 16' (5 m)
41°: 2,235 lux @ 16' (5 m) | | | | Pan & Tilt | 540°/270° | | Pan & Tilt Range | Pan: 540°, 360°, 180°
Tilt: 270°, 180°, 90° | | Colors | 15 + white, split colors
CMY flags, CTO | | Gobos | (1) 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
(2) 18 + open (18 metal), continuous scroll at variable speeds | | Gobo Size | Gobo Wheel 1 (Rotating):
0.8" / 22 mm (outside)
0.5" / 13 mm (image)
0.04" / 1.1 mm (maximum thickness) | | Wheel | 1 effect | | Motorized | Dimmer, shutter/strobe, zoom, focus, frost | | Prism | (1): 4 Facets, motorized, rotating
(2): 8 Facets, motorized, rotating | | | | Power Connections | Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Data Connector | 3- and 5-pin XLR | | Cable Length | 5' (1.5 m) | | | | Control Protocol | Art-Net, DMX, W-DMX, sACN | | DMX Channels | 27 or 30 | | Channels | Art-Net Channels: 27 or 30 | | Modes | Personalities: 2 (27 and 30) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 670 W, 5.45 A @ 120 V, 60 Hz
648 W, 3.12 A @ 208 V, 60 Hz
651 W, 2.81 A @ 230 V, 50 Hz | | | | Housing Material | High-impact flame-retardant polymer | | Certifications | CE, MET | | IP Rating | IP20, dry location | | Ambient Temperature | -4 to 113°F (-20 to 45°C) | | Dimensions | 15.5 x 12.1 x 24.8" (39.3 x 30.7 x 62.9 cm) | | Weight | 66.7 lb (30.2 kg) | | | | Package Weight | 92.0 lb | | Box Dimensions (LxWxH) | 31.0 x 24.9 x 24.2" |
