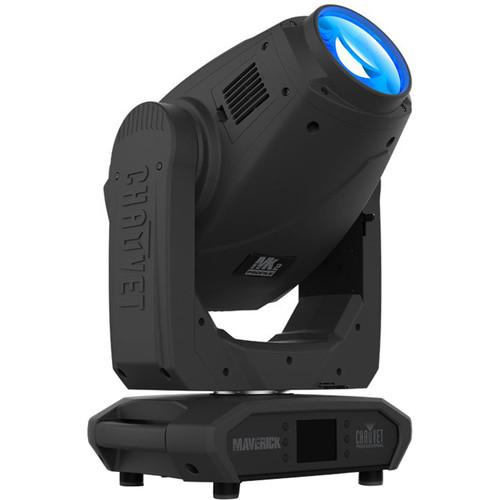

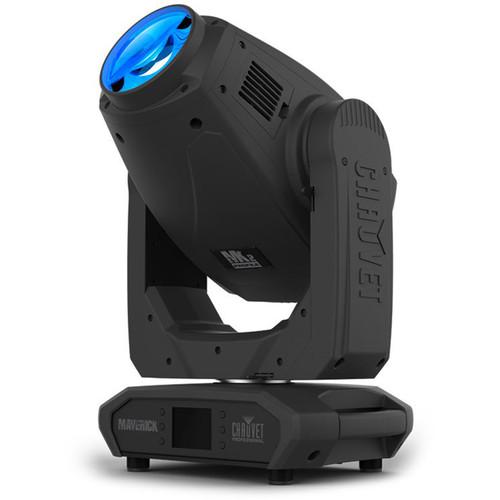

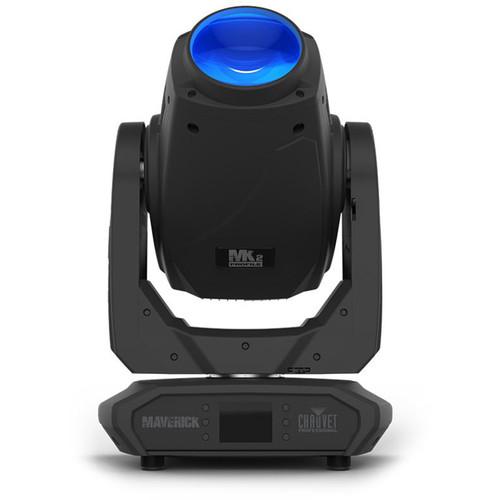

User Manual for CHAUVET PROFESSIONAL Maverick MK2 Profile - 440W LED Moving Head Light Fixture with Gobos Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Maverick MK2 Profile -
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Maverick MK2 Profile - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The CHAUVET PROFESSIONAL Maverick MK2 Profile is a flexible, moving head LED light fixture designed to perform a wide variety of functions in theatrical, house of worship, touring, and event applications. Ideal for use in large venues, the unit is powered by a bright, 440W, cool-white LED with an illuminance of 14,981 lux at 16.4' and motorized zoom angles ranging from 14 to 37°. It features a four-blade framing shutter system with rotation, a color wheel, two rotating gobos, as well as motorized focus, 3-facet prism, frost, and iris effects. With variable strobe, fast and accurate head movements, movement macros, move-in-black functionality, and more, this fixture is capable of producing a myriad of precisely-shaped beam to energize your show.The Maverick MK2 Profile provides CMY and CTO color mixing with a color temperature of 5883K, a CRI greater than 90, and 16-bit, electronic dimming to create a palette of vibrant colors with smooth fades. The color wheel comes with seven colors plus white and split and is capable of continuous or variable-speed scrolling. The two gobo wheels include six rotating gobos plus an open position and offer gobo shake and continuous or variable-speed scrolling.The unit can be controlled via DMX, W-DMX, sACN, and Art-Net protocols. It also converts TCP/IP to DMX for shorter data cable runs and offers RDM control over DMX for remote addressing and troubleshooting. The Maverick MK2 Profile ships with two Omega brackets with mounting hardware and a Neutrik powerCON power cord. - Key Features
-
- Compact, moving-head fixture with intense 440W, cool-white LED light engine
- Designed to perform a wide variety of functions in theatrical, house of worship, touring, and event applications
- Four-blade framing shutter system with rotation and dual-axis movement for each shutter, shapes and sizes beams with great precision
- 3:1 motorized zoom with 13 to 37° zoom angle, for variable beam sizes
- Motorized focus, three-facet rotating prism, iris, and variable frost offer creative beam control
- Variable CMY+CTO color mixing system to create a wide palette of colors
- Color temperature (full): 5883K
- CRI: >90
- Seven-position color wheel with split-color ability, and continuous, variable-speed scrolling
- Two, six-position, rotating, indexing, and interchangeable slot-and-lock gobo wheels
- Gobo shake and continuous, variable-speed scrolling effects
- 16-bit LED dimming for smooth fade control
- Beam Angle: 12 to 35°
- Up to 540° pan and 270° tilt
- Variable strobe
- Move in black
- Movement macros
- DMX Channels: 33 or 50
- Compatible with DMX, W-DMX, sACN, and Art-Net protocols for flexible control options
- RDM-enabled for remote addressing and troubleshooting
- Display with battery backup auto-rotates depending on fixture orientation
- Selectable PWM settings to maintain flicker-free operation on camera

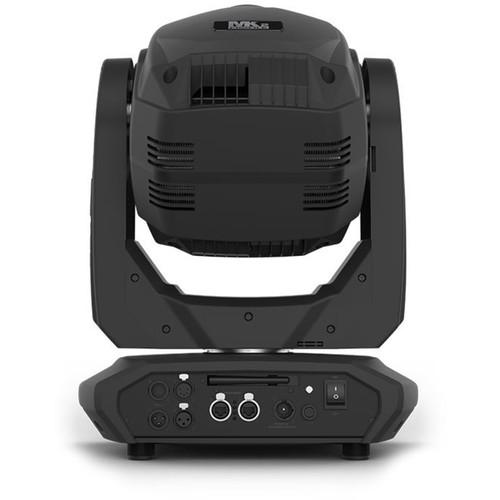

- 3- and 5-pin DMX I/O connectors
- Amphenol XLR Net RJ45 Art-Net / sACN I/O connectors
- Built-in W-DMX antenna
- Compatible with powerCon True 1 power input
- Multi-voltage operation: 100-240 VAC, auto-ranging
- Includes two Omega brackets with mounting hardware
UPC: 781462216603 In the Box CHAUVET PROFESSIONAL Maverick MK2 Profile - 440W LED Moving Head Light Fixture with Gobos Seetronic Powerkon IP65 Power Cord 2 x Omega Brackets with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Maverick MK2 Profile - 440W LED Moving Head Light Fixture with Gobos in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Maverick MK2 Profile Specs | Light Source | 1 x 469.1 W CW (cool-white) LED (6.5 A)
CRI: >90
50,000 hours life expectancy | | Color Temperature | 5883K at full | | Illuminance | 13°: 14,981 lux at 16.4' / 5 m
36°: 2098 lux at 16.4' / 5 m | | Beam and Field Angle | Beam Angle: 12 to 35°
Field Angle: 13 to 37° | | Zoom Angle | 13 to 37° | | PWM Frequency | 600, 1200, 2000, 4000, 6000, 15,000 Hz (selectable) | | Pan/Tilt | 540° / 270° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 270° | | Gobo Wheels | Wheel 1: 6 gobos + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Wheel 2: 6 gobos + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds | | Gobo Size | Gobo Wheel 1 (Rotating):
Size: 1.25" / 32 mm (outside), 1.10" / 28 mm (image), 0.04" / 1.1 mm (maximum thickness)
Gobo Wheel 2 (Rotating):
Size: 1.25" / 32 mm (outside), 1.02" / 26 mm (image), 0.04" / 1.1 mm (maximum thickness) | | Color Wheel | 7 colors + white (open), split colors, continuous scroll at variable speeds
CMY flags, CTO flags | | Color Mixing | Variable CMY and CTO color mixing | | Framing Shutter | 4 blades, each with dual-axis movement
Rotation: 90° | | Effects | Dimmer: 0-100%, 16-bit, electronic
Dim Curves: 4CMY flags, CTO flag
Shutter/Strobe: Electronic, variable from 0 to 20 Hz
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3 facets, motorized, rotating
Move in black | | Control | Control Protocol: Art-Net, DMX, W-DMX, sACN
DMX Channels: 33 or 50
Art-Net Channels: 33 or 50
Modes/Personalities: 2 personalities (33, 50) | | Data Connectors | DMX: XLR 3-pin I/O
DMX: XLR 5-pin I/O
Art-Net / sACN: Amphenol XLR Net RJ45 Connectors I/O | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 750 W, 6.32 A at 120 V, 60 Hz
732 W, 3.5 A at 208 V, 60 Hz
734 W, 3.1 A at 230 V, 50 Hz | | Fuse | F 12 A, 250 V | | Power Connection Type | Input: Neutrik Seetronic powerCON IP65 | | Power Cord | Edison plug to Neutrik Seetronic powerCON IP65 (included)
Length: 5' / 1.5 m | | IP Rating | IP20, dry location | | Cooling System | Convection | | Operating Temperature | -4 to 113°F / -20 to 45°C, ambient | | Construction | Housing Material: High-impact, flame-retardant polymer
Exterior Color: Black | | Certification | CE, MET | | Dimensions | 15.5 x 11.0 x 26.4" / 394.0 x 279.0 x 671.0 mm | | Weight | 69.9 lb / 31.7 kg |
