User Manual for CHAUVET PROFESSIONAL Maverick MK2 Spot LED Moving Head Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Maverick MK2 Spot LED
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Maverick MK2 Spot LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

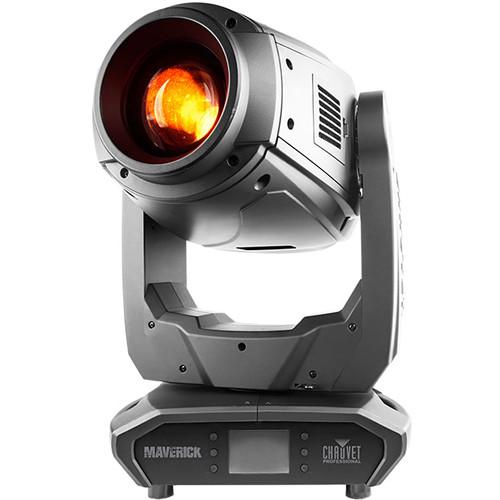

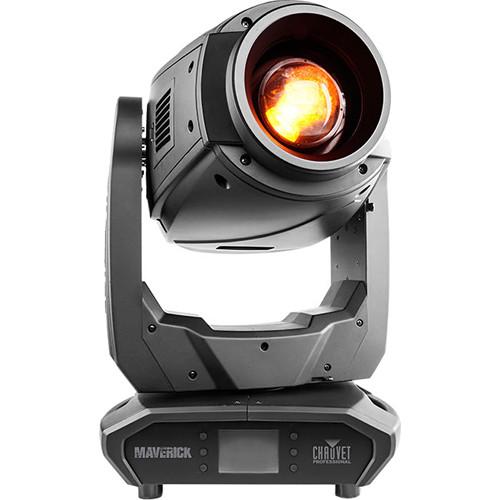

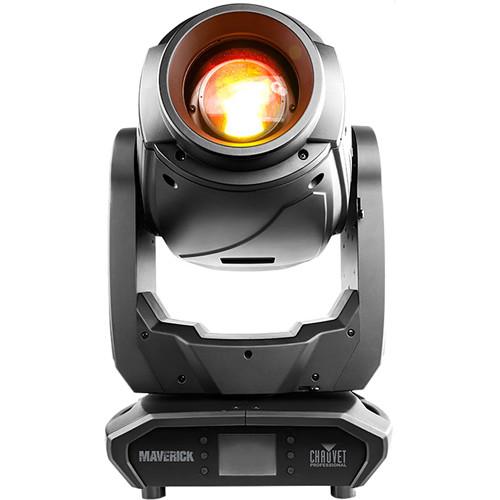

Product description The Maverick MK2 Spot from Chauvet is an LED-based moving head fixture that delivers bright lighting with precision-engineered optics and a CMY+CTO color mixing system. It is powered by a 440W LED engine, and features two 6-position rotating slot-&-lock gobo wheels, a 7-position + white color wheel, variable frost, and a 3-facet prism, all of which are projected through a 13° to 37° zoom system. Additionally, this fixture supports DMX, Art-Net, sACN, and W-DMX control protocols. -
- Fully-featured 440W LED yoke spot fixture including CMY+CTO color mixing, a color wheel, zoom optics, and two rotating gobo wheels
- 16-bit dimming of master dimmer for smooth control of fades
- Variable CMY+CTO color mixing system creates a wide palette of colors
- Two rotating, indexing, and interchangeable slot-and-lock gobo wheels
- DMX, WDMX, sACN, and Art-Net provide full flexibility of control options
- Converts TCP/IP protocol to DMX for shorter data cable runs
- 13° to 37° zoom angle for variable beam sizes
- Iris, 3-facet prism, and frost for beam control
- True 1 compatible power input
- Battery backup display with auto-rotate depending on fixture orientation
UPC: 781462215026 In the Box CHAUVET PROFESSIONAL Maverick MK2 Spot LED Moving Head Seetronic Powerkon IP65 Power Cord 2 x Omega Brackets with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Maverick MK2 Spot LED Moving Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Maverick MK2 Spot Specs | Light Source | 1 x cool white LED, 440 W (5.6 A) | | Life Expectancy | 50,000 hours | | Illuminance | 13°: 18079 lux @ 16.4' / 5 m
37°: 2518 lux @ 16.4' / 5 m | | Color Temperature | 6808K (full on) | | CRI | 73 | | Beam Angle | 12° to 35° | | Field Angle | 13° to 37°° | | Zoom Angle | 13° to 37° | | Zoom | Motorized | | PWM Frequency | 1100 Hz | | Pan Range | 540° / 360° / 180° | | Tilt Range | 270° / 180° / 90° | | Dimmer | Electronic | | Dimmer Curves | 4 x curves | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 20 Hz | | Focus | Motorized | | Iris | Motorized | | Filter Effects | Motorized frost | | Color Mixing | CMY + CTO | | Color Wheel | 7 + white, split colors
Continuous scroll at variable speeds | | Gobos | Gobo Wheel 1: 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos Wheel 2: 6 + open (6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds | | Gobo Size | Gobo Wheel 1 (Rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness)

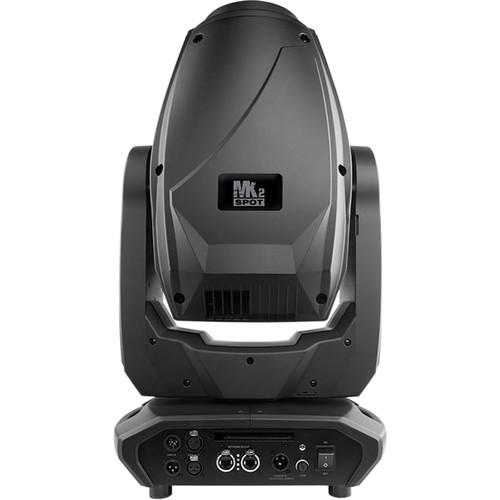

Gobo Wheel 2 (Rotating): 32 mm (outside), 28 mm (image), 3.3 mm (max. thickness) | | Prism | 3-facet, rotating prism | | Protocols | Art-Net, sACN, DMX, W-DMX | | DMX Channel Modes | 2 x Modes: 24 or 32 channels | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | Data Connector | Through: 2 x etherCON | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: Seetronic Powerkon IP65
Output: None | | Power Cable | Edison plug to Seetronic Powerkon IP65 | | Power Cable Length | 5' (1.5 m) | | Power Consumption | 740 W, 6.01 A @ 120 V, 60 Hz
723 W, 3.63 A @ 208 V, 60 Hz
700 W, 3.33 A @ 230 V, 50 Hz | | Certifications & Approvals | CE, MET
IP Rating: IP20, dry location | | Housing Material | Aluminum die-cast | | Mounting | 2 x omega brackets | | Working Position | Upright or inverted (180°) | | Dimensions | 15 x 9.8 x 26" (39 x 25 x 67 cm) | | Weight | 62.8 lb (28.5 kg) | | | | Package Weight | 76.0 lb | | Box Dimensions (LxWxH) | 29.6 x 19.5 x 13.6" |
