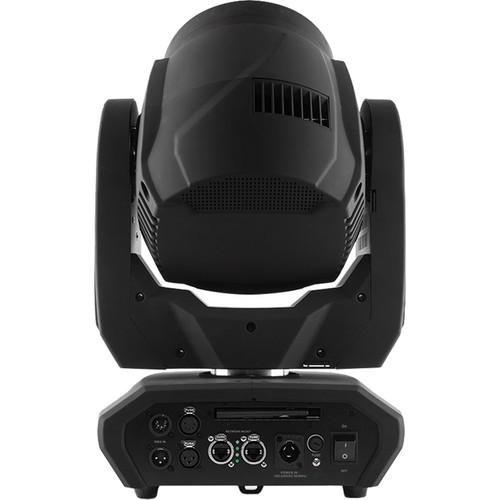

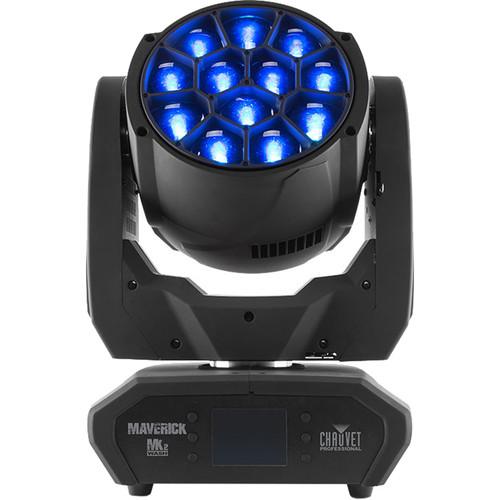

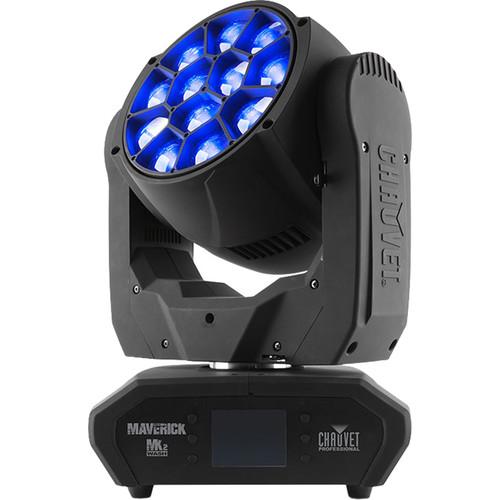

Product description The Maverick MK2 Wash from CHAUVET is a moving head wash fixture packed with features, such as complete pixel mapping, a virtual gobo wheel with background colors, pre-programmed colors, a 7º to 49º zoom range, and more. Powered by twelve (40W) Osram RGBW LEDs, it has enough output to handle most applications, even aerial washing. You can control this fixture via DMX, sACN, Art-Net, KlingNet, or WDMX. -
- Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom
- 7° to 49° zoom angle for variable beam sizes
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
- Built-in colors for quick design possibilities
- Built-in virtual gobo wheel with background colors for impressive atmospheric effects
- Fast movement of pan, tilt, and zoom
- Quiet operation for a wide range of installation situations
- Converts TCP/IP Protocol to DMX for shorter data cable runs
- Dual Protocol Mode allows for the movements and pixels to be controlled by separate protocols
UPC: 781462215491 In the Box CHAUVET PROFESSIONAL Maverick MK2 Wash Moving Head Fixture Seetronic Powerkon IP65 Power Cord Omega Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Maverick MK2 Wash Moving Head Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Maverick MK2 Wash Specs | | | Light Source | 12 x LEDs (quad-color RGBW) 40 W, (2.6 A) | | Life Expectancy | 50,000 hours | | Beam Angle | 5° to 36° | | Field Angle | 7° to 49° | | Zoom Angle | 7° to 49° | | Illuminance | 7°: 19,000 lux @ 16.4' (5 m)
49°: 800 lux @ 16.4' (5 m) | | PWM Frequency | 900 Hz | | | | Pan & Tilt | 540° / 270°
Pan Range: 180°, 360°, 540°
Tile Range: 90°, 180°, 270° | | Dimmer | Electronic | | Shutter | Electronic | | Zoom | Motorized | | Strobe Rate | 0 to 20 Hz | | Color Temperature Presets | Yes | | Dimmer Curves | 4 | | | | Protocol | Art-Net, sACN, Kling-Net, DMX, W-DMX | | DMX Channel Modes | DMX / Art-Net:
Single Mode: 20, 69, 115
Dual Mode (Function): 8, 20, 26
Dual Mode (Pixel): 36, 48, 60 | | | | DMX Connectors | Input: XLR 3-pin and XLR 5-pin | | Data Connector | 2 x etherCON | | Power Cable | Edison plug to Seetronic Powerkon IP65 | | Cable Length | Power: 5' (1.5 m) | | Power Connectors | Input: Seetronic Powerkon IP65 | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 651 W, 5.51 A @ 120 V, 60 Hz
629 W, 3.03 A @ 208 V, 60 Hz
609 W, 2.53 A @ 230 V, 50 Hz | | | | Certifications | CE, MET | | Rating | IP20, dry location | | Housing Material | High-impact flame-retardant polymer | | Dimensions | 12.72 x 9.17 x 18.54" (32.3 x 23.3 x 47.1 cm) | | Weight | 32.8 lb (14.8 kg) | | | | Package Weight | 40.5 lb | | Box Dimensions (LxWxH) | 21.0 x 16.0 x 14.0" |
