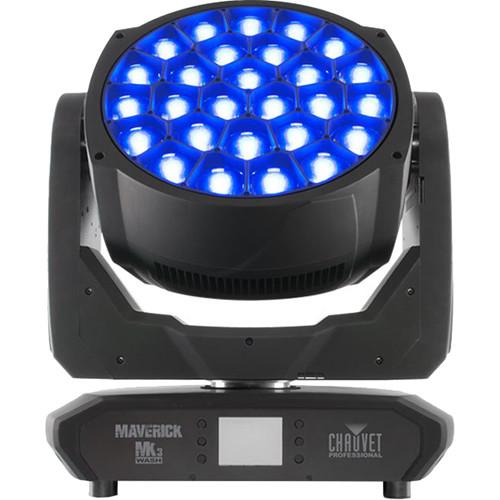

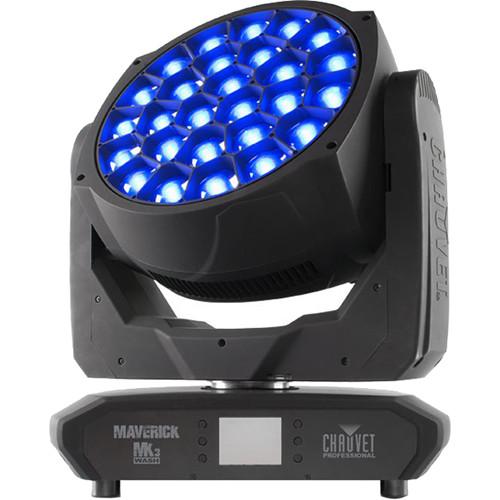

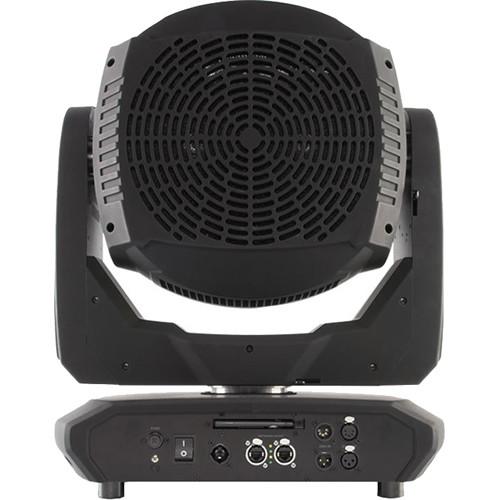

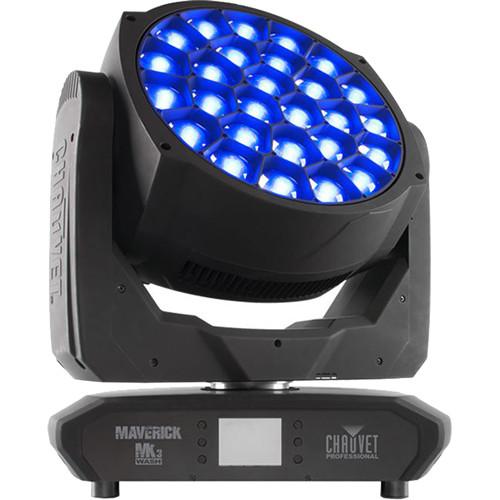

User Manual for CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW LED Light Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

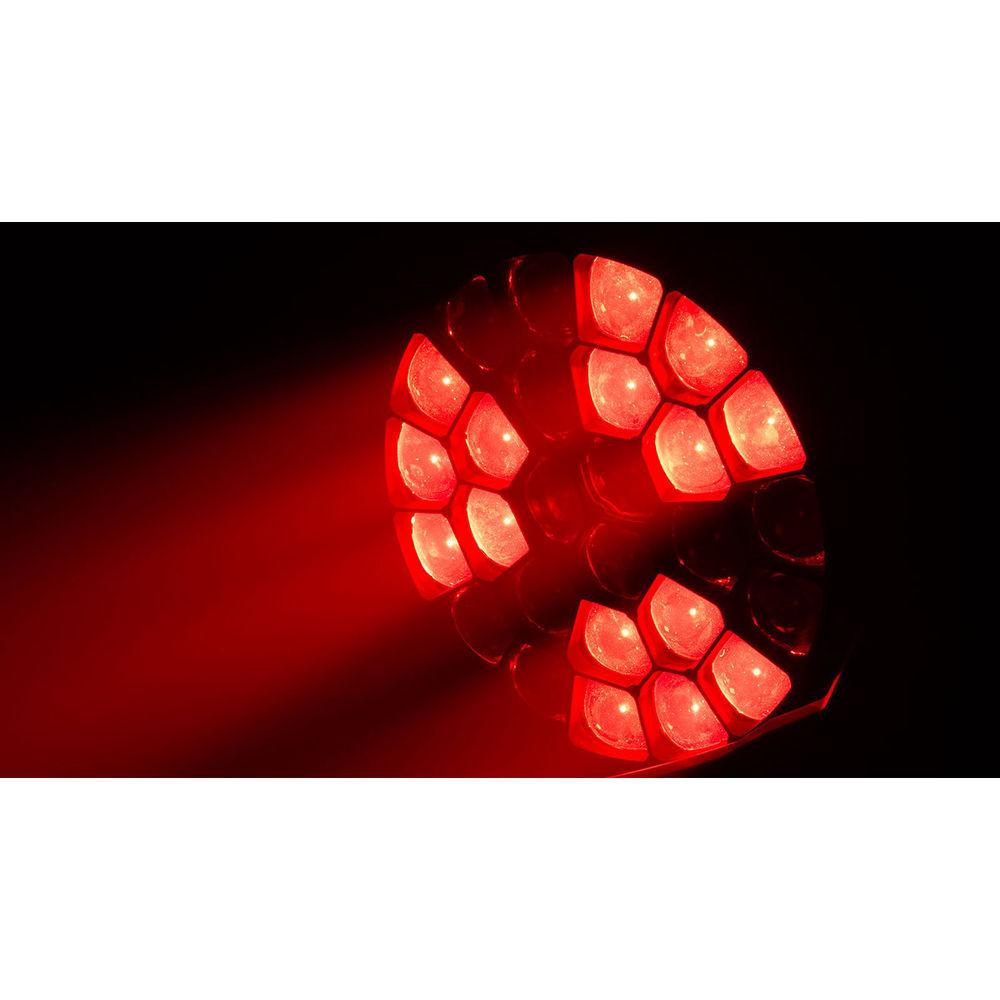

Product description The Maverick MK3 Wash RGBW LED Light Fixture from Chauvet is powered by 27 (40W) Osram RGBW LEDs and features a built-in virtual gobo wheel with background colors for enhanced atmospheric effects. The fixture features Pixel mapping effects, built-in color macros and gobos, and CTO color mixing option. It also comes with control options such as DMX, sACN, Art-Net, and Kling-Net or WDMX. The fixture can also receive Art-Net or sACN in, and send DMX out. - Fully featured RGBW LED wash fixture with pixel mapping and zoom
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
- Built-in colors for quick design possibilities
- Precise movement of pan, tilt, and zoom
- DMX, WDMX, sACN, Art-Net, and Kling-Net control for full flexibility
- RDM Enabled for remote addressing and trouble shooting
- Converts TCP/IP to DMX for shorter data cable runs
- 7 to 45° zoom range for variable beam sizes
- True 1 compatible power input
- Battery backup touchscreen display with auto-rotate feature depending on fixture orientation
- Color temperature presets
UPC: 781462216610 In the Box CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW LED Light Fixture Seetronic Powerkon IP65 Power Cord Omega Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Maverick MK3 Wash RGBW LED Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Maverick MK3 Wash Specs | | | Light Source | 27 x 40 W LEDs (quad-color RGBW), 2.6 A
Life Expectancy: 50,000 hours | | Color Temperature | 2800 to 10,000K | | Beam Angle | 5 to 29° | | Field Angle | 7 to 45° | | Zoom Angle | 7 to 45° | | Illuminance | 7°: 89,200 lux at 16.4' / 5 m
45°: 2814 at 16.4' / 5 m | | PWM Frequency | 600, 1200, 2000, 4000, 6000, and 15,000 Hz | | | | Pan & Tilt | 540°/270° | | Pan & Tilt Range | Pan: 540°, 360°, 180°
Tilt: 270°, 180°, 90° | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Zoom | Motorized | | Strobe Rate | 0 to 20 Hz | | Dimmer Curves | 4 | | | | Power Connections | Edison plug to Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Data | Data Connectors: 3- and 5-pin XLR | | Cable Length | 5' (1.5 m) | | | | Control Protocol | Art-Net, Kling-Net, sACN, DMX, W-DMX | | DMX Channels | Single Mode: 20, 129, 243, or 297
Dual Mode: 9, 21, 27 (Function), 81, 108, 216 (Pixel)
| | Channels | Art-Net Single Mode: 21, 129, 243, or 297
Art-Net Dual Mode: 9, 21, 27 (Function)
Art-Net Dual Mode : 81, 108, 216 (Pixel) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 1120 W, 9.51 A at 120 V, 60 Hz
1100 W, 5.35 A at 208 V, 60 Hz
1120 W, 4.84 A at 230 V, 50 Hz | | | | Certifications | CE, MET | | IP Rating | IP20, dry location | | Temperature | -4 to 113°F (-20 to 45°C) | | Housing Material | High-impact flame-retardant polymer | | Dimensions | 18.7 x 11.49 x 22.93" (459 x 292 x 583 mm) | | Weight | 68.2 lb (31 kg) |
