User Manual for CHAUVET PROFESSIONAL Maverick Storm 1 Wash Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Maverick Storm 1 Wash
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Maverick Storm 1 Wash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

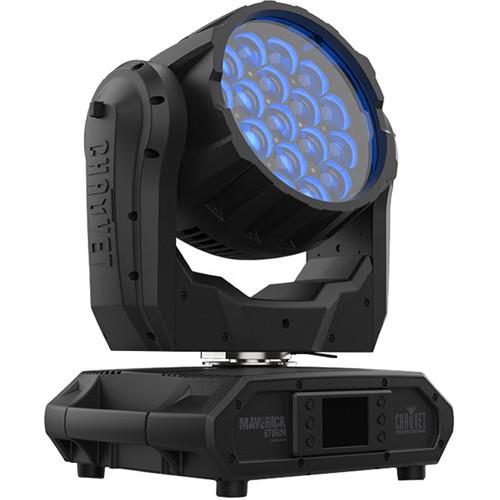

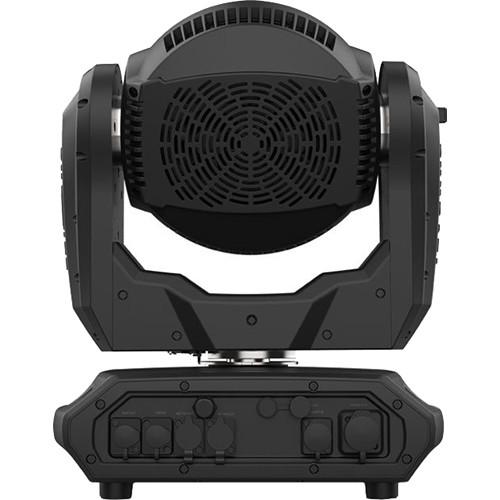

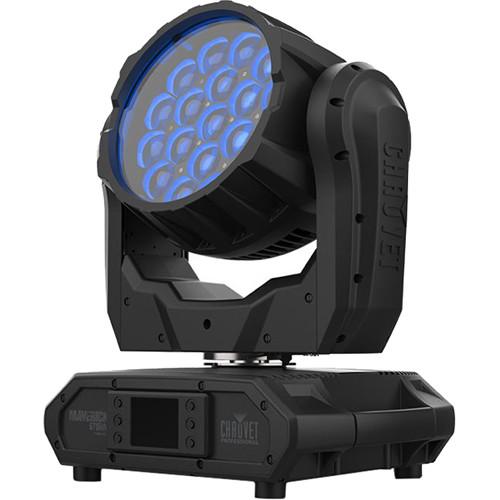

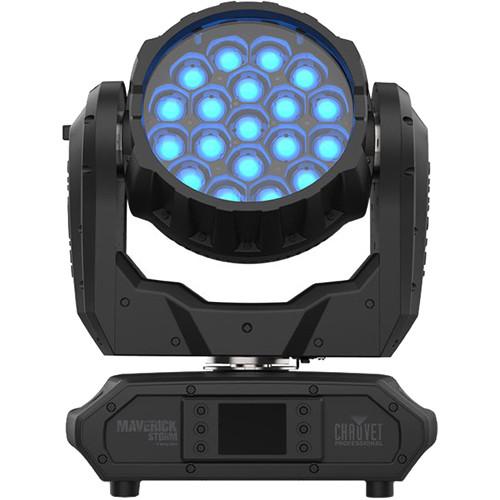

Product description The Maverick Storm 1 Wash Fixture from CHAUVET PROFESSIONAL is a 19-LED IP65-rated RGBW Osram LED moving head fixture. It has an output of over 6000 lumens and is designed for audience and aerial washing, even at large venues. Pixel-mapping effects and an 11-42° zoom range add to the unit's versatility. A virtual gobo wheel with background colors creates an array of immersive atmospheric effects. This fixture features a compact and rugged die-cast aluminum housing. It features 16-bit dimming and can be controlled via DMX, W-DMX, sACN, and Art-Net. - 16-bit dimming on master dimmer as well as individual colors for smooth control of fades
- Built-in colors for quick design possibilities
- Precise movement of pan, tilt, and zoom
- Quiet operation for a wide range of installation situations, both indoor and outdoor
- DMX, W-DMX, SACN, Art-Net, and Kling-Net control for full flexibility
- RDM (remote device management) enabled for remote addressing and troubleshooting
- TRUE1 compatible power input
- Battery backup display with auto rotate depending on fixture orientation
- Three setup menu presets and preset sync for cross loading to multiple like-fixtures for easy shop setup
In the Box CHAUVET PROFESSIONAL Maverick Storm 1 Wash Light Seetronic Powerkon IP65 Power Cord Omega Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Maverick Storm 1 Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Maverick Storm 1 Wash Specs | | | Light Source | 19 LEDs (Quad-Color RGBW) 20 W, 1.3 A, 50,000 Hours Life Expectancy | | Color Temperature | 2800 to 10,000K | | Beam Angle | 7 to 27° | | Field Angle | 11 to 42° | | Zoom Angle | 11 to 42° | | Lumen Output | 6000 lumens | | Illuminance | 7°: 11,032 lux at 16.4' / 5 m
42°: 832 lux at 16.4' / 5 m | | | | Pan & Tilt | 540° / 270° | | Pan & Tilt Range | 180°, 360°, 540° Pan
90°, 180°, 270° Tilt | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Zoom | Motorized | | Strobe Rate | 0 to 27 Hz | | Standalone Color Mixing | No | | Color Temperature Presets | Yes | | | | Power Connection Type | Edison Plug to Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Data Connectors | 5-Pin XLR, IP Rated
RJ45 Neutrik, IP Rated Input/Output | | Cable Length | 5' / 1.5 m (Power) | | | | Control Protocol | Art-Net, sACN, Kling-Net, RDM, DMX, W-DMX | | Channels | DMX Channels Single Mode: 20, 96, 178, 216
DMX Channels Dual Mode - Function: 8, 20, 26
DMX Channels Dual Mode - Pixel: 57, 76, 152
Art-Net Channels Single Mode: 20, 96, 178, 216
Art-Net Channels Dual Mode - Function: 8, 20, 26
Art-Net Channels Dual Mode - Pixel: 57, 76, 152 | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 3 Units at 120 V
6 Units at 208 V
7 Units at 230 V | | Power and Current | 443 W, 3.75 A at 120 V, 60 Hz
433 W, 2.21 A at 208 V, 60 Hz
430 W, 1.91 A at 230 V, 50 Hz | | | | Exterior Color | Black | | Housing Material | High-Impact Flame-Retardant Polymer | | Dimensions | 12.5 x 16.3 x 18.77" / 319 x 414 x 477 mm | | Weight | 59 lb / 27 kg |
