User Manual for CHAUVET PROFESSIONAL Ovation B-1965FC Full Color LED Batten Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation B-1965FC Full Color
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Ovation B-1965FC Full Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

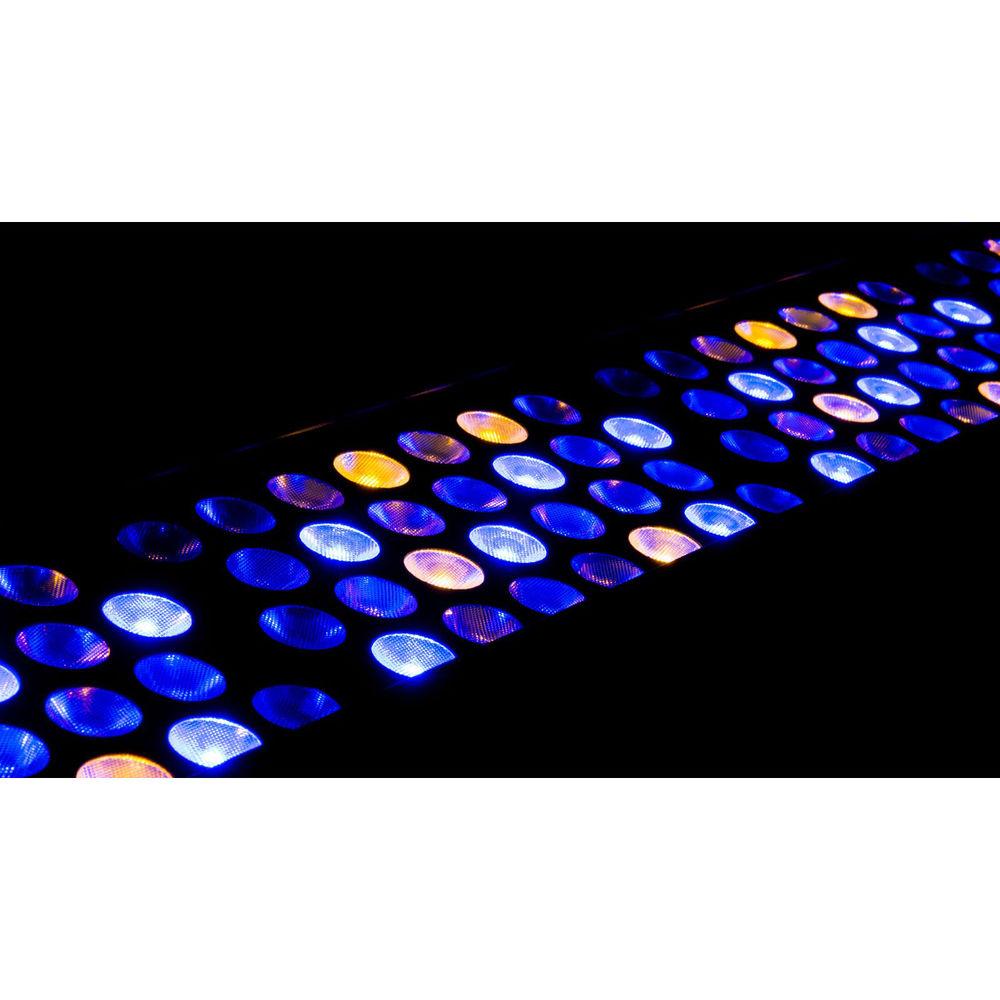

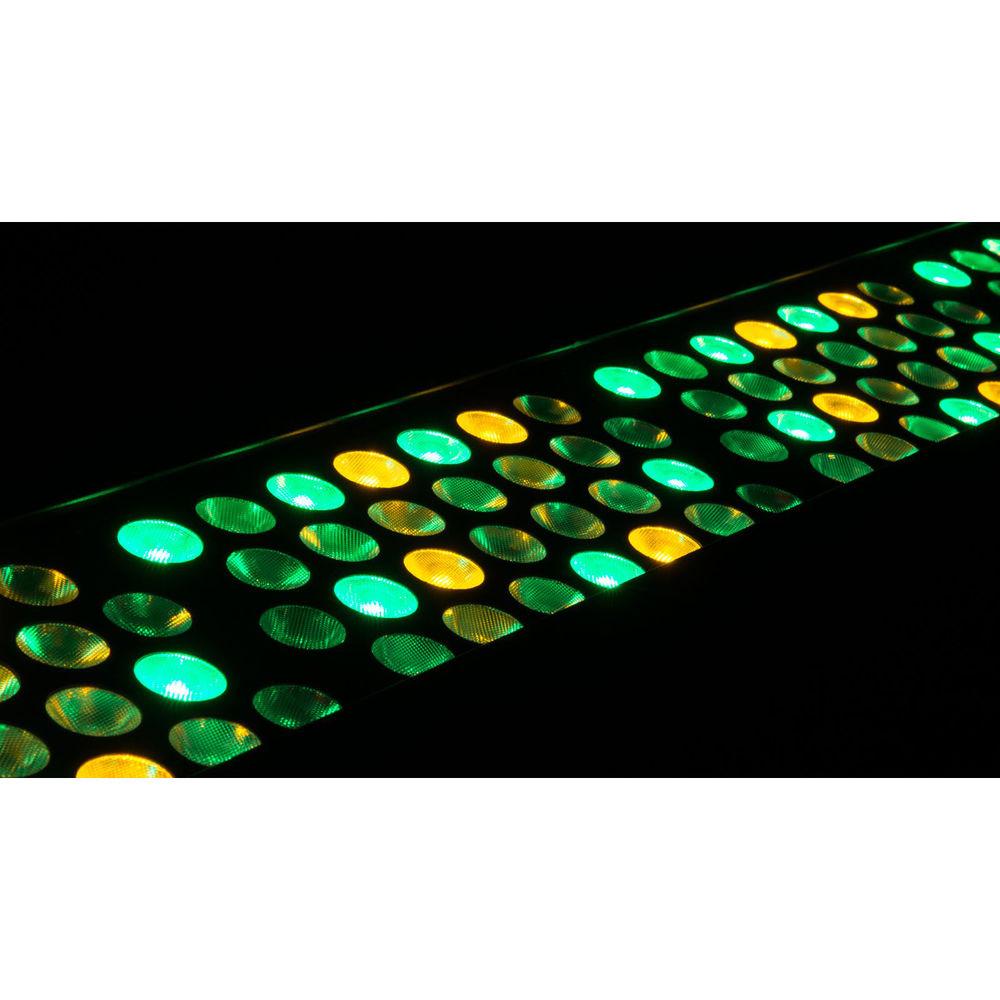

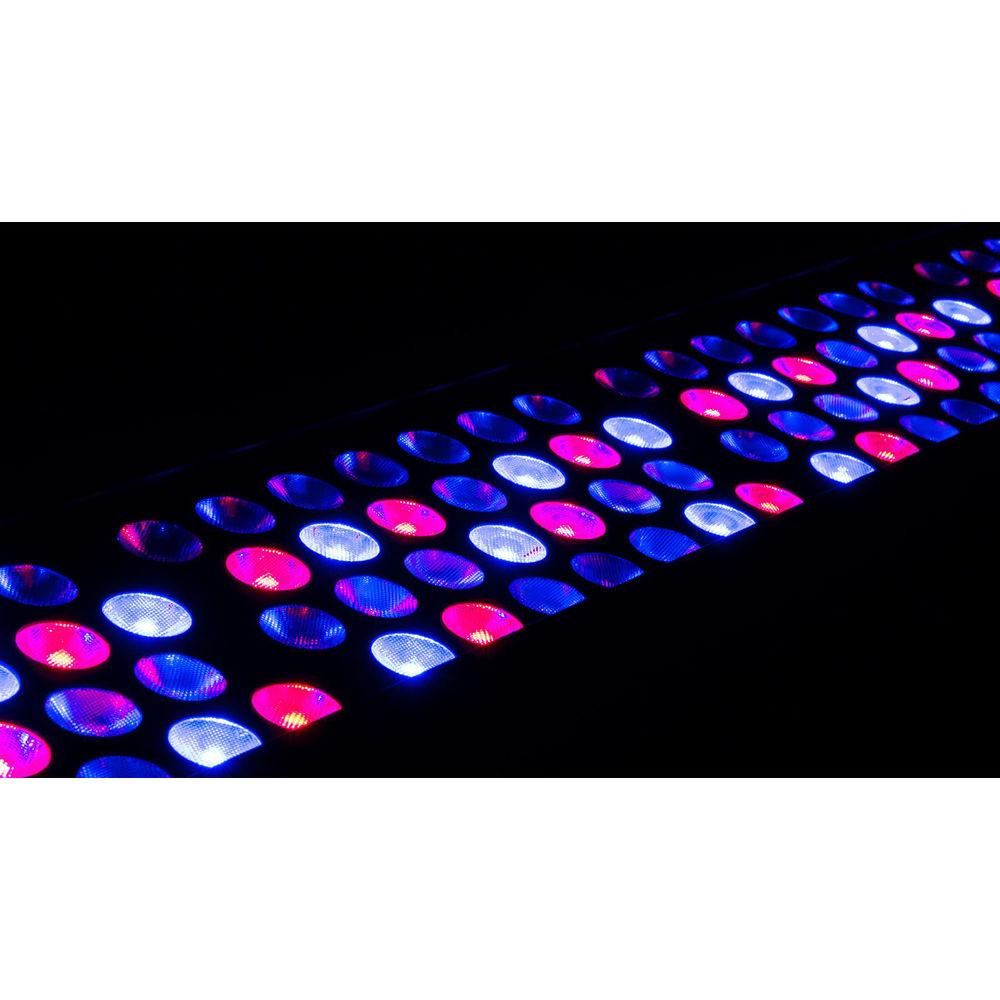

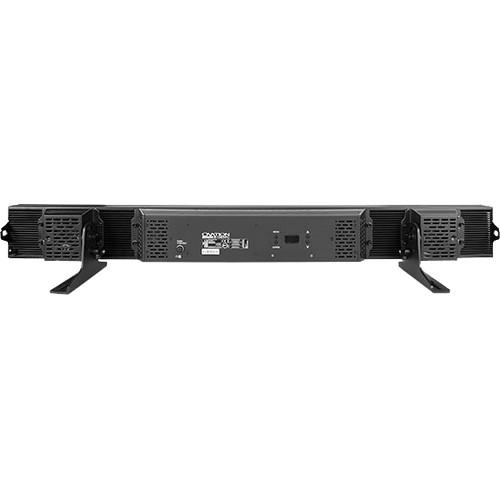

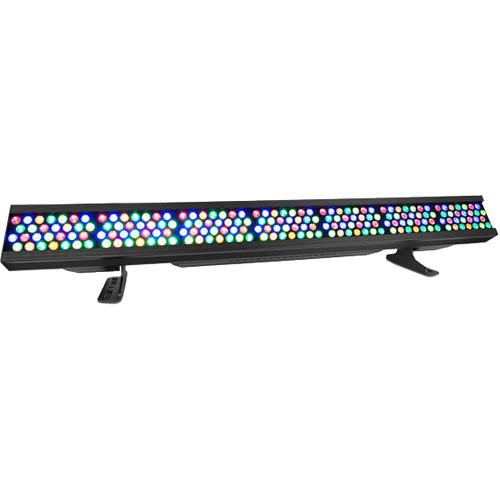

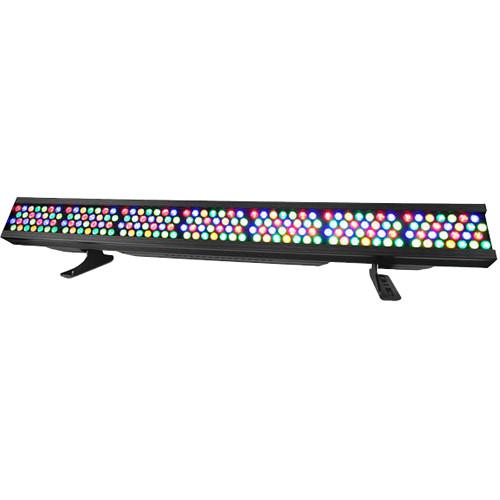

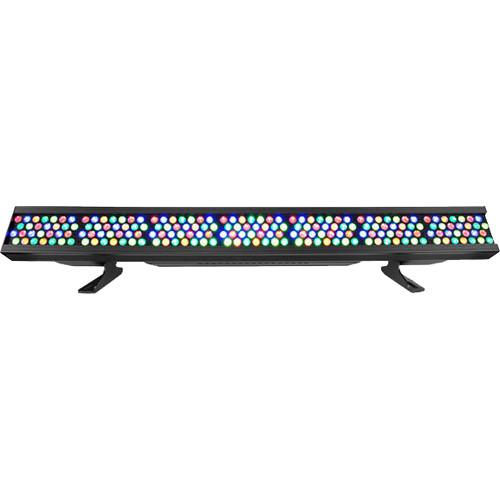

Product description The black Ovation B-1965FC Full Color LED (RGBAL) Batten Fixture from Chauvet makes use of the extended color capabilities and enhanced color renderings of the RGBA-Lime color mixing system to offer an ideal 3.9' batten for stage and theatre lighting. It responds to RDM, Art-Net, and sACN in addition to standard DMX control. Up to 7 sections can be controlled individually for maximum flexibility. An easily accessible Virtual Color Wheel and Color Temperature Presets make programming a breeze. It comes with a holographic filter that easily locks into place for enhanced wall or cyc grazing ability. - Full color LED (RGBAL) batten fixture for theatre, film, and production
- Theatre-ready with 16-bit dimming of master dimmer and individual colors
- Multiple control personalities for complex programming schemes up to 7 sections of control
- Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing
- Virtual Color wheel with color matched to popular gel colors
- Art-Net, sACN, 3- and 5-pin DMX, and RDM (Remote Device Management) for added control flexibility
- Neutrik powerCON and Amphenol etherCON compatible connections for power and data linking
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Nearly silent operation for use in studio and theater applications
- Color temperature presets
- Built-in automated programs
In the Box CHAUVET PROFESSIONAL Ovation B-1965FC Full Color LED (RGBAL) Batten Fixture Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation B-1965FC Full Color LED Batten Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL B-1965FC Specs | | | Light Source | 196 LEDs (42 red, 42 green, 42 blue, 28 amber, 42 lime) 3 W (650 mA)
50,000 hours life expectancy | | Color Temperature | 2800 to 10,000K | | CRI | 80 (3200K) | | Optics | Installed Optics: 20° | | Beam Angle | Beam Angle (Horizontal): 24°
Beam Angle (Vertical): 21°
Beam Angle (Horizontal w/Filter): 44°
Beam Angle (Vertical w/Filter): 22° | | Field Angle | Horizontal: 41°
Vertical: 37°
Horizontal w/Filter): 75°
Horizontal w/Filter): 41° | | Illuminance | 5000 lux at 16.4' / 5 m
With Filter: 1720 lux at 16.4' / 5 m | | PWM Frequency | 600, 1200, 2000, 4000, 6000, 25,000 Hz | | | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 30 Hz | | Dimmer Mode | 4 | | | | Power Connections | Edison (local) plug to Neutrik powerCON | | Power Input | Neutrik powerCON | | Power Output | Neutrik powerCON | | Data | Data Connectors: 3- and 5-pin XLR, Amphenol etherCON compatible | | Cable Length | 5' (1.5 m) | | | | Control Protocol | Art-Net, DMX, RDM, sACN | | DMX Channels | 1 Cell: 3, 3, 4, 5, 8, 9, 10, 10, 17
7 Cell: 21, 28, 35, 45, 52, 59, 70, 96 | | Channels | Art-Net Channels: 1 Cell: 3, 3, 4, 5, 8, 9, 10, 10, 17
7 Cell: 21, 28, 35, 45, 52, 59, 70, 96 | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 3 units at 120 V
6 units at 208 V
7 units at 230 V | | Power and Current | 422 W, 3.52 A at 120 V, 60 Hz
423 W, 2.03 A at 208 V, 60 Hz
423 W, 2.03 A at 208 V, 60 Hz
Resting
13 W, 0.15 A at 120 V, 60 Hz
12 W, 0.14 A at 208 V, 60 Hz
11 W, 0.13 A at 230 V, 50 Hz | | | | Certifications | CE, MET | | IP Rating | IP20, dry location | | Temperature | -4 to 113°F (-20 to 45°C) | | Housing Material | Aluminum die-cast | | Dimensions | 48.43 x 8.27 x 8.15" (1230 x 210 x 207 mm)
Accessory Holder / Gel Frame Size: 47.5 x 3.66" (1206 x 93 mm) | | Weight | 32 lb (14.5 kg) |
