User Manual for CHAUVET PROFESSIONAL Ovation B-2805FC RGBA-L Batten-Style Light Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation B-2805FC RGBA-L Batten-Style
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Ovation B-2805FC RGBA-L Batten-Style contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

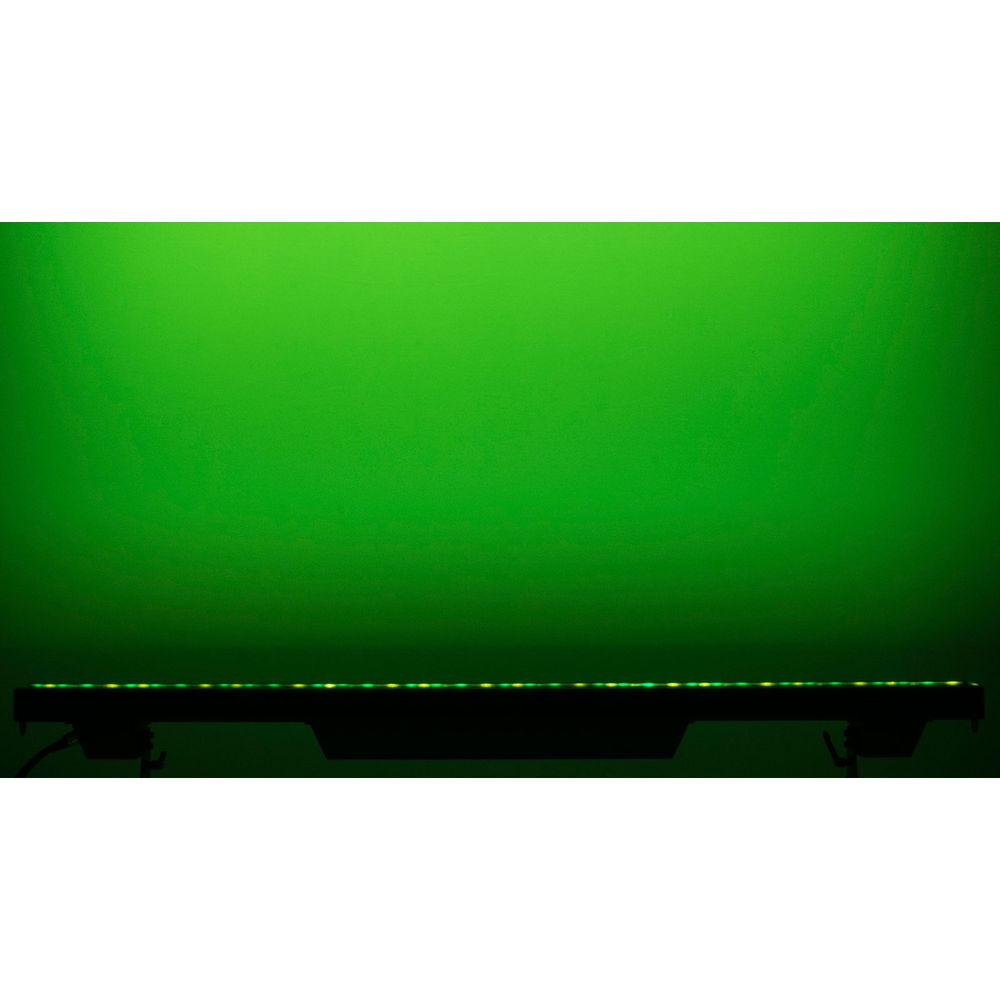

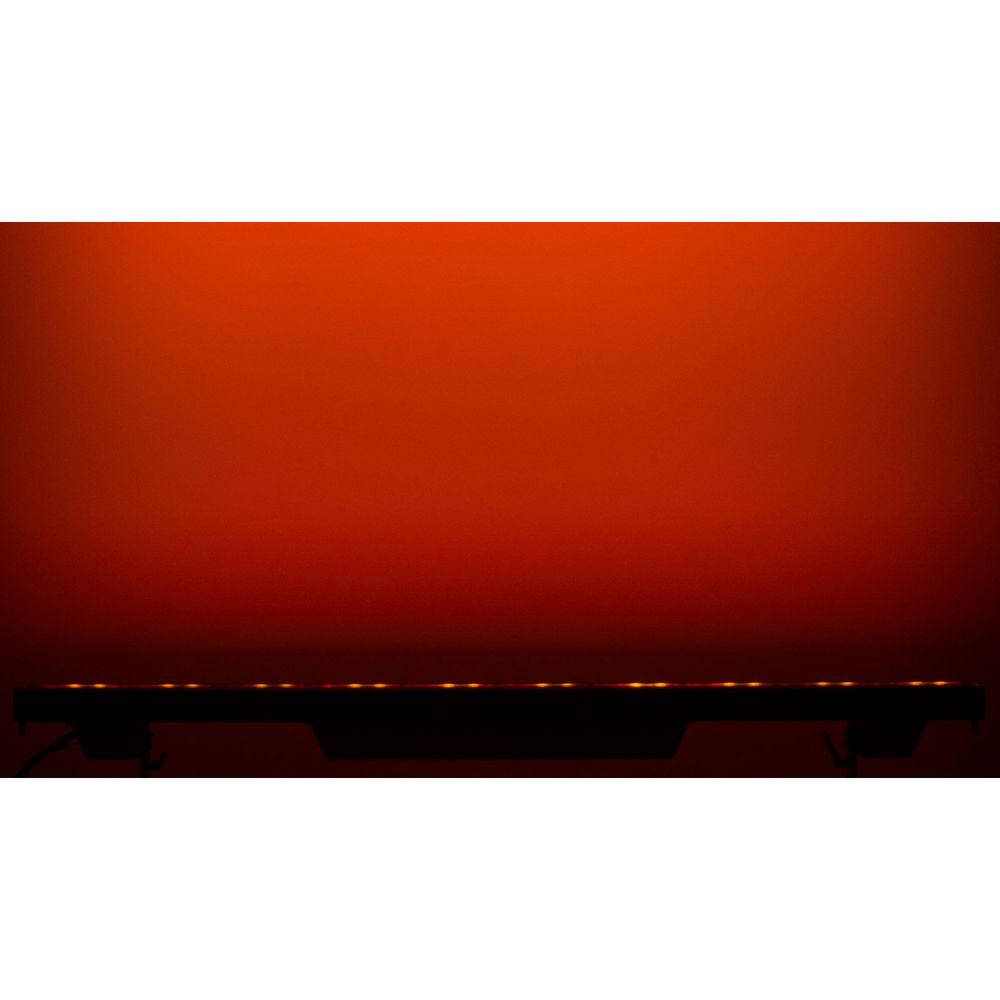

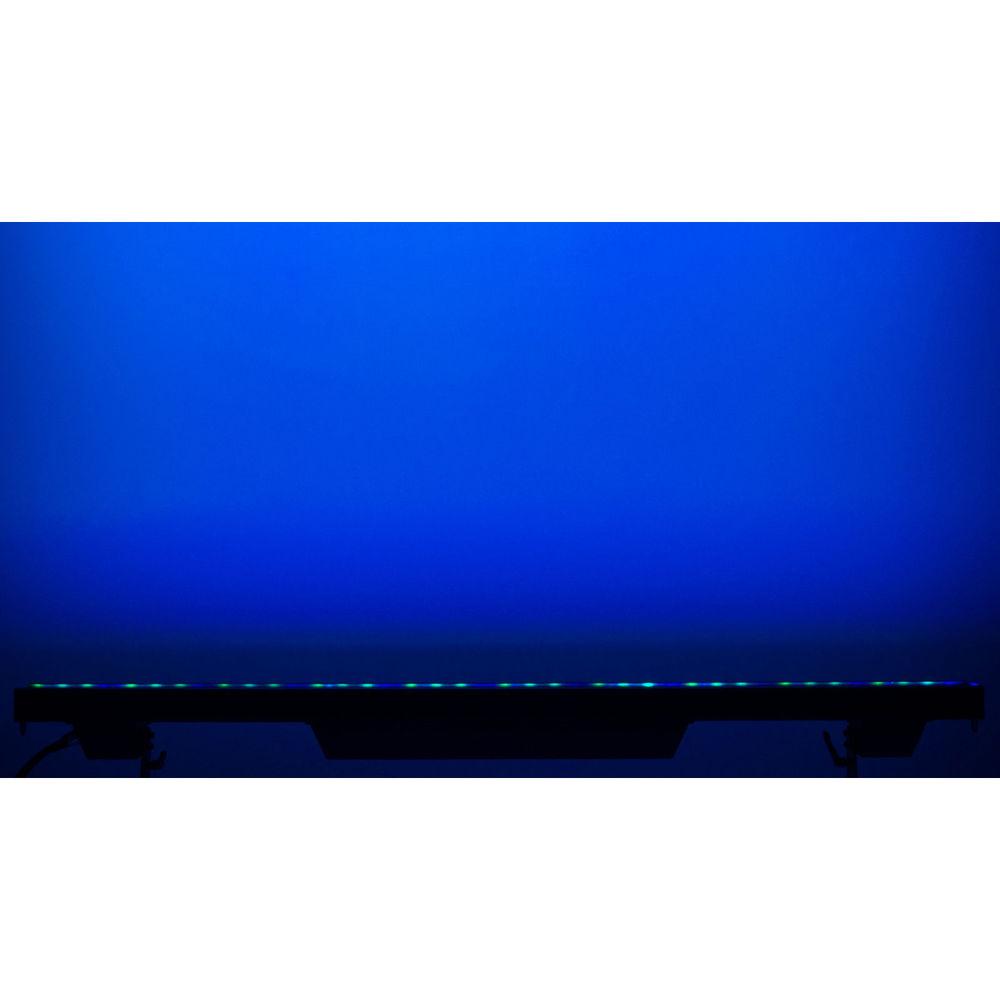

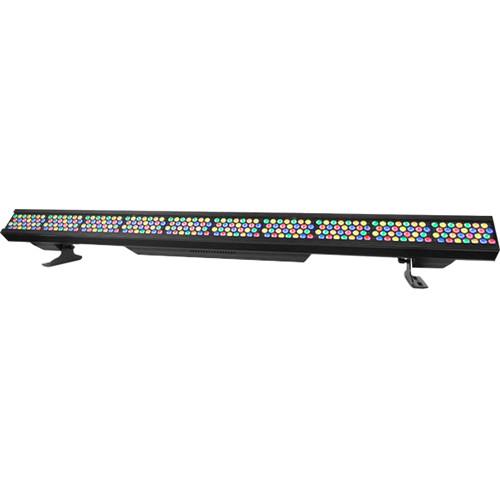

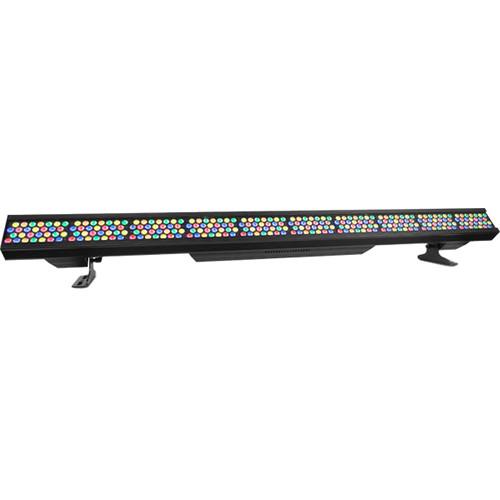

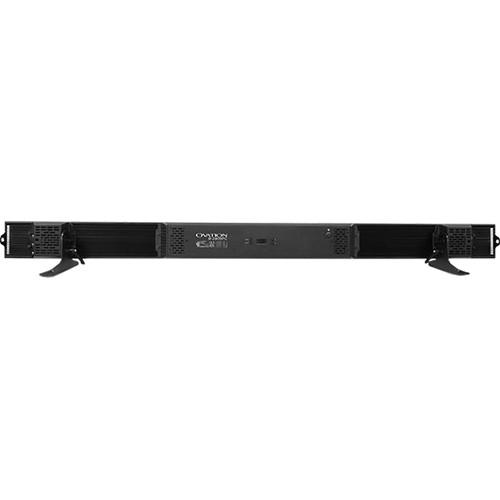

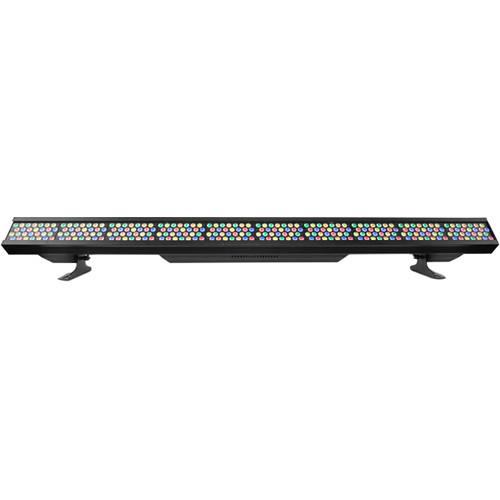

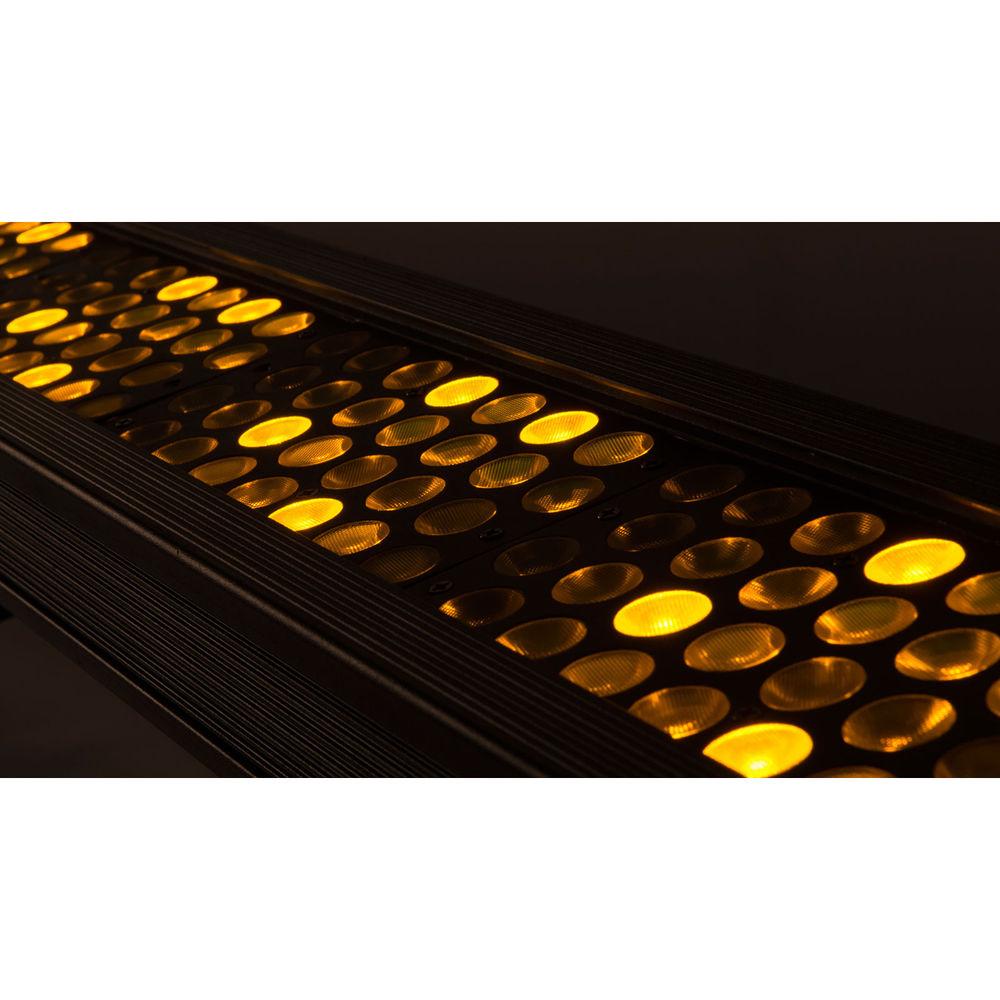

Product description The Ovation B-2805FC from Chauvet is a batten-style light fixture featuring an RGBA-Lime color system, ten sections of control, and support for DMX, RDM, Art-Net, and sACN for programming and networking options. It also features a virtual color wheel and color temperature presets. This compact yet powerful fixture not only makes a remarkable batten light, but also a standard wash as well. A holographic filter is included and locks into place so the fixture can be used in any orientation without worrying about the filter sliding out. -
- Full-color LED (RGBAL) batten-style fixture for theater, film, and production
- Theater-ready with 16-bit dimming of master dimmer and individual colors
- Multiple control personalities for complex programming schemes up to 10 sections of control
- Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing
- Virtual color wheel with colors matched to popular Rosco Gel colors
- Art-Net, sACN, 3- and 5-pin DMX, and RDM (Remote Device Management) for added control flexibility
- Neutrik powerCON, and Amphenol etherCON compatible connections for power and data linking
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Nearly silent operation for use in studio and theater applications
- Standalone color mixing
UPC: 781462215576 In the Box CHAUVET PROFESSIONAL Ovation B-2805FC RGBA-L Batten-Style Light Fixture Neutrik powerCON Power Cord Wall Washing Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation B-2805FC RGBA-L Batten-Style Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

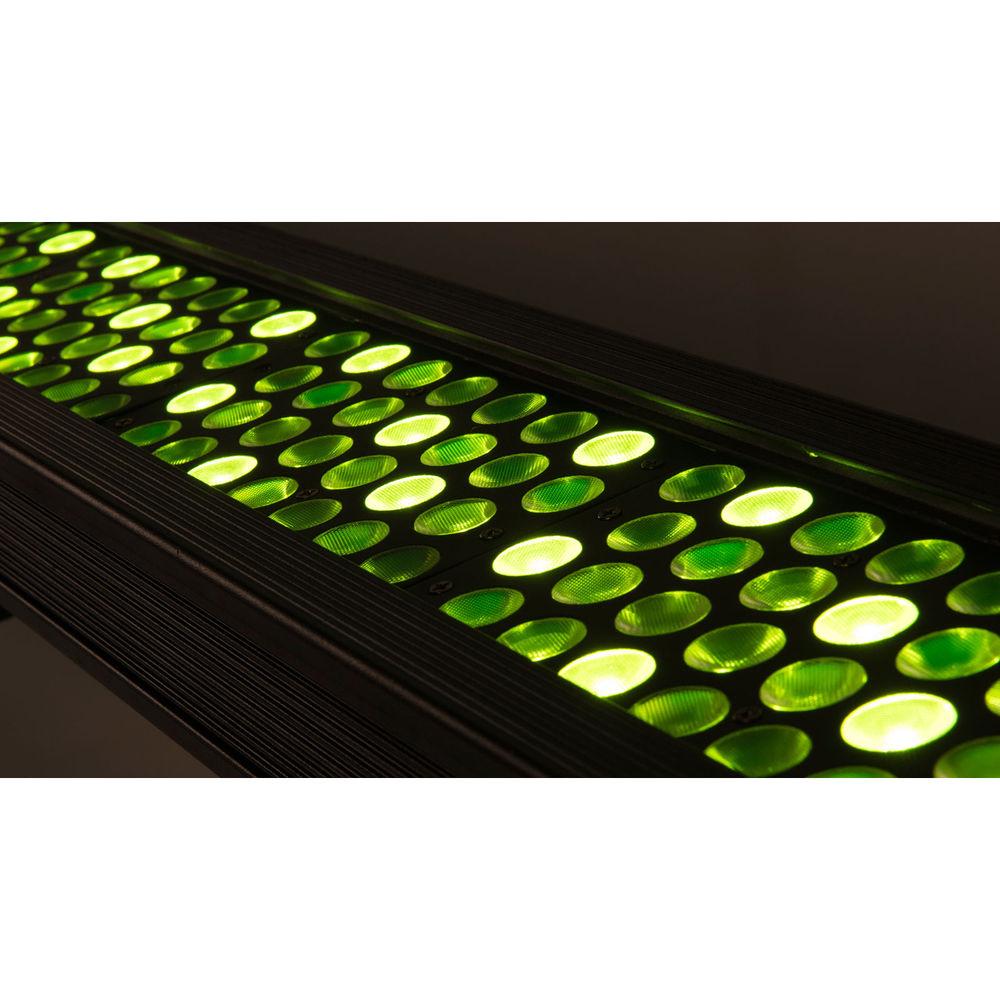

Technical parametersCHAUVET PROFESSIONAL B-2805FC Specs | Light Source | 280 x R/G/B/A/L LEDs, 8 W (740 mA)
(60 x red, 60 x green, 60 x blue, 40 x amber, 60 x lime) | | Life Expectancy | 50,000 hours | | Illuminance | No Filter: 5586 lux @ 16.4' / 5 m
Filter: 2320 lux @ 16.4' / 5 m | | Beam Angle | Horizontal: 25° (52° with filter)
Vertical: 20°
| | Field Angle | Horizontal: 42° (83° with filter)
Vertical: 40° | | Optics | 20° (installed) | | Color Mixing | RGB, RGBA, RGBAL, RGBAL (16-bit), Standalone | | Color Temperature | 2800 to 6500K | | Color Temperature Presets | Yes | | Dimmer | Electronic | | Dimmer Curves | 4 x curves | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 30 Hz | | Built-In Programs | Yes | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25000 Hz | | Zone Control | 1, 2, 3, 5, or 10 zones | | Protocols | Art-Net, DMX, RDM, sACN | | DMX Channel Modes | 32 x Modes:
1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 channels
2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 channels
5 Cell: 15, 20, 25, 33, 38, 43, 50, 70 channels
10 Cell: 30, 40, 50, 63, 73, 83, 100, 135 channels | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | Data Connector | Input: Amphenol etherCON
Output: Amphenol etherCON | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Power Input: Neutrik powerCON
Power Output: Neutrik powerCON | | Power Linking | 120 V: 2 x units
208 V: 3 x units
230 V: 4 x units | | Power Consumption | 120 V, 60 Hz: 620 W, 5.16 A
208 V, 60 Hz: 601 W, 2.98 A
230 V, 50 Hz: 597 W, 2.76 A | | Power Cable | Edison plug to Neutrik powerCON | | Power Cable Length | 5' / 1.5 m | | IP Rating | IP20 | | Certifications & Approvals | CE, MET | | Housing Material | Aluminum die-cast | | Dimensions | 69.0 x 8.26 x 8.13" (175 x 21.0 x 20.7 cm) | | Weight | 45.4 lb (20.5 kg) | | | | Package Weight | 51.5 lb | | Box Dimensions (LxWxH) | 72.3 x 11.1 x 9.0" |
