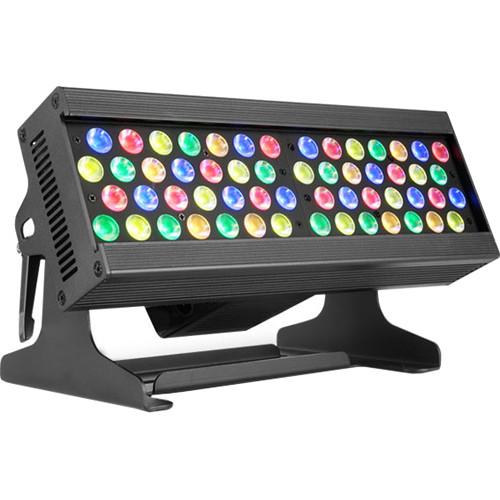

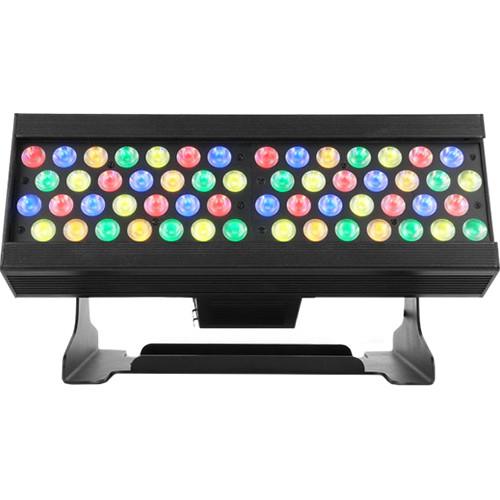

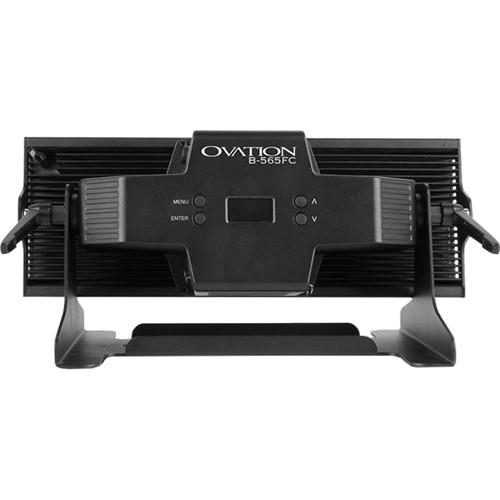

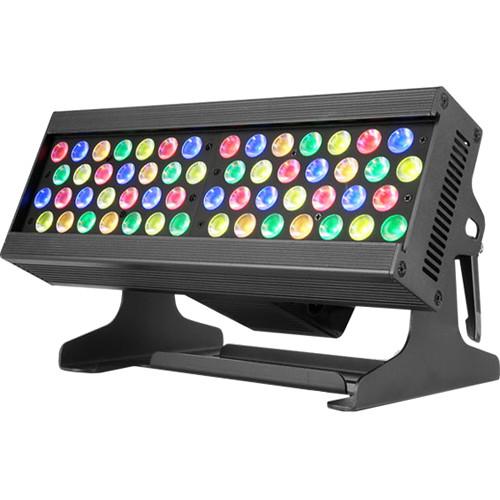

Product description The Ovation B-565FC from Chauvet is a batten-style light fixture featuring an RGBA-Lime color system, two sections of control, and support for DMX, RDM, Art-Net, and sACN for programming and networking options. This compact yet powerful fixture not only makes a remarkable batten light, but also a standard wash as well. A holographic filter is included and locks into place so the fixture can be used in any orientation without worrying about the filter sliding out. -
- Full color LED (RGBAL) batten-style fixture for theater, film, and production
- Theater-ready with 16-bit dimming of master dimmer and individual colors
- Multiple control personalities with one or two sections of control
- Included holographic filter locks in place for smooth color mixing with a more elliptical wash pattern
- Virtual color wheel with color matched to popular Rosco Gel colors
- Art-Net, sACN, 3- and 5-pin DMX, and RDM (Remote Device Management) for added control flexibility
- Neutrik powerCON, and Amphenol etherCON compatible connections for power and data linking
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Nearly silent operation for use in studio and theater applications
- Standalone color mixing
In the Box CHAUVET PROFESSIONAL Ovation B-565FC RGBA-L LED Batten-Style Light Fixture Neutrik powerCON Power Cord Wall Washing Filter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation B-565FC RGBA-L LED Batten-Style Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL B-565FC Specs | Light Source | 56 x R/G/B/A/L LEDs, 8 W (740 mA)
(12 x red, 12 x green, 12 x blue, 8 x amber, 12 x lime) | | Life Expectancy | 50,000 hours | | Illuminance | 1409 lux @ 16.4' / 5 m | | Beam Angle | Horizontal: 19°
Vertical: 20° | | Field Angle | Horizontal: 37°
Vertical: 37° | | Optics | 20° (installed) | | Color Mixing | RGB, RGBA, RGBAL, RGBAL (16-bit) | | Color Temperature | 2800 to 6500K | | Color Temperature Presets | Yes | | Dimmer | Electronic | | Dimmer Curves | 4 x curves | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 30 Hz | | Built-In Programs | Yes | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz | | Protocols | Art-Net, DMX, RDM, sACN | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin | | Data Connector | Input: Amphenol etherCON
Output: Amphenol etherCON | | DMX Channel Modes | 16 x Modes:
1-Cell: 3, 4, 5, 8, 9, 10, 10, 17
2-Cell: 6, 8, 10, 15, 17, 19, 20, 31 | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Power Input: Neutrik powerCON
Power Output: Neutrik powerCON | | Power Linking | 120 V: 13 units
208 V: 22 units
230 V: 23 units | | Power Consumption | 120 V, 60 Hz: 125 W, 1.04 A
208 V, 60 Hz: 120 W, 0.61 A
230 V, 50 Hz: 119 W, 0.51 A | | Power Cable | Edison plug to Neutrik powerCON | | Power Cable Length | 5' / 1.5 m | | Certifications & Approvals | CE, MET
IP Rating: IP20, dry location | | Housing Material | Aluminum die-cast | | Dimensions | 14 x 7.5 x 8.1" / 36 x 19 x 21 cm | | Weight | 12 lb (5.3 kg) |
