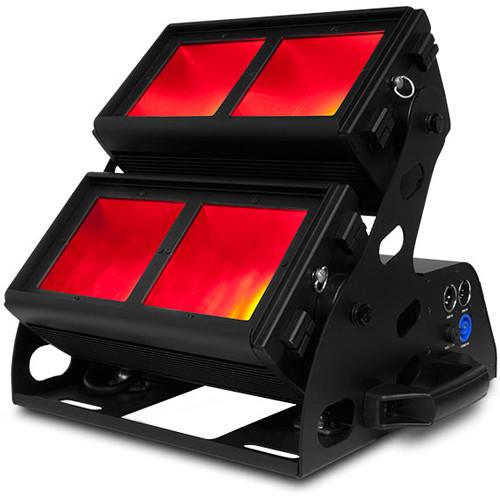

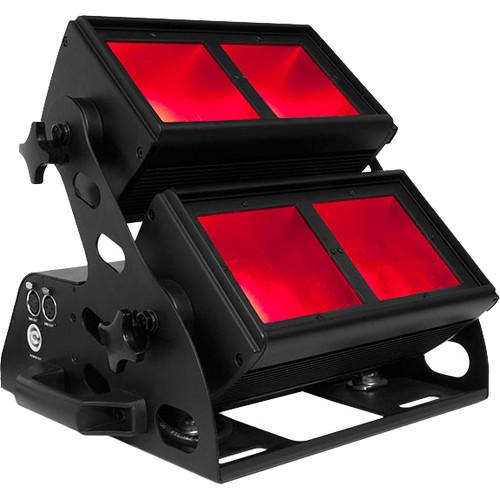

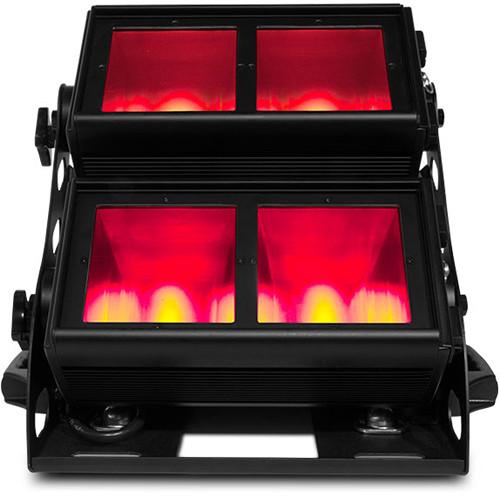

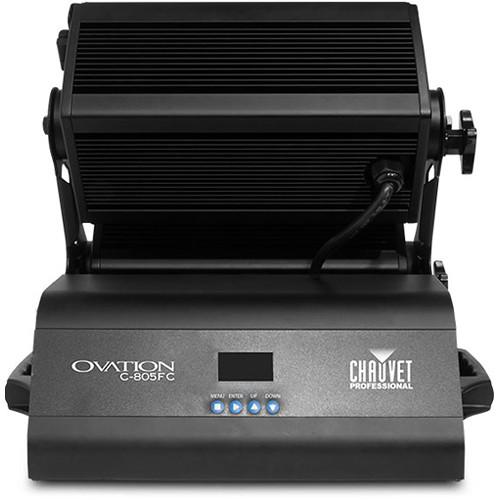

Product description The Ovation C-805FC from CHAUVET PROFESSIONAL uses its RGBA-Lime color palette to render nearly any color with tremendous realism and saturation. Its superb optics ensure an even output. Setup is easier than ever with the addition of RDM, adjustable PWM, and an easy to navigate OLED full-text display. - Display a full spectrum of hues with RGBAL LEDs for theater, film, and production
- Theatre-ready with 16-bit dimming of master dimmer and individual colors
- Better coverage with two individually adjustable heads, gives the ability to project split colors
- Compact cyclorama wash lighting fixture
- Flat, even field of light with superior color mixing
- Virtual color wheel with color matched to popular Rosco gel colors
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Silent operation for use in studio and theatre applications
UPC: 781462215668 In the Box CHAUVET PROFESSIONAL Ovation C-805FC RGBA+Lime LED Light Neutrik powerCON Power Cord 2 x Gel Frame 2 x Omega Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation C-805FC RGBA Lime LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL C-805FC Specs | | | Light Source | 80 LEDs (20 red, 20 green, 20 blue, 12 amber, 8 lime)
2 to 4 W, 820 mAh | | Life Expectancy | 50,000-hour life expectancy | | Color Temperature | 2800 to 10,000K | | CRI | 80 @ 3200K | | Beam Angle | Top Pod: Horizontal: 41° / Vertical: 57°
Bottom Pod: Horizontal: 37° / Vertical: 54°
Both Pods: Horizontal: 40° / Vertical: 57° | | Field Angle | Top Pod: Horizontal: 64° / Vertical: 80°
Bottom Pod: Vertical: 78°
Both Pods: Horizontal: 67° / Vertical: 81° | | Illuminance | Top Pod: 175 lux @ 16.4'
Bottom Pod: 169 lux @ 16.4'
Both Pods: 310 lux @ 16.4' | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000 Hz | | | | Tilt | ± 30° | | Dimmer | 5-modes, electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 20 Hz | | | | Power Connection Type | Edison (local) plug to Neutrik powerCON | | Power Input/Output | Neutrik powerCON | | Data Connectors | 3-pin XLR
5-pin XLR | | Power Cable Length | 5' / 1.5 m | | | | Control Protocol | DMX | | DMX Channels | 3, 4, 5, 6, 7, 8, 12, 18, or 24 | | Modes | 12 personalities (TOUR, TR16, ARC.1, AR1.D, ARC.2, ARC.3, ARC3.D, AR3.S, HSIC, PIXEL.1, PIXEL.3, PIXEL.16) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 9 units @ 120 V
16 units @ 208 V
17 units @ 230 V | | Power and Current | 173 W, 1.47 A @ 120 V, 60 Hz
167 W, 0.84 A @ 208 V, 60 Hz
167 W, 0.76 A @ 230 V, 50 Hz | | | | Certifications | CE, MET | | IP Rating | IP20, dry location | | Housing Material | Black aluminum die cast | | Dimensions | 15.3 x 12.2 x 11.7" / 39.0 x 31.0 x 29.8 cm
Gel Frame Size: 5.32 x 9.65" / 13.5 x 24.5 cm | | Weight | 22 lb / 10 kg | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 18.6 x 14.7 x 14.6" |
