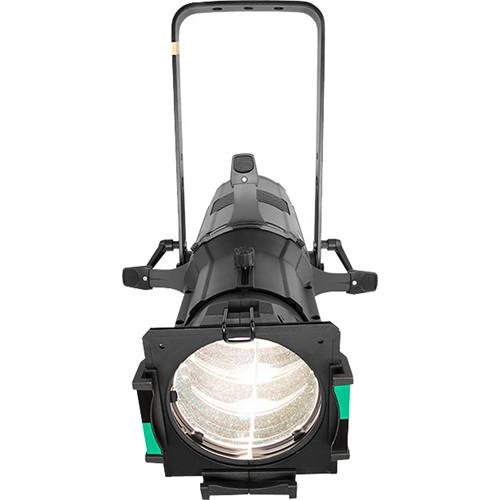

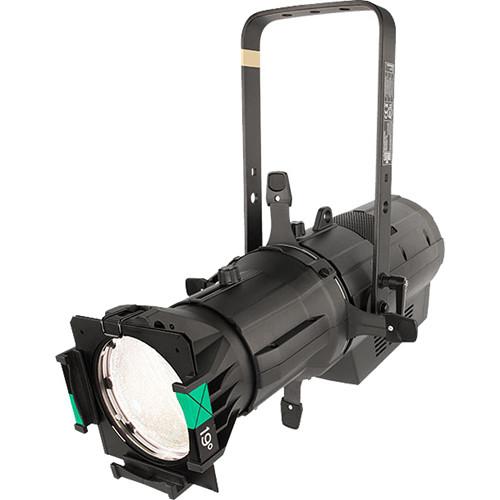

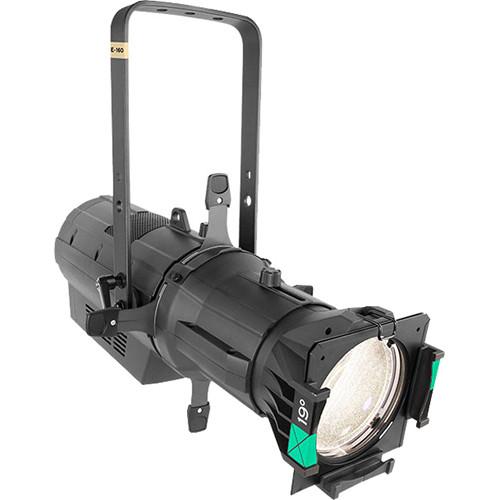

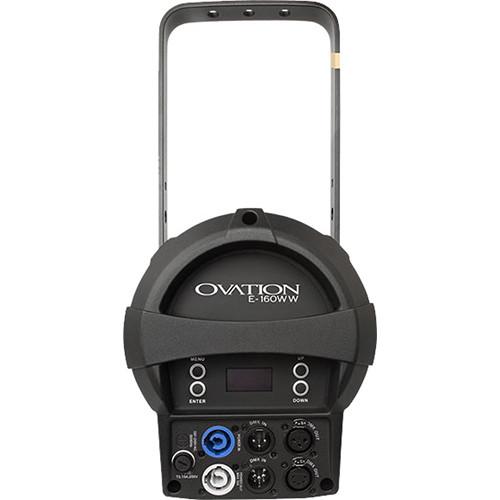

Product description The black Ovation E-160WW Warm White LED Fixture from CHAUVET PROFESSIONAL is an ellipsoidal 3031K LED fixture with a built-in dimmer and DMX control. It is designed for use in studio and theater applications. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. RDM (Remote Device Management) allows for added flexibility, and adjustable PWM (Pulse Width Modulation) helps avoid flickering on the camera. Lens tubes must be purchased separately. - Warm white ERS-style fixture with output like a tungsten 575W source
- Draws less than 100W of power
- Ultra-smooth 16-bit dimming, and 8-bit dimming curves
- Flat, even field of light for gobo projection
UPC: 781462215859 In the Box CHAUVET PROFESSIONAL Ovation E-160WW Warm White LED Fixture (3031K, No Lens Tube) 5' Neutrik powerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation E-160WW Warm White LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL E-160WW Specs | | | Light Source | 1 LED (WW) 88 W, (2.3 A), 3031K, 50,000-hour life expectancy | | Color Temperature | 3031K (at full) | | CRI | 90 | | Beam Angle | N/A | | Field Angle | N/A | | Dimming | 4 x Modes | | Illuminance | N/A | | PWM Frequency | Selectable: 600 / 1200 / 2000 / 4000 / 6000 / 25,000 Hz | | | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Zoom | Manual | | Strobe Rate | 0 to 29 Hz | | Color Temperature Presets | Yes | | | | Power Connection Type | Edison (local) plug to Neutrik powerCON | | Power Input | 1 x Neutrik powerCON | | Power Output | 1 x Neutrik powerCON | | Data Connectors | 3- and 5-pin XLR | | | | Control Protocol | DMX | | DMX Channels | 1, 2, 3, or 6 | | Modes | 4 x Personalities (1, 2, 3, 6) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 15 units at 120 V
26 units at 208 V
28 units at 230 V | | Power and Current | 103 W, 0.9 A at 120 V, 60 Hz
99 W, 0.5 A at 208 V, 60 Hz
102 W, 0.5 A at 230 V, 50 Hz | | | | Approvals | CE, MET | | IP Rating | IP20, dry location | | | | Cable Length | 5' / 1.5 m | | Dimensions | Fixture Only: 19.49 x 11.22 x 19.17" / 49.5 x 28.5 x 48.7 cm | | Weight | Fixture Only: 14.2 lb / 6.4 kg |
