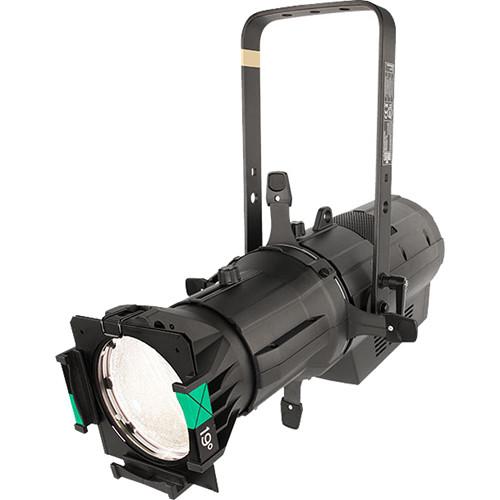

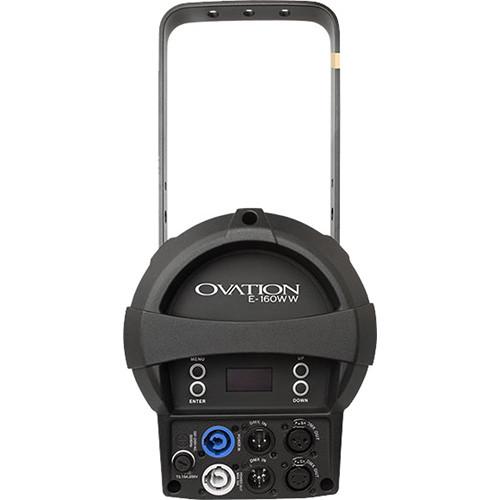

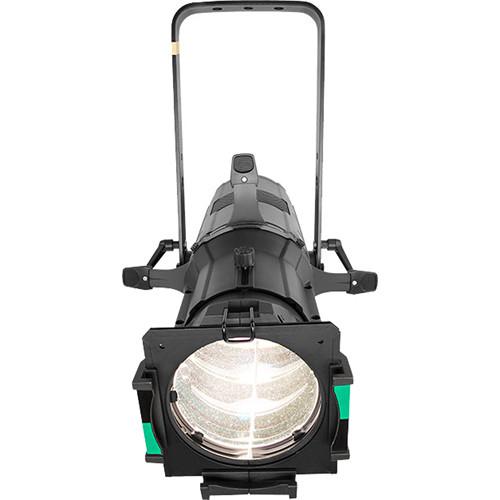

Product description The black Ovation E-160WW Warm White LED Fixture with 19° Lens from CHAUVET PROFESSIONAL is an ellipsoidal 3031K LED fixture with a built-in dimmer and DMX control. It is designed for use in studio and theater applications. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. RDM (Remote Device Management) allows for added flexibility, and adjustable PWM (Pulse Width Modulation) helps avoid flickering on the camera. - Warm white ERS-style fixture with output like a tungsten 575W source
- Draws less than 100W of power
- Ultra-smooth 16-bit dimming, and 8-bit dimming curves
- Flat, even field of light for gobo projection
In the Box CHAUVET PROFESSIONAL Ovation E-160WW Warm White LED Fixture with 19° Lens (3031K) 19° Lens 5' Neutrik powerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation E-160WW Warm White LED Fixture with 19° Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL E-160WW Specs | | | Light Source | 1 LED (WW) 88 W, (2.3 A), 3031K, 50,000-hour life expectancy | | Color Temperature | 3031K (at full) | | CRI | 90 | | Beam Angle | 12° | | Field Angle | 18° | | Dimming | 4 x Modes | | Illuminance | 6253 lux at 16.4' / 5 m | | PWM Frequency | Selectable: 600 / 1200 / 2000 / 4000 / 6000 / 25,000 Hz | | | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Zoom | Manual | | Strobe Rate | 0 to 29 Hz | | Color Temperature Presets | Yes | | | | Power Connection Type | Edison (local) plug to Neutrik powerCON | | Power Input | 1 x Neutrik powerCON | | Power Output | 1 x Neutrik powerCON | | Data Connectors | 3- and 5-pin XLR | | | | Control Protocol | DMX | | DMX Channels | 1, 2, 3, or 6 | | Modes | 4 x Personalities (1, 2, 3, 6) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Linking | 15 units at 120 V
26 units at 208 V
28 units at 230 V | | Power and Current | 103 W, 0.9 A at 120 V, 60 Hz
99 W, 0.5 A at 208 V, 60 Hz
102 W, 0.5 A at 230 V, 50 Hz | | | | Approvals | CE, MET | | IP Rating | IP20, dry location | | | | Cable Length | 5' / 1.5 m | | Dimensions | Fixture Only: 19.49 x 11.22 x 19.17" / 49.5 x 28.5 x 48.7 cm
With Lens: 32.87 x 14.61 x 14.61" / 83.5 x 37.1 x 37.1 cm | | Weight | Fixture Only: 14.2 lb / 6.4 kg
With Lens: 28.2 lb / 12.7 kg |
