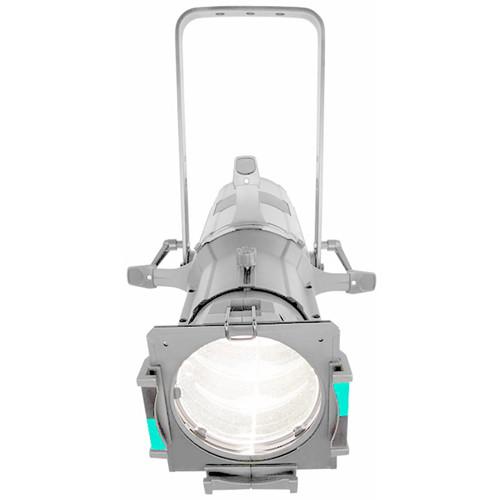

Product description The white Chauvet Ovation E-260WW with 36° lens is an ellipsoidal 3149K LED fixture with a built-in dimmer and DMX control. It is primarily designed for use in a theatrical lighting grid, but it can also be used in film and video productions. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. Manual zoom and focus adjustment lets you tune your light's coverage, which can be further refined with the included framing shutters. A built-in LED info screen aids you in navigating the menu system.
Featuring Pulse Width Modulation (PWM) dimming, the fixture is suitable for theatrical as well as video use. It is compatible with both 8- and 16-bit dimming controllers, and although fan cooled it is very quiet in use. - 1, 2, 3, and 6 DMX channels
- Accepts industry standard lens tubes (36° included), allowing you customize the fixture's beam spread to match your needs
- Integrated framing shutters allow you shape the fixture's beam

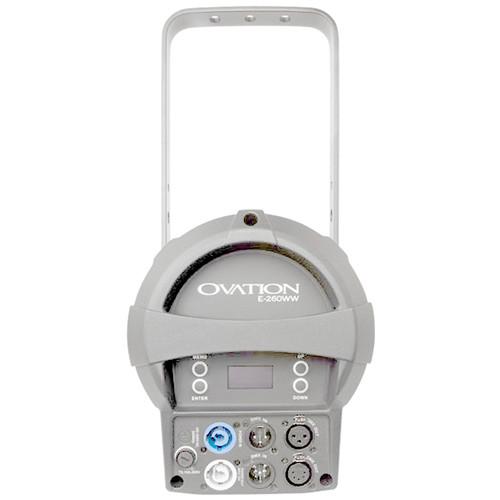

- Incorporates both 3-pin and 5-pin XLR connectors, providing DMX in/out
- Uses powerCON connectors, allowing you to daisy-chain the power for up to eight fixtures on a 120 VAC / 15 A circuit
In the Box CHAUVET PROFESSIONAL Ovation E-260WW (36°, 3149K, White) PowerCON Input Cord 36° Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation E-260WW in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL OVATIONE260WW36WHT Specs | Light Source | 1 x LED
202 W (3.6 A)
50,000 hour life expectancy | | Color Temperature | 3149K (warm white) | | Beam Angle | 20° | | Field Angle | 34° | | Lumens | 10,121 | | Illuminance | 4053 lux @ 16.4' (5 m) | | Lens Tube | 36° | | CRI | 91 | | Strobe Rate | 0 to 27 Hz | | DMX Channels | 1, 2, 3, or 6 | | DMX Connectors | 3- and 5-pin XLR (in/out) | | IP Rating | IP20 | | Cooling System | Fan-assisted convection | | Power Linking | 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V | | Power Connections | Input Connector: Neutrik powerCON A
Output Connector: Neutrik powerCON B
Power Cord Plug: Edison (U.S.) | | Input Voltage | Auto-ranging 100 to 240 VAC, 50/60 Hz, switching (internal) | | Power Consumption | 209 W / 1.655 A @ 120 V, 60 Hz
204 W / 0.925 A @ 230 V, 50 Hz | | Approvals | CE, MET | | Cable Length | 5' (1.52 m) | | Dimensions | Fixture Only: 19.49 x 11.22 x 19.17" (495 x 285 x 487 mm) | | Weight | Fixture Only: 15.4 lb (7 kg) |
