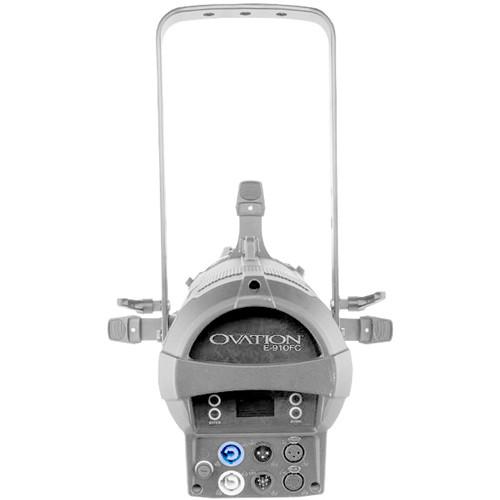

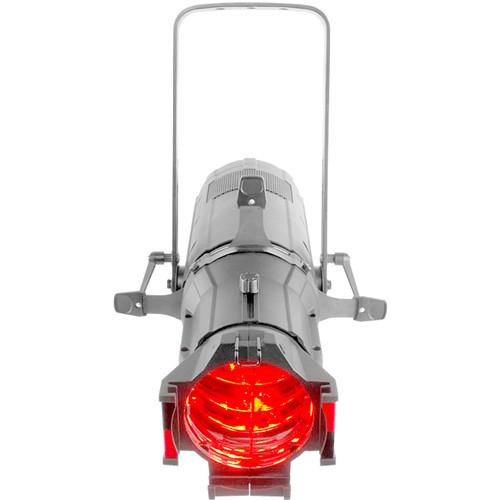

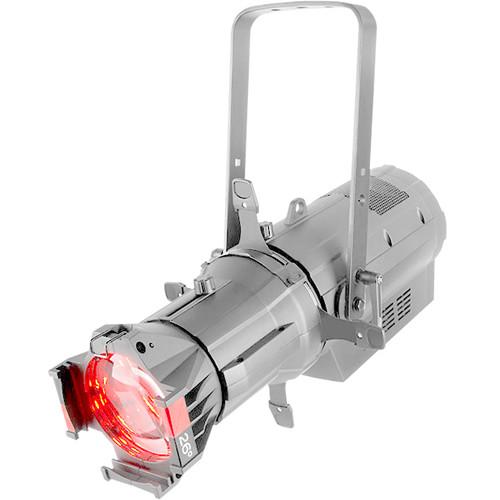

Product description The white Ovation E-910FC Light Engine with 19° lens from Chauvet is a full-color LED (RGBA-Lime) ERS-style lighting fixture for theater, film, and production. The light source features 91 LEDs: 18 red, 18 green, 19 blue, 18 amber, and 18 lime green. Color temperature presets from 2800 to 6500K are available, and the virtual color wheel offers 31 color presets matched to popular Rosco gels. The E-910FC features seven DMX channel modes for remote control and a 100-240 VAC power supply for worldwide use. Effects include standalone color mixing, electronic strobe, nine dimming modes, and built-in automated programs. The E-910FC features silent operation for sound-sensitive venues and an adjustable PWM to ensure flicker-free operation for various on-camera applications. - Benefits
-
- Full-color LED (RGBA-Lime) ERS-style lighting fixture for theater, film, and production
- Ultra-smooth 16-bit dimming for master dimmer and individual colors
- Flat, even field of light with superior color mixing
- Virtual color wheel with color matched to popular Rosco Gel colors
- Color temperature presets from 2800 to 6500K with high CRI and CQS
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio and theater applications
- Works with industry-standard lens tubes and accessories
In the Box CHAUVET PROFESSIONAL Ovation E-910FC ERS RGBA-Lime LED Light Fixture (19° Lens, White) 19° Lens Neutrik powerCON Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation E-910FC ERS RGBA-Lime LED Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL OVATIONE910FC19WHT Specs | Light Source | 91 x Single-Color LED, 3 W (1.4 A) | | LED Configuration | 18 Red
18 Green
19 Blue
18 Amber
18 Lime Green | | Life Expectancy | 50,000 Hours | | Color Temperature | 2800 to 6500K | | Color Temperature Presets | Yes | | Color Mixing | Red, Green, Blue, Amber, Lime | | Beam Angle | 19° | | Field Angle | 19° | | Lumens | 3236 | | Illuminance | 3017 lux at 16.4' / 5 m | | Dimmer Type | Electronic | | Dimmer Curves | 4 x Curve | | Strobe | Electronic | | Strobe Rate | 0 to 28 Hz | | Focus | Manual | | Framing | 4 x Framing Shutter | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Sound Active | No | | Operating Modes | Auto Programs, Virtual Color Wheel, Color Temperature, Manual Color Mixer, DMX | | Protocols | DMX, RDM | | DMX Connectors | Input: XLR 3-Pin and XLR 5-Pin
Output: XLR 3-Pin and XLR 5-Pin | | DMX Channel Modes | 3, 5, 7, 10, 12, 13, or 15 Channels | | Display/Controls | LED Display with 4-Button Control Interface | | Power Connectors | Input: powerCON
Output: powerCON | | Power Cable | Edison to powerCON
5' / 1.5 m | | Power Requirements | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 120 VAC: 6 Units
208 VAC: 11 Units
230 VAC: 12 Units | | Power and Current | 120 VAC, 60 Hz: 240 W, 2.006 A
208 VAC, 60 Hz: 234 W, 1.160 A
230 VAC, 50 Hz: 234 W, 1.074 A | | Lens Tube | 19° | | Mounting | Single Yoke | | Certification and Compliance | CE, MET | | IP Rating | IP20 | | Dimensions | Fixture Only: 19.49 x 11.22 x 19.17" / 495 x 285 x 487 mm | | Weight | Fixture Only: 15.4 lb / 7.1 kg |
