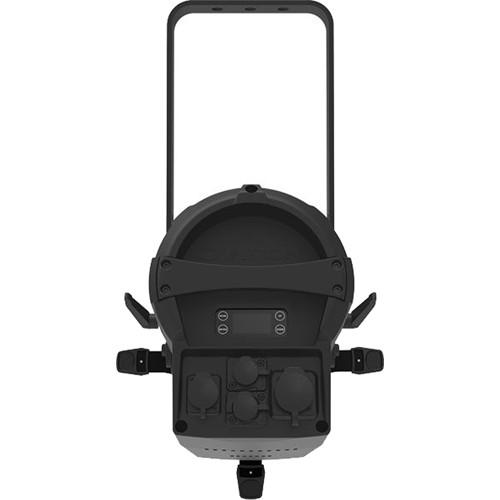

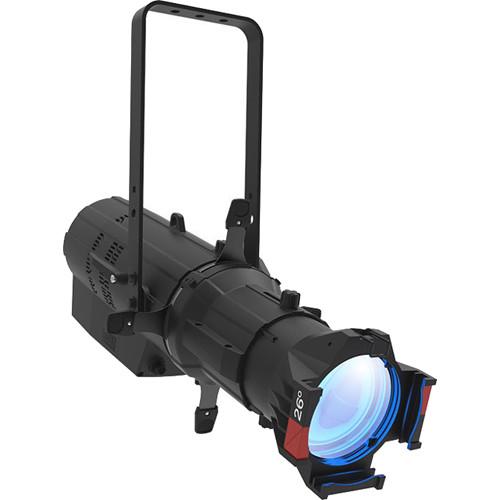

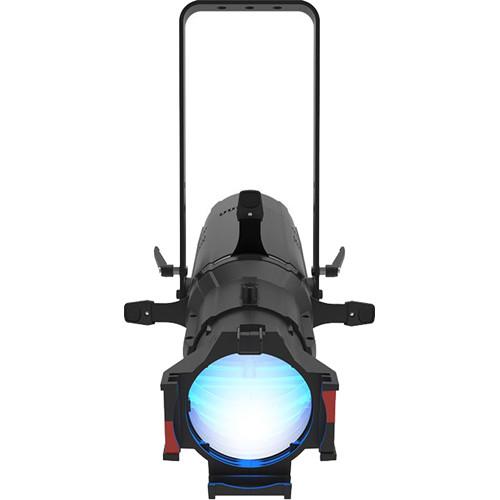

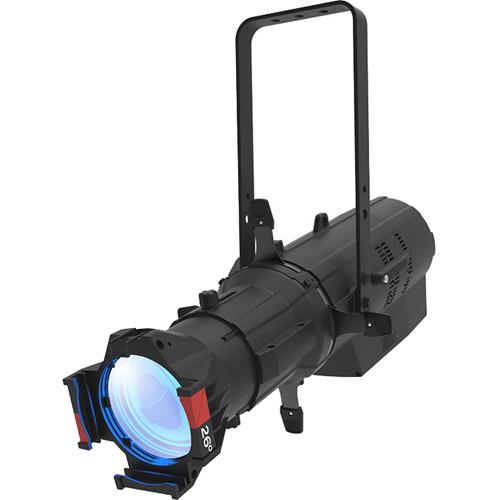

Product description The Chauvet Professional Ovation E-910FC IP RGBA-Lime is a full-color LED ERS-style lighting fixture that offers color temperature presets of 2800 to 6500K that match the output of a tungsten and daylight source, well suited for theater, film, and TV production. The light source features 91 LEDs: 18 red, 18 green, 19 blue, 18 amber, and 18 lime green, and the virtual color wheel offers 31 color presets matched to popular Rosco gels. The E-910FC IP features nine DMX channel modes (1, 4, 6, 8, 11, 13, 14, 16, or HSV) for remote control and a 100-240 VAC power supply for worldwide use. Effects include standalone color mixing, electronic strobe, four dimming modes, and built-in automated programs. The E-910FC IP65 features silent operation for sound-sensitive venues and an adjustable PWM to ensure flicker-free operation for various camera production applications. Note: The Ovation E-910FC IP requires an optional lens tube for full operation - Benefits
-
- Full color LED (RGBA-Lime) ERS-style lighting fixture for theater, film, and production
- Fully IP65 rated for seasonal use indoors or outside
- Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
- Virtual color wheel with color matched to popular gel colors
- Color temperature presets from 2800 to 6500K with high CRI and CQS
- Ultrasmooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
- Flat, even field of light for superior gobo projection
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering during production
UPC: 781462218454 In the Box CHAUVET PROFESSIONAL Ovation E-910FC IP RGBA-Lime LED Light Fixture Seetronic Powerkon IP65 Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation E-910FC IP RGBA-Lime LED Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL E-910FC IP Specs | Optical | Light Source: 91 LEDs (18 Red, 18 Green, 19 Blue, 18 Amber, 18 Lime Green) 3 W, (722 mA), 6031 K
Life Expectancy: 50,000 Hours
Color Temperature (range): 2800 to 6500 K
Color Temperature (at Full): 6031 K
CRI (3200 K): 82
Selectable PWM: 600, 1200, 2000, 4000, 6000, 25000 Hz | | Dynamic Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes | | Connections | Power Connection: Edison (Local) Plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-Pin XLR
Cable Length (power): 16.4' / 5.0 m | | Control | Control Protocol: DMX, RDM
DMX Channels: 1, 4, 6, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 9 Personalities (1, 4, 6, 8, 11, 13, 14, 16 or HSV) | | Certifications | CE, MET
IP Rating: IP65, Outdoor/Wet, with Pressure Equalizing M12 GORE Valve
Temperature (Ambient): -4 to 113°F / -20 to 45°C | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 7 Units at 120 V; 11 Units at 208 V; 12 Units at 230 V
Power and Current: 225 W, 1.88 A at 120 V, 60 Hz
Power and Current: 236 W, 1.14 A at 208 V, 60 Hz
Power and Current: 241 W, 1.05 A at 230 V, 50 Hz | | Dimensions (L x W x H) | 26.0 x 11.3 x 10.4" / 660.0 x 287.9 x 264.6 mm | | Weight | 23.2 lb / 10.5 kg |
