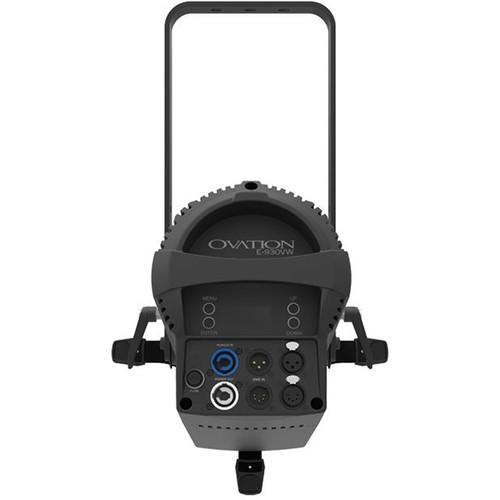

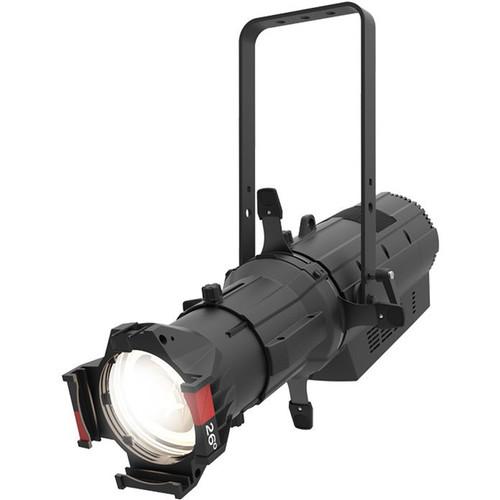

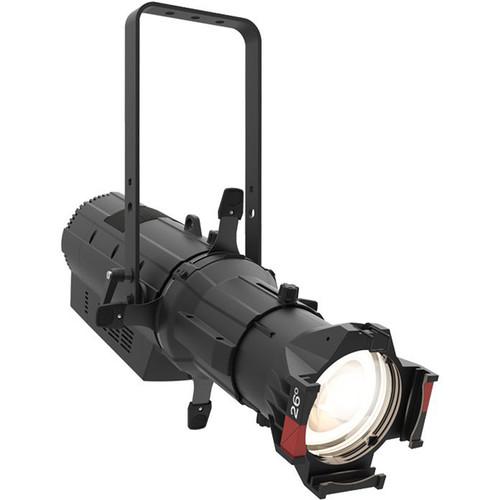

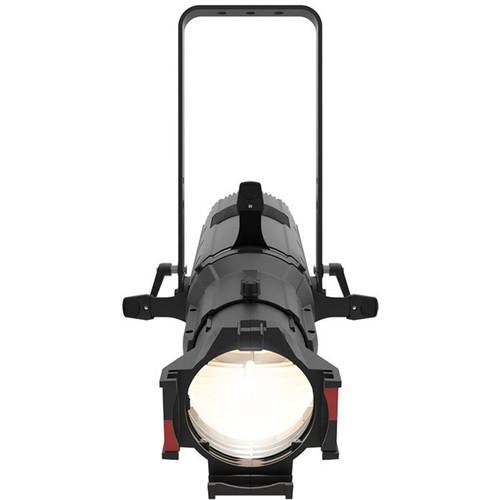

User Manual for CHAUVET PROFESSIONAL Ovation E-930VW White Ellipsoidal Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation E-930VW White Ellipsoidal
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Ovation E-930VW White Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description Cast a bright, beautifully flat field of light in nearly any temperature of white with the Ovation E-930VW White Ellipsoidal from CHAUVET PROFESSIONAL. Designed for use in theater and film production, this high-performance ellipsoidal uses a six-color LED system to create variable tones of white with a CRI color rendering accuracy of 88-92. Each color temperature can be further adjusted by adding or subtracting green to perfect the field of light. For times when a splash of color is needed, the fixture can also give you full control of each LED.
The Ovation E-930VW requires a separately available lens tube. - Color temperature presets from 2800 to 8000K
- Proprietary LED engine delivers consistent output across all color temperatures
- Green +/- adjustment via DMX or onboard control panel
- Independent color control over the six-color engine when a splash of color is needed
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Silent operation for use in studio and theater applications
- Seamless integration with industry-standard lens tubes and accessories (available separately)
UPC: 781462217594 In the Box CHAUVET PROFESSIONAL Ovation E-930VW White Ellipsoidal Neutrik powerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation E-930VW White Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL E-930VW Specs | | | Light Source | 91 x LEDs, 3 W, 960 mA | | LED Configuration | 6 x Red
15 x Orange-Red
9 x Green
12 x Blue
10 x Royal Blue
39 x Grass-Lime | | Life Expectancy | 50,000 hours | | Color Temperature | 2800 to 8000K | | CRI | 88-92 | | Beam Angle | With 14° Lens: 12°
With 19° Lens: 17°
With 26° Lens: 22°
With 36° Lens: 27°
With 50° Lens: 38°
With 15-30° Lens: 10° (Narrow), 22° (Wide)
With 25-50° Lens: 20° (Narrow), 36° (Wide) | | Field Angle | With 14° Lens: 14°
With 19° Lens: 18°
With 26° Lens: 25°
With 36° Lens: 33°
With 50° Lens: 50°
With 15-30° Lens: 14° (Narrow), 29° (Wide)
With 25-50° Lens: 22° (Narrow), 39° (Wide) | | Lumen Output | With 14° Lens: 4399 Lumens
With 19° Lens: 4817 Lumens
With 26° Lens: 5485 Lumens
With 36° Lens: 5306 Lumens
With 50° Lens: 5037 Lumens | | Illuminance | With 14° Lens: 7560 lux at 16.4' / 5 m
With 19° Lens: 3765 lux at 16.4' / 5 m
With 26° Lens: 2210 lux at 16.4' / 5 m
With 36° Lens: 1296 lux at 16.4' / 5 m
With 50° Lens: 537 lux at 16.4' / 5 m
With 15-30° Lens: 6990 lux (Narrow), 1815 lux (Wide) at 16.4' / 5 m
With 25-50° Lens: 2464 lux (Narrow), 975 lux (Wide) at 16.4' / 5 m | | PWM Frequency | Selectable: 600, 1200, 2000, 4000, 6000, or 25,000 Hz | | | | Dimmer Type | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 28 Hz | | Focus | Manual | | Standalone Color Mixing | Yes | | Color Temperature Presets | Yes | | Dimmer | 4 x Modes | | Built-In Programs | No | | | | Protocols | DMX, RDM | | DMX Channel Modes | 3, 5, 6, 8, 11, 15, and 17 Channels | | DMX Personalities | 3, 5, 6, 8, 11, 15, and 17 | | | | DMX Connectors | In/Out: XLR 3-Pin and 5-Pin | | Power Connection Type | Edison (Local) Plug to Neutrik powerCON | | Power Cable Length | 5' / 1.5 m | | Power Input | Neutrik powerCON | | Power Output | Neutrik powerCON | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 5 Units at 120 V
9 Units at 208 V
10 Units at 230 V | | Power and Current | 120 VAC, 60 Hz: 239 W, 2 A
208 VAC, 60 Hz: 243 W, 1.2 A
230 VAC, 50 Hz: 245 W, 1 A | | | | Certification and Compliance | CE, MET | | IP Rating | IP20 | | | | Gel Frame Holder | Ovation Ellipsoidal HD Lens Tubes (Available Separately) Ship with Gel Frame Installed
14, 19, 26, 36, and 50° Lenses: 6.25" / 159 mm
15-30° Lens: 7.5" / 191 mm
25-50° Lens: 7.5" / 191 mm | | Mounting | Yoke | | Dimensions | 25.04 x 13.54 x 23.22" / 63.6 x 34.4 x 59.0 cm, without Required Lens Tube | | Weight | 16.6 lb / 7.5 kg, without Required Lens Tube |
