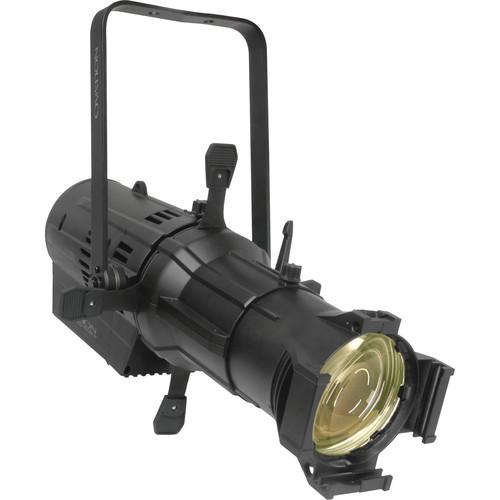

Product description The Ovation ED-190WW LED Ellipsoidal Spot with 26° Lens from Chauvet is a high-powered LED-based fixture that makes it possible to retrofit lamp-based ellipsoidals without losing your investment in a dimming system. The Ovation ED-190WW is equally efficient running on constant power and DMX (as LED fixtures typically do) as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives and directs the light to respond accordingly. The ED-190WW performs as well as the original Ovation E-190WW with the same output and tremendous dimming performance. Now everyone can enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems. - Attributes
-
- Accepts industry standard lens tubes
- Optional 19, 36, 50° Lenses
- Optional 15-30° and 25-50° Zoom Lenses
- Works on conventional dimmers or constant power with DMX
- Auto-senses system and responds accordingly
- Superior low end dimming using dimmers or constant power
- Ideal for the retrofit market, utilizes existing fixture infrastructure
- Accessory slot for motorized gobo devices and iris units
- 16-bit dimming resolution for smooth fades
- Flat, even field of light
- Includes standard pattern slot for glass or steel patterns and soft focus diffuser
- Virtually silent operation for use in any situation
- Both simple and complex DMX channel profiles for programming versatility
- Warm white ERS-style lighting fixture
In the Box CHAUVET PROFESSIONAL Ovation ED-190WW LED Ellipsoidal Spot with 26° Lens Neutrik PowerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation ED-190WW LED Ellipsoidal Spot with 26° Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL OVATIONED190WW26 Specs | Light Source | 19 x 10 W LEDs (Warm White) (2.8 A) | | LED Life Expectancy | Up to 100,000 hours | | Lens | 26° | | Beam and Field Angle | Beam Angle: 22°
Field Angle: 28° | | Color Temperature | Full Power: 3,076 K | | Focus | Manual | | Illuminance | 2,743 lux @ 16.4' (5.0 m) | | Lumens | 6,025 | | Shutter/Strobe | Electronic | | Strobe Rate | 0 - 20 Hz | | PWM Frequency | 600 Hz | | Frame Size | Accessory Holder/Gel Frame Size (19, 26, 36, 50° Lens): 6.25" (159 mm)
Accessory Holder/Gel Frame Size (15-30° and 25-50° Lens): 7.5" (191 mm) | | Gobo Size | Gobo Holder Size A (optional): 94 mm (outside), 79 mm (image), 2.5 mm max. thickness)
Gobo Holder Size B (optional): 94 mm (outside), 69 mm (image), 2.5 mm max. thickness)
| | Controls | Dimmer, DMX | | Dimming | Electronic or External Dimmer Rack
Resolution: 16-bit
4 x Dim Curves
5 x Dim Modes | | DMX Connectors | XLR 3-pin input and output
XLR 5-pin input and output | | DMX Channels | 1, 2, or 3 | | Operating Modes | 3 x Modes
UNO (1-Channel): dimmer control
DOS (2-Channel): dimmer and fine dimmer control
STD.P (3-Channel): dimmer, fine dimmer, and strobe control
| | Input Voltage | 120/230 VAC, 50/60 Hz (switchable) | | Power Cable | 5.0' (1.5 m) Edison plug to Neutrik powerCON | | Power Connectors | Power Input: Neutrik powerCON
Power Output: Neutrik powerCON | | Power and Current | 208 W, 1.7 A @ 120 VAC, 60 Hz
200 W, 0.9 A @ 230 VAC, 50 Hz | | Power Linking | 4 Units @ 120 VAC, 8 units @ 230 VAC | | Fuse | T 3.15 A, 250 V | | Approvals | CE | | IP Rating | IP20, dry location | | Maximum Temperature | External: 113°F (46°C) | | Dimensions | Fixture Without Lens: 21.5 x 15 x 15" (54.5 x 38.0 x 38.0 cm) | | Weight | Fixture Without Lens: 16.4 lb (7.44 kg) | | | | Package Weight | 27.5 lb | | Box Dimensions (LxWxH) | 27.8 x 24.0 x 12.0" |
