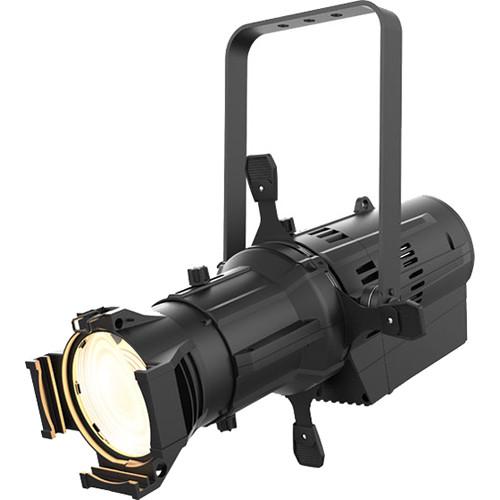

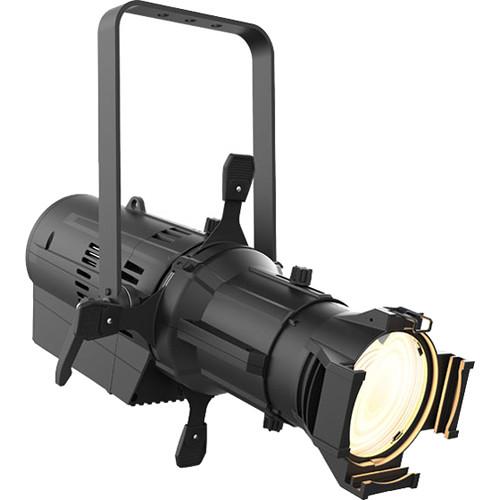

Product description The Chauvet Professional Ovation ED-200WW LED Ellipsoidal Spot is a high-powered LED-based fixture with a single 230W warm white LED light source that exceeds a Tungsten 750W light source and is well suited for film studios, broadcast applications, theaters, and more. The fixture can be retrofitted to lamp-based ellipsoidals without losing the investment into a current dimming system. The instrument delivers white light with a warm color temperature and a flat field for exceptional gobo projection.
The Ovation ED-200WW is equally efficient running on constant power and DMX as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives and directs the light to respond accordingly. The there are several lens tubes available including 14, 19, 26, 36, and 50° options, each sold separately. The Chauvet Professional Ovation ED-200WW ships with a powerCON power cord. Note: This light fixture requires a lens tube for full operation. Lens tubes are sold separately. - Attributes
-
- Warm white ERS style fixture with output exceeding a tungsten 750 W source
- Works on conventional dimmers or constant power with DMX
- Auto-senses power/data and responds appropriately
- Smooth low-end dimming whether using dimmers or constant power
- Great fixture for the retrofit market, utilizes existing dimming infrastructure
- 16-bit dimming resolution (DMX mode) for smooth fades
- Flat, even field of light for professional-quality gobo projection
- Works with industry standard lens tubes and accessories
- Virtually silent operation for use in any situation
- Operational Modes:
- 1-Channel (UNO): dimmer control
- 2-Channel (DOS): dimmer and fine dimmer control
- 3-Channel (STD.P): dimmer, fine dimmer, and strobe control
UPC: 781462218560 In the Box CHAUVET PROFESSIONAL Ovation ED-200WW Ellipsoidal Spot, Light Engine Only (Warm White) Neutrik powerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation ED-200WW Ellipsoidal Spot, Light Engine Only in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL ED-200WW Specs | Optical | Light Source: 1 LEDs (WW) 230 W, (3.4 A)
Life Expectancy: 100,000 Hours
Color Temperature (at Full): 3334 K
CRI: 97
PWM Frequency: 600, 1200, 2000, 4000, 25,000 Hz | | Dynamic Effects | Dimmer: Electronic or External Dimmer Rack
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 18 Hz
Dim Modes: 5
Dim Curves: 4 | | Control | Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2, or 3
Modes/Personalities: 3 Personalities (UNO, DOS, STD.P)

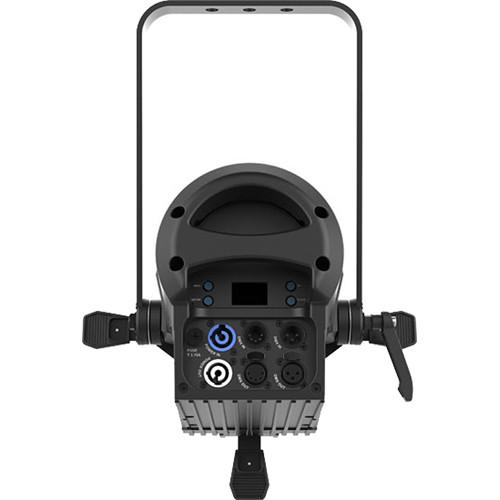

| | Connections | Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-Pin XLR
Power Connection: Edison Plug to Neutrik powerCON
Cable Length (Power): 5.0' / 1.5 m | | Certifications | CE, MET
IP Rating: IP20, Dry Location | | Power | Input Voltage: 120/230 VAC, 50/60 Hz (Switchable)
Power Linking: 6 Units at 120 V; 12 Units at 230 V
Power and Current: 250 W, 2.074 A at 120 V, 60 Hz
Power and Current: 254 W, 1.103 A at 230 V, 50 Hz
| | Dimensions (L x W x H) | 21.5 x 15.0 x 15.0" / 546.1 x 381.0 x 381.0 mm | | Weight | 17.6 lb / 8.0 kg |
