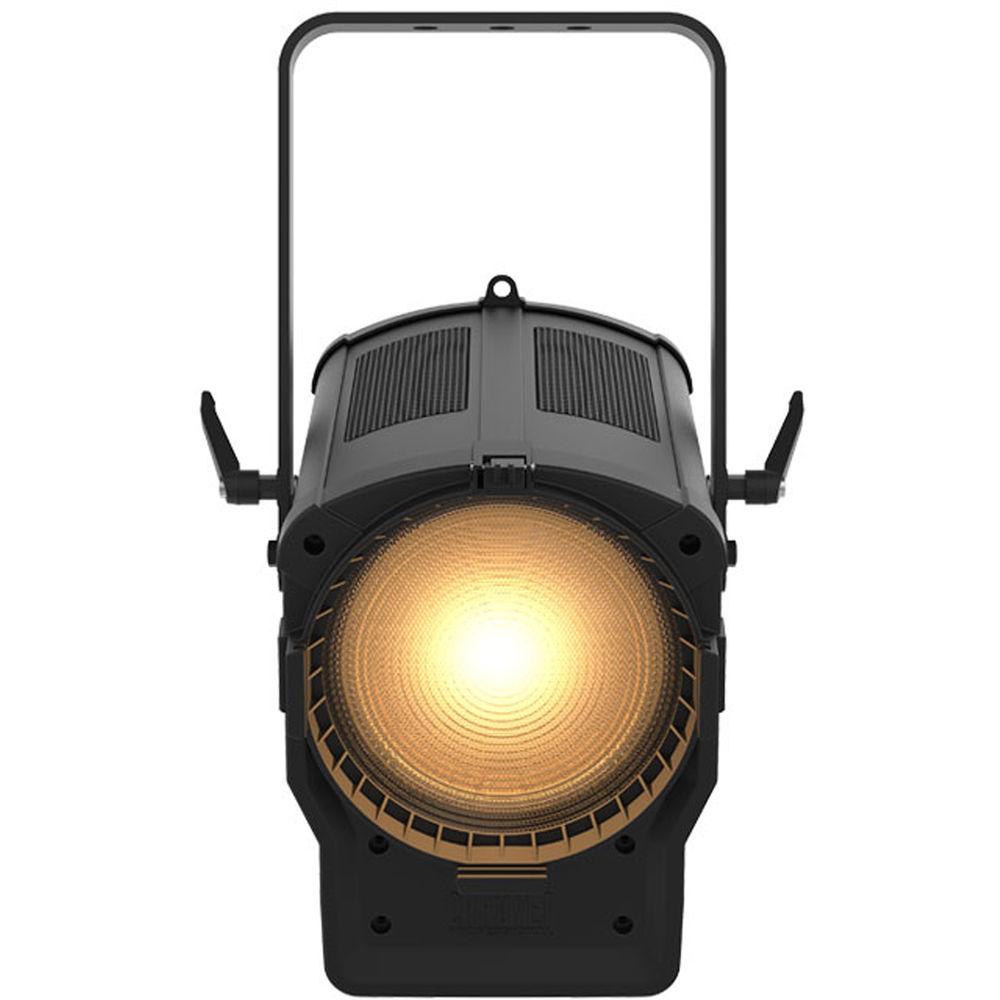

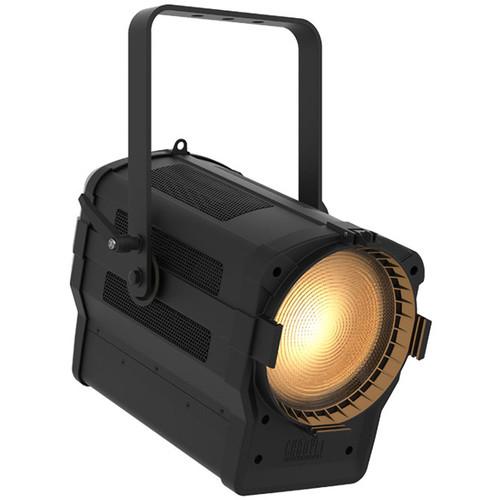

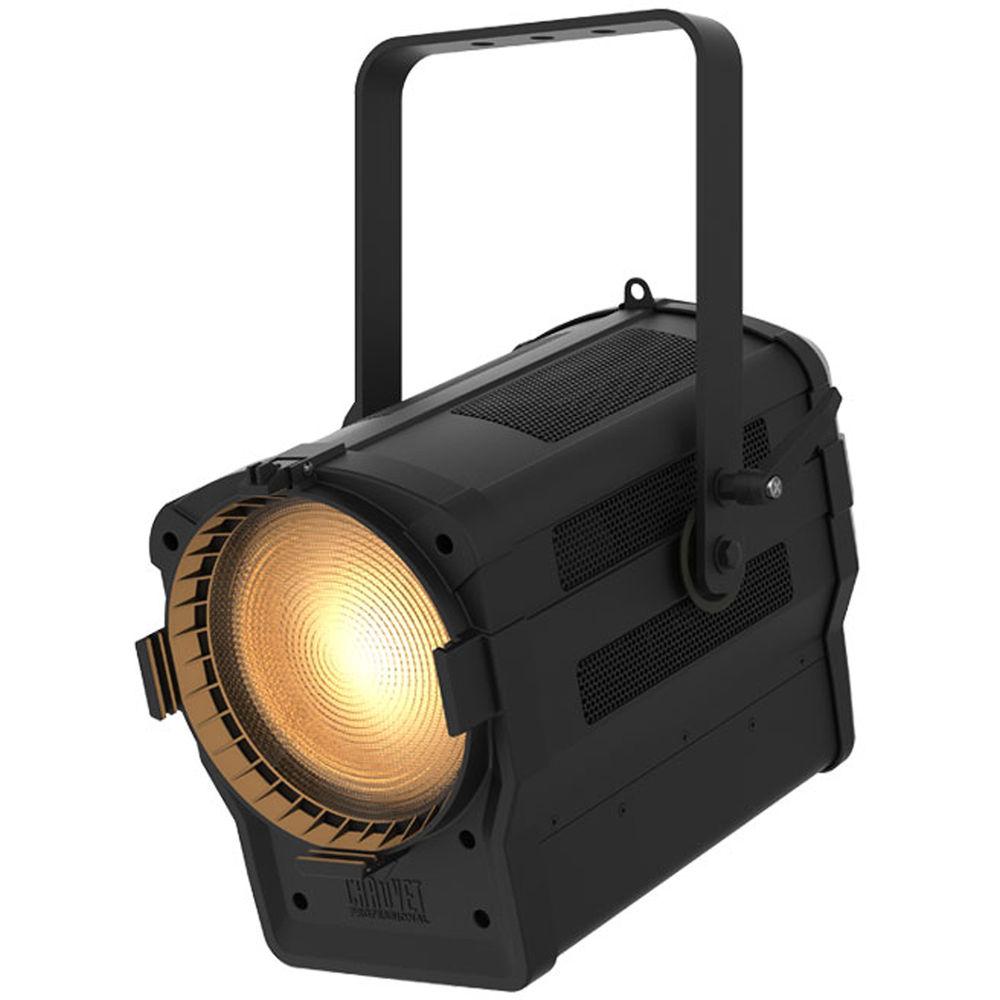

Product description The Ovation F-265WW Warm White LED Fresnel-Style Fixture from CHAUVET PROFESSIONAL utilizes an efficient warm white LED system to project a bright, soft, high-CRI field of light ideal for theaters and television studios. The motorized zoom with a 27-68° field angle, as well as the light output can be controlled via DMX, onboard dials, RDM, adjustable PWM, and an easy to navigate OLED full text display. - Warm white Fresnel with output comparable to an 8", 2000W Fresnel
- Soft and even field of light
- 16-bit dimming resolution for smooth fades
- Virtually silent operation for use in any situation
UPC: 781462217365 In the Box CHAUVET PROFESSIONAL Ovation F-265WW Warm White LED Fresnel-Style Fixture Neutrik powerCON Power Cord Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation F-265WW Warm White LED Fresnel-Style Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL F-265WW Specs | | | Light Source | 1 x WW LED
230 W, 3.6 A | | LED Life Expectancy | 50,000 hours | | Color Temperature | 3142 k | | CRI | 96 | | Beam Angle | 16 to 46° | | Field Angle | 27 to 68° | | Zoom Angle | 27 to 68° | | Brightness | 27°: 9283 lumens
68°: 12,802 lumens | | Illuminance | 27°: 4010 lux @ 16.4' / 5 m

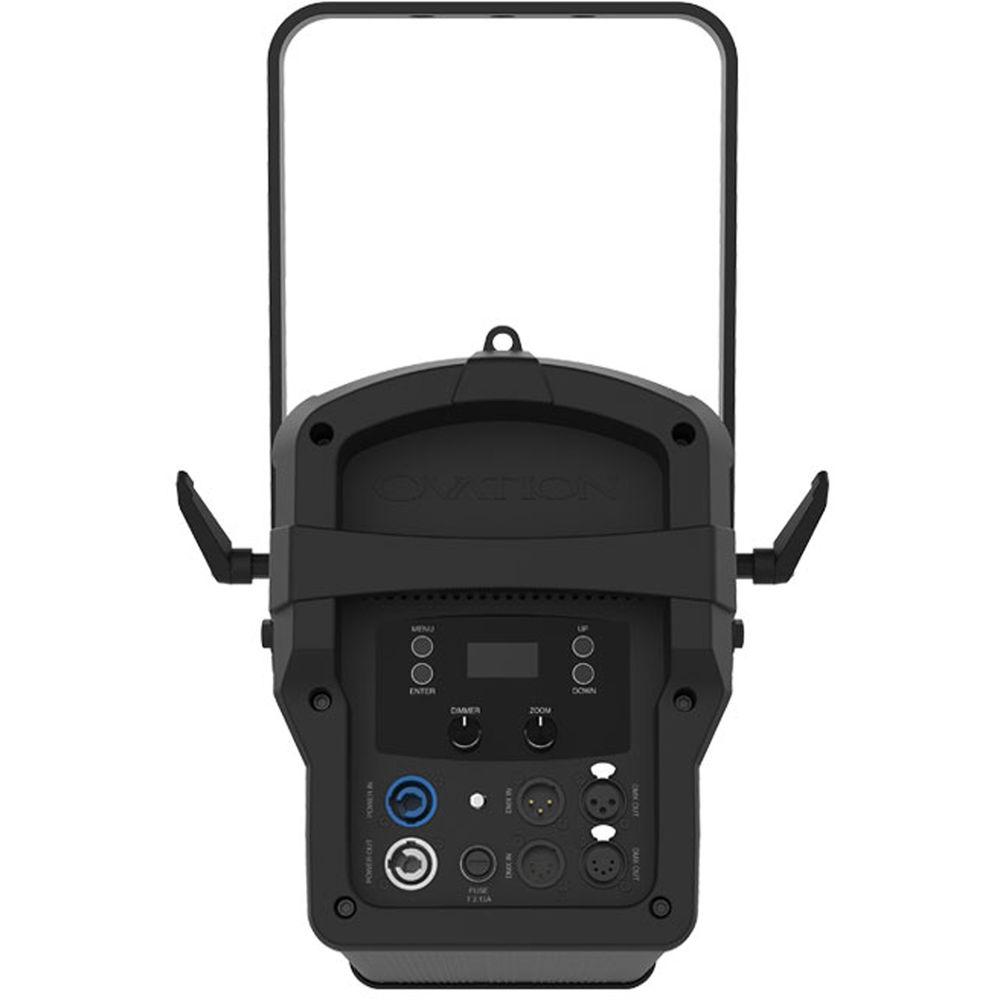

68°: 1162 lux @ 16.4' / 5 m | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz | | | | Dimmer | Electronic, four modes | | Shutter/Strobe | Electronic | | Zoom | Motorized | | Strobe Rate | 0 to 30 Hz | | | | Protocols | DMX, RDM | | DMX Channels | 1, 2, 2 or 5 | | | | Power Input/Output | Neutrik powerCON | | Data Connectors | 3- and 5-pin XLR | | Cable Length | 5' / 1.5 m | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz | | Power Linking | 7 units @ 120 V
12 units @ 208 V
13 units @ 230 V | | Power | 227 W, 1.88 A @ 120 V, 60 Hz
234 W, 1.11 A @ 208 V, 60 Hz
235 W, 1.01 A @ 230 V, 50 Hz | | | | Certifications | CE, MET | | Rating | IP20, dry location | | Temperature | -4 to 113°F / -20 to 45°C | | Gel Frame Holder | 7.5" / 19.1 cm | | Construction | Aluminum | | Dimensions | 15.1 x 12.6 x 17.7" / 38.4 x 32.0 x 45.0 cm | | Weight | 17.2 lb / 7.9 kg |
