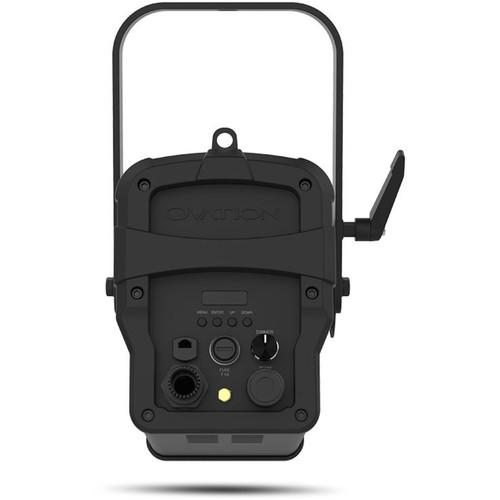

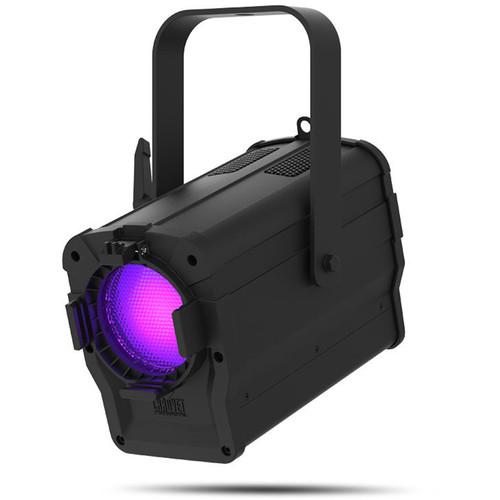

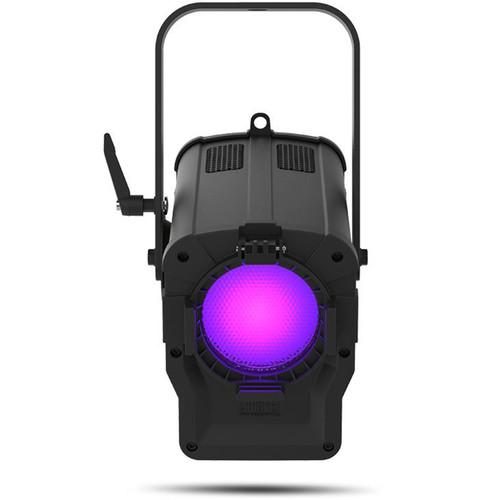

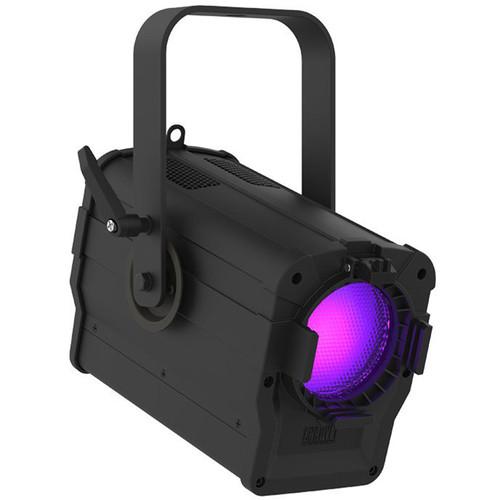

User Manual for CHAUVET PROFESSIONAL Ovation F-55FC RGBA-Lime Fresnel-Style LED Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation F-55FC RGBA-Lime Fresnel-Style
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Ovation F-55FC RGBA-Lime Fresnel-Style contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description Wash soft, even light over your stage or scene with the compact Ovation F-55FC RGBA-Lime LED Fixture from CHAUVET PROFESSIONAL. Designed for short-throw applications in TV studios, theaters, and on-location settings, this full-color Fresnel-style lighting fixture features a 32 to 87° zoomable field angle and 15 LEDs: three red, three green, three blue, three amber, and three lime. Color temperature presets from 2800 to 6500K are available, as well as a virtual color wheel with 31 color presets matched to popular Rosco gels.
The F-55FC features seven DMX channel modes for remote control and a 100-240 VAC power supply for worldwide use. Effects include standalone color mixing, electronic strobe, four dimming modes, and built-in automated programs. Moreover, its silent operation makes the fixture suitable for sound-sensitive applications, and its adjustable PWM helps ensure flicker-free shooting. Included in the package is a gel frame for holding color gels in front of the light. - Compact full-color RGBA+Lime Fresnel-style LED lighting fixture for tight spaces and on-location lighting
- Manual zoom with 32 to 87° field angle
- 16-bit dimming resolution for smooth fades
- Soft and even field of light
- Virtually silent operation for noise-sensitive applications
- Color temperature presets from 2800 to 6500K
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (pulse width modulation) to avoid flickering on camera
UPC: 781462217327 In the Box CHAUVET PROFESSIONAL Ovation F-55FC RGBA-Lime Fresnel-Style LED Fixture (Black) Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation F-55FC RGBA-Lime Fresnel-Style LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL F-55FC Specs | | | Light Source | 15 x Single-Color LEDs, 3 to 4 W, 700 mA | | LED Configuration | 3 x Red
3 x Green
3 x Blue
3 x Amber
3 x Lime | | Life Expectancy | 50,000 hours | | Color Temperature | 2800 to 6500K
At Full: 3779K | | CRI | At 3200K: 91 | | Beam Angle | 18 to 67° | | Field Angle | 32 to 87° | | Zoom Angle | 32° to 87° | | Lumen Output | At 30°: 114 lumens
At 69°: 462 lumens | | Illuminance | At 32°: 36 lux at 16.4' / 5 m
At 73°: 18 lux at 16.4' / 5 m | | PWM Frequency | Selectable: 600, 1200, 2000, 4000, 6000, or 15,000 Hz | | | | Dimmer Type | Electronic | | Shutter/Strobe | Electronic | | Zoom | Manual | | Strobe Rate | 0 to 30 Hz | | Color Mixing | Red, Green, Blue, Amber, Lime | | Color Temperature Presets | 2800, 3200, 3500, 4000, 4500, 5000, 5600, 6000, and 6500K | | Dimmer | 4 x Dim Mode | | Built-In Programs | Yes | | Master/Slave Support | Yes | | Operating Modes | Auto Programs, Virtual Color Wheel, Color Temperature, Manual Color Mixer, DMX | | | | Protocols | DMX, RDM | | DMX Channel Modes | 3, 5, 7, 10, 12, 13, or 15 Channels | | Modes | HSV
7 x DMX Channel Modes | | Display/Controls | Display with 4-Button Control Interface | | | | DMX Connectors | Input: XLR 5-Pin
Output: XLR 5-Pin | | Cable Length | 1.79' / 0.54 m | | Power Connectors | Input: powerCON
Output: powerCON | | Power Cable | Edison to powerCON
3.5' / 1.07 m | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power and Current | 120 VAC, 60 Hz: 44 W, 0.357 A
208 VAC, 60 Hz: 28 W, 0.130 A
230 VAC, 50 Hz: 29 W, 0.121 A | | | | Certification and Compliance | CE, MET | | IP Rating | IP20 - Dry Location | | | | Housing Material | Aluminum Alloy, Aluminum Die-Cast, High-Impact Flame-Retardant Polymer, and Steel | | Gel Frame Holder | 3.25" / 83 mm | | Mounting | Single Yoke | | Dimensions | 9.64 x 4.64 x 6.53" / 245 x 118 x 166 mm | | Weight | 5.4 lb / 2.4 kg |
