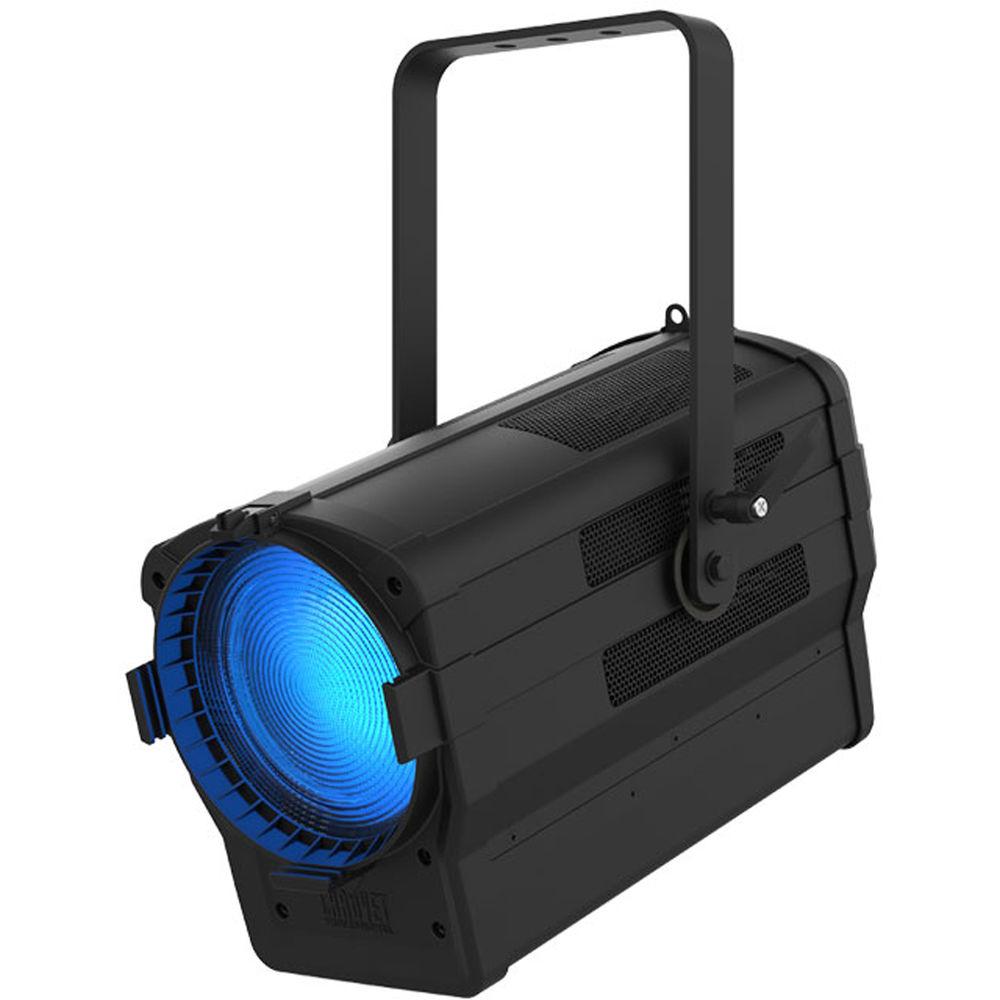

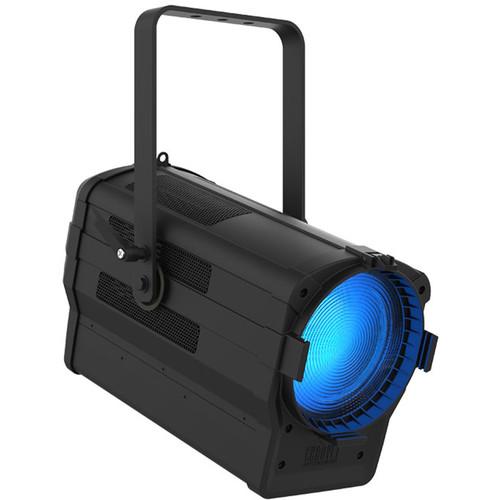

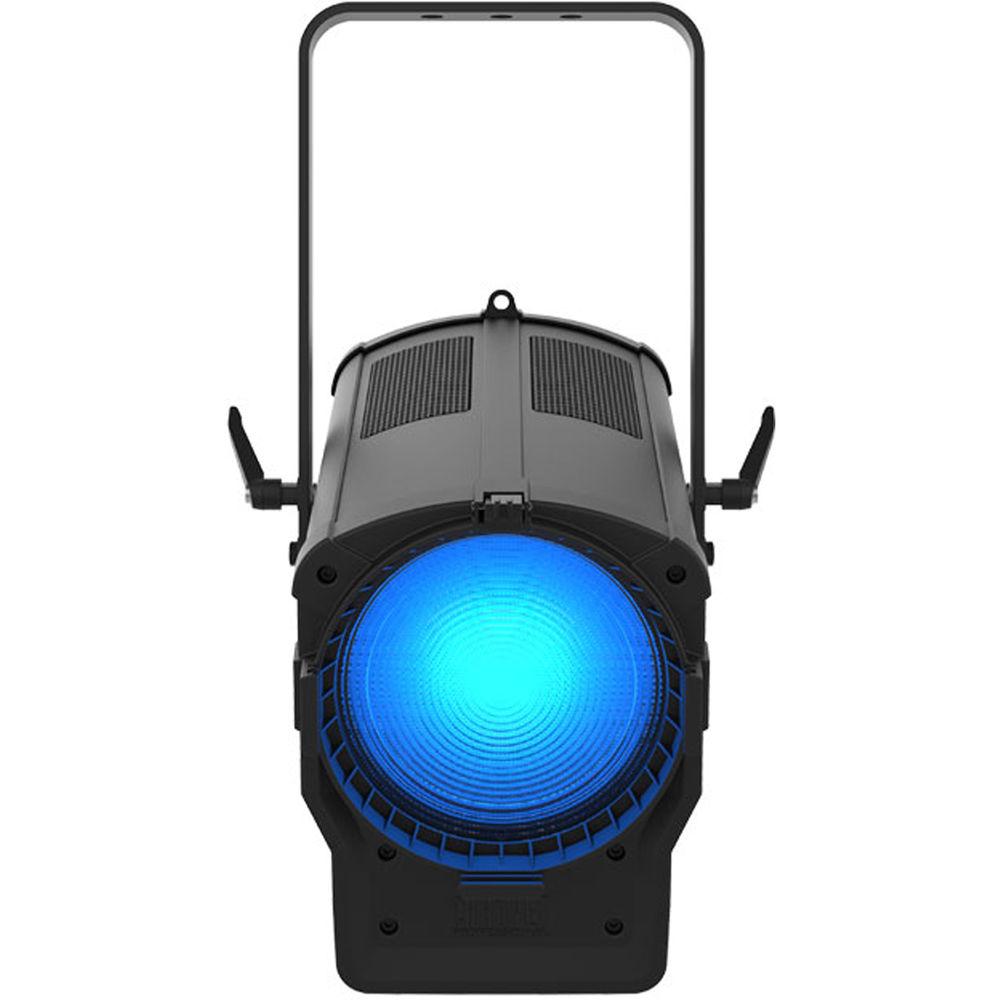

User Manual for CHAUVET PROFESSIONAL Ovation F-915FC RGBA-Lime Fresnel-Style LED Fixture Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation F-915FC RGBA-Lime Fresnel-Style
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Ovation F-915FC RGBA-Lime Fresnel-Style contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description Create immersive washes across your stage with the Ovation F-915FC from CHAUVET PROFESSIONAL. Featuring a RGBA-lime LED system and full color mixing, this fresnel-style fixture projects a bright, soft field of light in tones ranging from subtle pastels to punchy saturates, or in nearly any temperature of white. A motorized zoom with a 30 to 85° field angle allows you to shape the beam and add light where it is needed. The light's output level, zoom, and virtual color wheel can be controlled either via DMX or using the onboard dials. - Full-color LED (RGBA-lime) fresnel lighting fixture for theater and film
- Soft and even field of light
- Smooth, motorized zoom from 30 to 85°
- 16-bit dimming of master dimmer and individual colors
- Easy-to-use onboard control of color, zoom, and dimming
- Virtual color wheel matched to popular gel colors
- Color temperature presets from 2800 to 6500K
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio and theater applications
UPC: 781462217372 In the Box CHAUVET PROFESSIONAL Ovation F-915FC RGBA-Lime Fresnel-Style LED Fixture (Black) Power Cord Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation F-915FC RGBA-Lime Fresnel-Style LED Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL F-915FC Specs | | | Light Source | 89 x Single-Color LEDs, 3 W, 1.13 A | | LED Configuration | 18 x Red
18 x Green
16 x Blue
16 x Amber
21 x Lime Green | | Life Expectancy | 50,000 Hours | | Color Temperature | 2800 to 6500K | | CRI | At 3200K: 90 | | Beam Angle | 17 to 54° | | Field Angle | 30 to 85° | | Zoom Angle | 30 to 85° | | Lumen Output | At 30°: 4294 Lumens
At 73°: 6661 Lumens | | Illuminance | At 30°: 1980 lux at 16.4' / 5 m
At 73°: 433 lux at 16.4' / 5 m | | PWM Frequency | Selectable: 600, 1200, 2000, 4000, 6000, or 25,000 Hz | | | | Dimmer Type | Electronic | | Shutter/Strobe | Electronic | | Zoom | Motorized | | Strobe Rate | 0 to 27 Hz | | Standalone Color Mixing | Yes | | Color Temperature Presets | 2800, 3200, 3500, 4000, 4500, 5000, 5600, 6000, and 6500K | | Dimmer | 4 x Modes | | Built-In Programs | Yes | | Master/Slave Support | Yes | | | | Protocols | DMX, RDM | | DMX Channel Modes | 3, 5, 7, 11, 13, 14, or 17 Channels | | Modes | HSV
7 x DMX Channel Modes | | Display/Controls | Display, 4 x Menu Buttons, 2 x Knobs | | | | DMX Connectors | Input: XLR 3-Pin and 5-Pin
Output: XLR 3-Pin and 5-Pin | | Power Connectors | Input: Neutrik powerCON
Output: Neutrik powerCON | | Power Cable | Edison to Neutrik powerCON
5' / 1.5 m | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 6 Units at 120 V
10 Units at 208 V
12 Units at 230 V | | Power and Current | 120 VAC, 60 Hz: 260 W, 2.15 A
208 VAC, 60 Hz: 260 W, 1.25 A
230 VAC, 50 Hz: 260 W, 1.12 A | | | | Certification and Compliance | CE, MET | | IP Rating | IP20 | | | | Housing Material | Aluminum Alloy, Aluminum Die-Cast | | Gel Frame Holder | 7.5" / 191 mm | | Mounting | Single Yoke | | Dimensions | 22.41 x 12.59 x 10.82" / 56.9 x 32.0 x 27.5 cm | | Weight | 19 lb / 8.6 kg |
