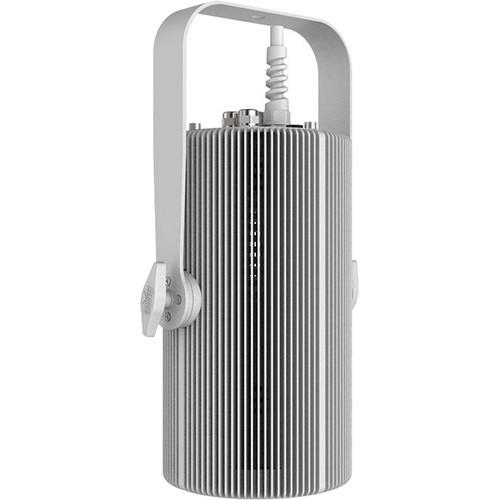

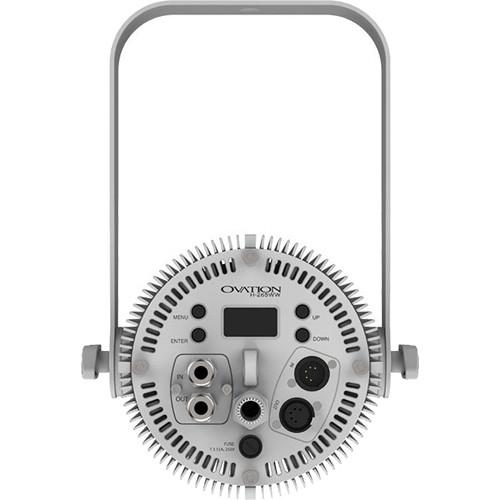

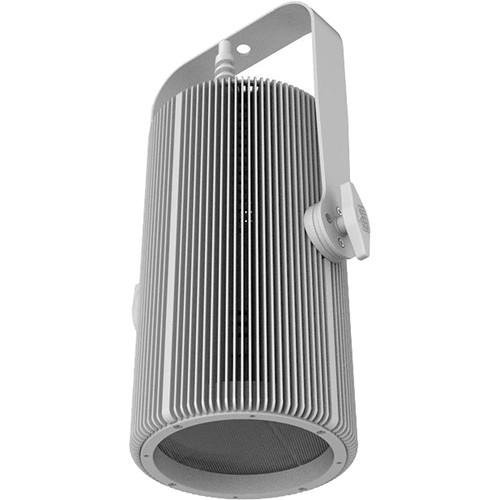

User Manual for CHAUVET PROFESSIONAL Ovation H-265WW LED House Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation H-265WW LED House
- Product category: Architectural Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Architectural Lights
 |
User manual for the CHAUVET PROFESSIONAL Ovation H-265WW LED House contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The white Ovation H-265WW LED House Light from CHAUVET PROFESSIONAL is a silent, convection-cooled LED house light with a warm white light output and a CRI of 97. It is designed to be used in theaters, worship venues, recital halls, and any other application where silent operation is crucial. The unit features 16-bit dimming, remote device management, W-DMX control, and adjustable pulse width modulation to prevent flickering on televised performances. The interchangeable lens plates can adapt to different mounting heights. The included yoke can be completely removed allowing the fixture to be suspended pendant style from a loop on the back plate. - 5-pin XLR and terminal blocks for DMX connections
- 16-bit dimming for ultra-smooth fades
- DMX, W-DMX, and RDM (remote device management) for added programming flexibility
- Built-in automated programs
In the Box CHAUVET PROFESSIONAL Ovation H-265WW LED House Light (White) 65° Lens 45° Lens 25° Lens 80° Filter Egg Crate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation H-265WW LED House Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL H-265WW Specs | | | Light Source | 1 LEDs (WW) 230 W, 2.3 A, 50,000-Hour Life Expectancy | | Color Temperature | 3258K at Full | | CRI | 97 | | Beam Angle | 80° Filter: 40°
65° Lens: 50°
45° Lens: 39°
25° Lens: 19° | | Field Angle | 65°:Lens 79°
45° Lens: 69°
25° Lens: 36° | | Lumens | 80° Filter: 7912 lumens
65° Lens: 8505 lumens
45° Lens: 8885 lumens
25° Lens: 9139 lumens | | Illuminance | 80° Filter: 325 lux at 16.4' / 5 m
65° Lens: 400 lux at 16.4' / 5 m
45° Lens: 623 lux at 16.4' / 5 m
25° Lens: 1933 lux at 16.4' / 5 m | | | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 30 Hz | | Dimming | 4 Modes | | | | Power Connection Type | Bare-Wired | | Power Input | Hard-Wired | | Data Connectors | 3- and 5-pin XLR, Phoenix Connector | | Cable Length | 15' / 4.5 m (Power) | | | | Control Protocol | DMX, W-DMX, RDM | | DMX Channels | 1, 2, or 5 | | Modes | 3 Personalities (1-Channel, 2-Channel, 5-Channel) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power and Current | 147 W, 1.21 A at 120 V, 60 Hz
147 W, 0.694 A at 208 V, 60 Hz
149 W, 0.641 A at 230 V, 50 Hz | | Breaker Size | T3.15 A, 250 V | | | | Certifications | CE, MET | | IP Rating | IP20, Dry Location | | Ambient Temperature | -4 to 113°F / -20 to 45°C | | | | Exterior Color | White | | Dimensions | 13.11 x 9.44 x 13.34" / 333 x 240 x 339 mm | | Weight | 17.8 lb / 8.1 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
