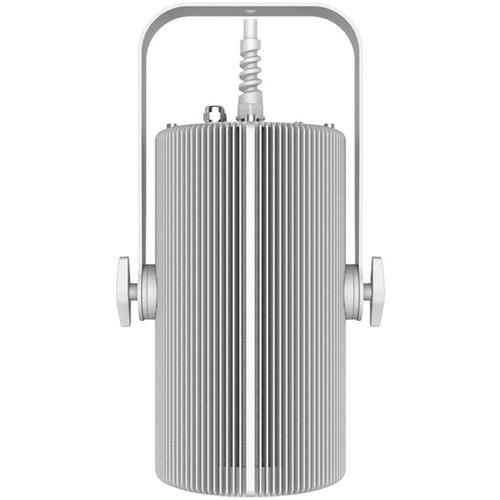

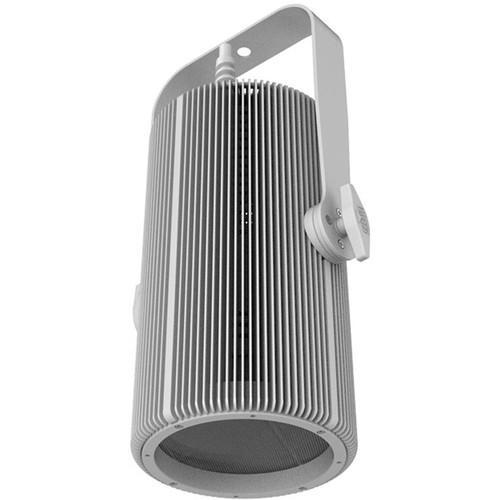

Product description The white Ovation H-605FC LED Light from Chauvet is a versatile fixture that's ideal for public venues such as theaters, houses of worship, and entertainment events. The light employs 60 LEDs with RGBAL color technology to render virtually any hue, including any color temperature of white. The H-605FC has a virtual color wheel with color matched to popular gel filters and color temperature presets from 2800 to 6500K, with a high CRI of 90 at 5000K. There are four dimming modes and selectable Pulse Width Modulation for flicker-free on-camera performance. Control features include DMX, RDM, and W-DMX. The H-605FC ships with both 25- and 40-degree lenses for field coverage and light intensity options. - Benefits
-
- Full color (RGBAL) LED convection-cooled house light
- Interchangeable lens plates to adapt to different mounting heights

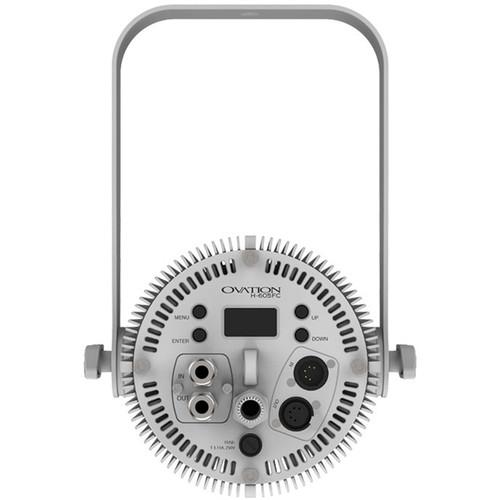

- 5-Pin XLR and terminal blocks for DMX connections
- Use included yoke for pipe mounting, or suspend from integrated loop-eye
- Virtual color wheel with color matched to popular gel colors
- Color temperature presets from 2800 to 6500K with high CRI and CQS
- 16-bit dimming for ultra-smooth fades
- DMX, WDMX, and RDM (Remote Device Management) for added programming flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
UPC: 781462216559 In the Box CHAUVET PROFESSIONAL Ovation H-605FC LED Light (White) 42° Lens 25° Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation H-605FC LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL H-605FC Specs | Light Source | 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime)
2 to 3 W, 800 mAh
50,000-hour life expectancy | | Color Temperature | 4766K at full power | | CRI | 90 at 5000K | | Beam Angle | Without Lens: 28°
With 40° Lens: 39°
With 25° Lens: 19° | | Field Angle | Without Lens: 60°
With 40° Lens: 66°
With 25° Lens: 37° | | Light Intensity | Illuminance @ 16.4' / 5.0 m
Without Lens: 545 lux
With 40° Lens: 349 lux
With 25° Lens: 1047 lux | | Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Dim Modes: Four built-in automated programs
Selectable PWM: 600, 1200, 2000, 4000, 6000, or 25,000 Hz | | Control | Protocols: DMX, RDM, W-DMX
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15, or HSV
Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 15, HSV) | | Connections | Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (Power): 15' / 4.5 m | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 155 W, 1.275 A @ 120 V, 60 Hz
Power and Current: 145 W, 0.731 A @ 208 V, 60 Hz
Power and Current: 146 W, 0.662 A @ 230 V, 50 Hz | | Certifications & Ratings | CE, MET
IP Rating: IP20, dry location | | Finish | White | | Dimensions | 13.1 x 13.3 x 9.4" / 33.3 x 33.9 x 24.0 cm | | Weight | 19.6 lb / 8.9 kg |
