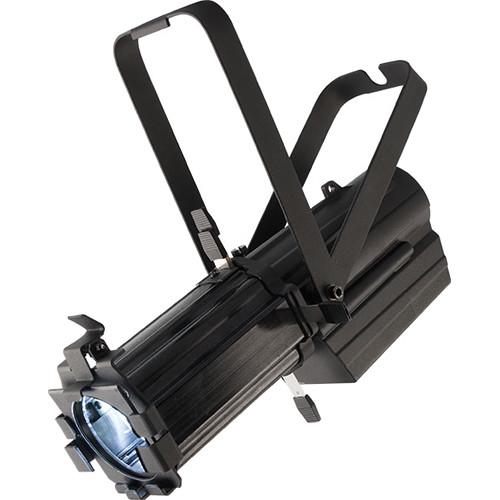

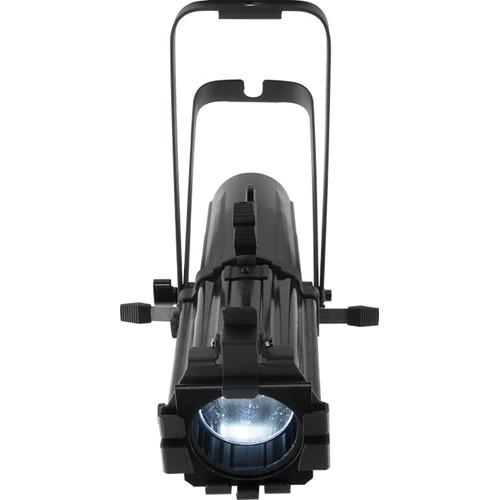

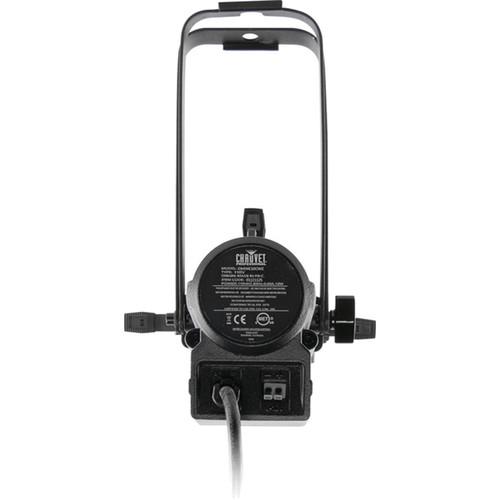

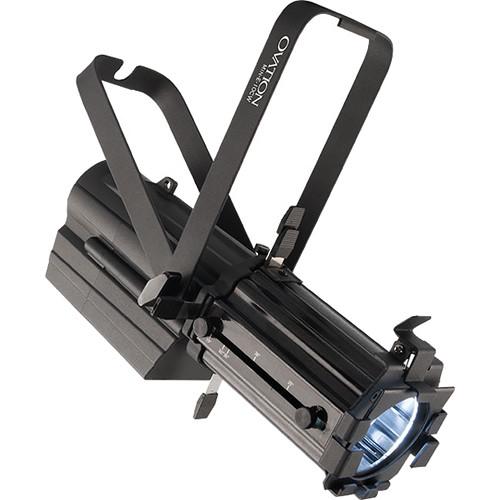

User Manual for CHAUVET PROFESSIONAL Ovation Min-E-10CW LED Ellipsoidal Spot with 19 to 36 Degree Lens Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation Min-E-10CW LED Ellipsoidal
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Ovation Min-E-10CW LED Ellipsoidal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The Ovation Min-E-10CW LED Ellipsoidal Spot with 19 to 36 Degree Lens from Chauvet is an ideal complement in form and function to the bigger Ovation E-10WW. Powered by a 10W cool white LED, this small, discreet ellipsoidal features a four-blade shutter system to efficiently and cleanly crop light from unwanted areas. Interchangeable lens tubes slide in and lock down at the desired focus point. The Ovation Min-E-10CW is easily dimmed using external dimmer packs appropriate for LED lighting. Now everyone can enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems. - Attributes
-
- Compact LED ellipsoidal outputs a hard-edged beam ideal for gobo projection
- Fade the LED by connecting it to a dimmable circuit
- Highlight areas by altering the projected beam with built-in framing shutters
- Easily print your own gobos on transparency film or use standard "E" size glass or metal gobos
UPC: 781462214739 In the Box CHAUVET PROFESSIONAL Ovation Min-E-10CW LED Ellipsoidal Spot with 19 to 36 Degree Lens Gobo Holder Gel Frame Safety Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation Min-E-10CW LED Ellipsoidal Spot with 19 to 36 Degree Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Min-E-10CW Specs | Light Source | 1 x LED (CW) 13 W, (800 mA), 50,000 hours life expectancy | | Gobos | Optional size E | | Focus | Manual | | Beam and Field Angle | Beam: 16° (19°), 20° (26°), 25° (36°)
Field: 18° (19°), 26° (26°), 34° (36°) | | Illuminance | 438 (19°), 231 (26°), 134 (36°) lux @ 16.4' (5 m) | | Shutter/Strobe | No | | Lens | 19 to 36° | | Dimming | Optional external dimming system or dimmer | | Color Temperature | 5741°K @ full power | | IP Rating | IP20, dry location | | Cable | Edison plug to 1.8' (0.3 m) cable hardwired to unit | | Input Voltage | 120 VAC, 60 Hz | | Power and Current | 12 W, 0.086 A @ 120 VAC, 60 Hz | | Approvals | CE, MET | | Dimensions | Fixture with Lens Extended: 13.4 x 5.1 x 5.2" (34.0 x 13.0 x 13.3 cm) | | Weight | Fixture without Lens: 2.4 lb (1.1 kg)
Fixture with Lens: 4 lb (1.8 kg) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 15.4 x 6.4 x 6.3" |
