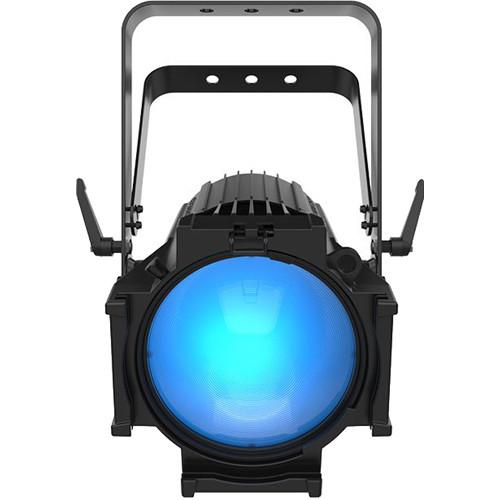

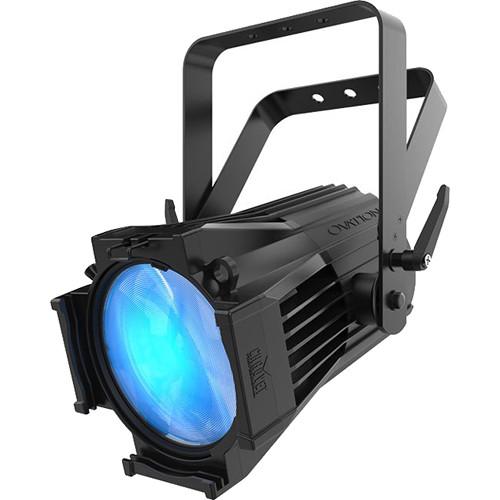

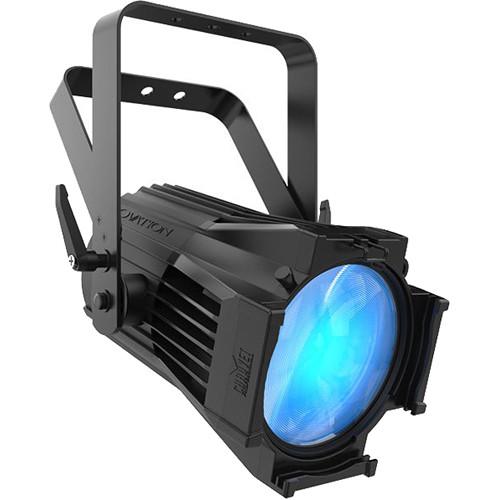

User Manual for CHAUVET PROFESSIONAL Ovation P-56FC Compact Silent Full Color PAR Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation P-56FC Compact Silent
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Ovation P-56FC Compact Silent contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The CHAUVET PROFESSIONAL Ovation P-56FC Compact Silent Full Color PAR Light is a compact and virtually silent PAR fixture that produces a homogenized, single-source, flat and even field of true full color light with a high CRI. The light source includes 10 red, 10 green, 8 blue, 8 amber, and 12 lime for a total of 48 LEDs, which can be blended for a wide palette of color-mixing options. When used with the included interchangeable lens plates beam-shaping accessories, the P-56FC can produce wide-beam angles for theatrical and studio applications.The virtually silent and bright PAR features smooth 16-bit dimming, as well as RDM and PWM for easy setup. Other features include four dimming modes, DMX and RDM control, DMX channels 1, 3, 5, 7, 10, 12, 13, 15, or HSV, 9 personalities, built-in automated programs, and both 3- and 5-pin XLR DMX connectors. -
- Full color PAR-style fixture with homogenized single source of light
- Interchangeable lens plates included for medium and wide beam angles
- Flat, even field of light
- Quiet operation for use in any situation with fan speed control
- RDM and variable pulse width modulation for setup ease
- Accepts standard 7.5” beam-shaping accessories
- 16-bit dimming resolution for smooth fades
UPC: 781462218485 In the Box CHAUVET PROFESSIONAL Ovation P-56FC Compact Silent Full Color PAR Light (RGBA+Lime) Neutrik powerCON Power Cord Gel Frame Holder Medium Lens Plate Wide Lens Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation P-56FC Compact Silent Full Color PAR Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL P-56FC Specs | Optical | Light Source: 48 LEDs (10 Red, 10 Green, 8 Blue, 8 Amber, 12 Lime) 3 to 5 W, 1 A
Life Expectancy: 50,000 Hours
Color Temperature (Range): 2800 to 6500K
Color Temperature (at Full): 4889K
CRI (3200): 90
Beam Angle (Medium Lens): 21°
Beam Angle (Wide Lens): 52°
Field Angle (Medium Lens): 35°
Field Angle (Wide Lens): 82°
Lumens (Medium Lens): 5436
Lumens (Wide Lens): 5216
Illuminance (Medium Lens): 1350 Lux at 16.4' / 5.0 m
Illuminance (Wide Lens): 254 Lux at 16.4' / 5.0 m
Selectable PWM: 600, 1200 , 2000, 4000, 6000, and 25,000 Hz | | Dynamic Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-In Automated Programs: Yes | | Connections | Power Connection: Edison (Local) Plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON

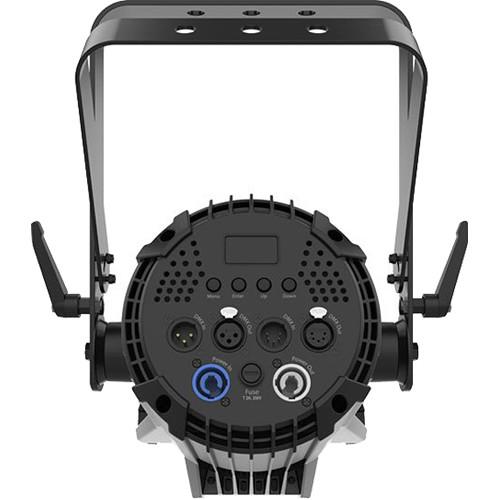

Data Connectors: 3- and 5-Pin XLR
Cable Length (Power): 5' / 1.5 m | | Control | Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15, or HSV
Modes/Personalities: 4 Personalities (1, 3, 5, 7, 10, 12, 13, 15, HSV) | | Electrical | Input Voltage:
100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking:
9 Units @ 120 V
16 Units @ 208 V
17 Units @ 230 V
Power and Current:
176 W, 1.448 A @ 120 V, 60 Hz
175 W, 0.844 A @ 208 V, 60 Hz
180 W, 0.777 A @ 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C | | Material of Construction | Housing Material: Aluminum Die-Cast
Accessory Holder/Gel Frame Size: 7.5" / 19.1 cm | | Dimensions (L x W x H) | 12.5 x 12.8 x 14.3" / 31.7 x 32.6 x 36.3 cm | | Weight | 12.2 lb / 5.5 kg |
