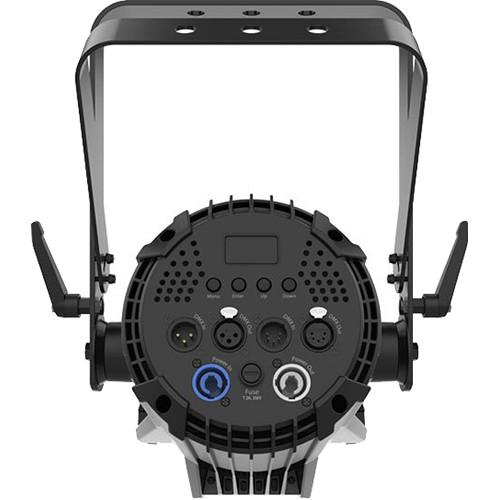

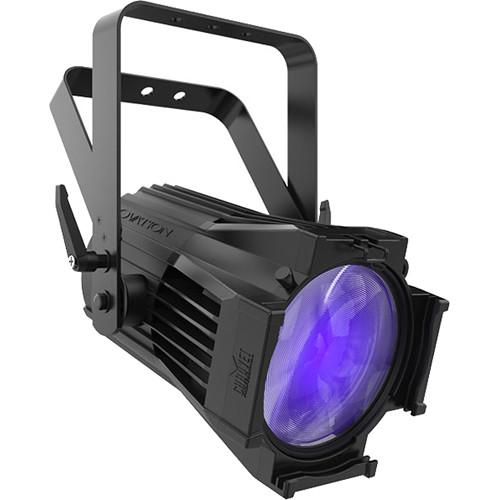

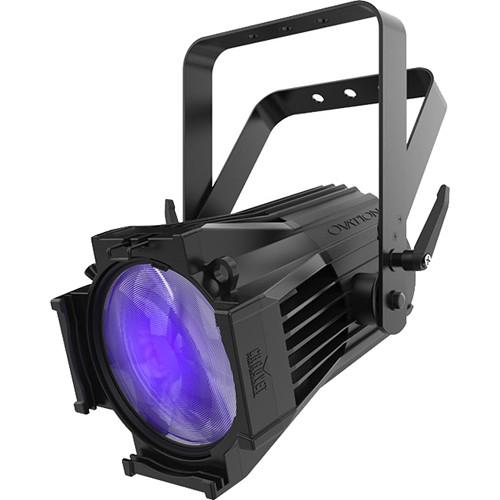

User Manual for CHAUVET PROFESSIONAL Ovation P-56UV Compact Silent UV PAR Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation P-56UV Compact Silent
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Ovation P-56UV Compact Silent contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The Ovation P-56UV Compact Silent UV PAR Light from CHAUVET Professional is a compact and virtually silent par fixture that produces a flat and even field of true UV light with minimal projected visibility via a single-source LED. It can be used with the included interchangeable lens plates that accept standard 7.5" beam shaping accessories to produce wide beam angles for theatrical and studio applications.The virtually silent and bright par features smooth 16-bit dimming, as well as RDM and PWM for easy setup. Other features include: 4 dimming modes, DMX and RDM control, DMX channels 1, 2, 3 or 6, 4 personalities, 3- and 5-pin XLR connectors, and built-in automated programs. - True (365nM) UV light with homogenized single source
- Minimal projected visible light
- Quiet operation for use in any situation with fan speed control
- RDM and variable pulse-width modulation for setup ease
- Accepts standard 7.5" beam-shaping accessories
- Selectable dimming curves for smooth fades or snap-on use
- 16-bit dimming resolution for smooth fades
- Compact design with homogenous single source of blacklight
UPC: 781462218478 In the Box CHAUVET PROFESSIONAL Ovation P-56UV Compact Silent UV PAR Light Neutrik powerCON Power Cord Gel Frame Holder Accessories Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation P-56UV Compact Silent UV PAR Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Ovation P56UV Specs | Optical | Light Source: 1 UV LED, 114 W (3 A)
Life Expectancy: 50,000 Hours
Coverage Angle (Wide Lens): 56°
Radiant Power: 33,022 mW
Selectable PWM: 600, 1200 , 2000, 4000, 6000, and 25,000 Hz | | Dynamic Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Dim Modes: 4
Built-In Automated Programs: Yes | | Connections | Power Connection: Edison (Local) plug to Neutrik powerCON IP65
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3-and 5-pin XLR
Cable Length (Power): 5' / 1.5 m | | Control | Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 Personalities (1, 2, 3, and 6) | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 13 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
Power and Current: 125 W, 1.03 A @ 120 V, 60 Hz
Power and Current: 130 W, .62 A @ 208 V, 60 Hz
Power and Current: 136 W, .58 A @ 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C | | Material of Construction | Housing Material: Aluminum Die-Cast | | Dimensions (L x W x H) | 12.48 x 12.8 x 14" / 31.7 x 32.6 x 36.3 cm | | Weight | 12 lb / 5.4 kg |
