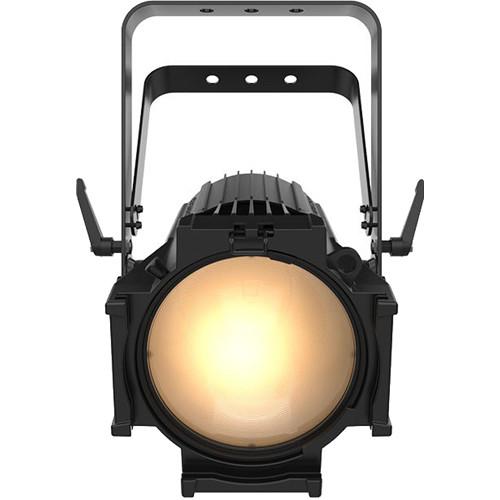

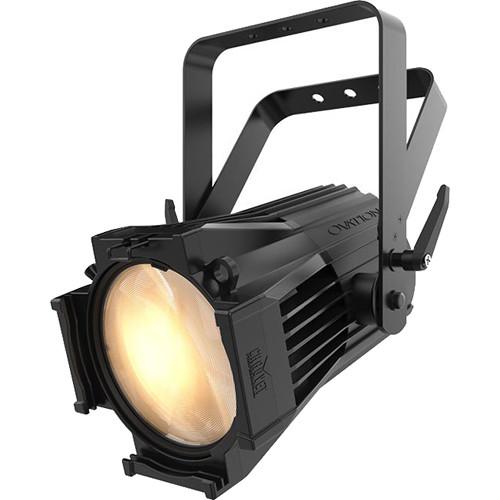

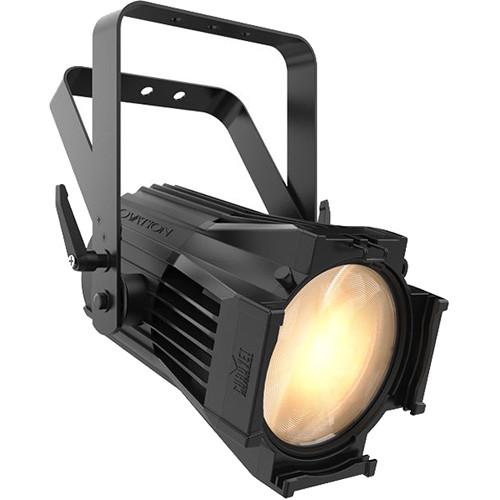

User Manual for CHAUVET PROFESSIONAL Ovation P-56WW Compact Silent WW PAR Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation P-56WW Compact Silent
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Ovation P-56WW Compact Silent contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The CHAUVET PROFESSIONAL Ovation P-56WW Compact Silent PAR Light is a compact and virtually silent PAR fixture that produces a homogenized, single-source, flat, and even field of warm white light with high CRI that is ideal for theatrical and studio applications. The fixture's light source utilizes a single 230W warm white LED to produce a color temperature of 3422K at full.When used with the included interchangeable lens plate beam-shaping accessories (narrow, medium, and wide), the P-56WW can produce a wide range of beam angles. The virtually silent and bright PAR features smooth 16-bit dimming, as well as RDM and PWM for easy setup. Other features include four dimming modes, DMX and RDM control, DMX channels 1, 2, 3 or 6, four personalities, and both 3- and 5-pin XLR DMX connectors. -
- Warm white PAR-style fixture with output comparable to a 1000W PAR 64 lamp
- 16-bit dimming resolution for smooth fades
- Compact design with homogenous single source of light
- Flat, even field of light
- Quiet operation for use in any situation
- Interchangeable lens plates included for narrow, medium and wide beam angles
UPC: 781462218232 In the Box CHAUVET PROFESSIONAL Ovation P-56WW Compact Silent WW PAR Light (Warm White) Neutrik powerCON Power Cord Gel Frame Holder Wide Lens Plate Medium Lens Plate Narrow Lens Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation P-56WW Compact Silent WW PAR Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL P-56WW Specs | Optical | Light Source: 1 LED (WW) 230 W, 3.2 A, 3422K
Life Expectancy: 50,000 Hours
Color Temperature (Full): 3422K
CRI: 98.1
Beam Angle (Narrow Lens): 11°
Beam Angle (Medium Lens): 22°
Beam Angle (Wide Lens): 48°
Beam Angle (Wide Lens with Egg Crate): 37°
Field Angle (Narrow Lens): 24°
Field Angle (Medium Lens): 39°
Field Angle (Wide Lens): 81°
Field Angle (Wide Lens with Egg Crate): 67°
Lumens (with Narrow Lens): 10,326
Lumens (with Medium Lens): 10,728
Lumens (with Wide Lens): 10,687
Illuminance (with Narrow Lens): 6,680 Lux at 16.4’ / 5.0 m
Illuminance (with Medium Lens): 2470 Lux at 16.4’ / 5.0 m
Illuminance (with Wide Lens): 475 Lux at 16.4’ / 5.0 m
Selectable PWM: 600, 1200, 2000, 4000, 6000, 15,000 Hz | | Dynamic Effects | Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Dim Modes: 4
Built-In Automated Programs: Yes | | Connections | Power Connection: Edison (Local) Plug to Neutrik powerCON
Data Connectors: 3- and 5-Pin XLR
Cable Length (Power): 5' / 1.5 m | | Control | Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3, or 6
Modes/Personalities: 4 Personalities (1, 2, 3, 6) | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 7 Units at 120 V; 13 Units at 208 V; 14 Units at 230 V
Power and Current: 208 W, 1.72 A at 120 V, 60 Hz
Power and Current: 215 W, 1.02 A at 208 V, 60 Hz
Power and Current: 216 W, .93 A at 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C | | Material of Construction | Housing Material: Aluminum Die-Cast
Accessory Holder/Gel Frame Size: 7.5" / 19.1 cm | | Dimensions (L x W x H) | 12.5 x 12.8 x 14.3" / 31.7 x 32.6 x 36.3 cm | | Weight | 11.6 lb / 5.3 kg |
