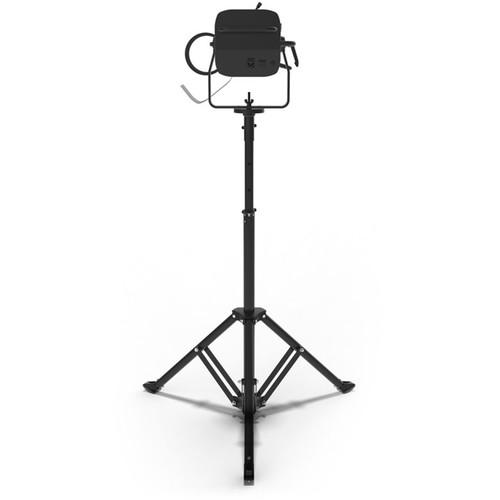

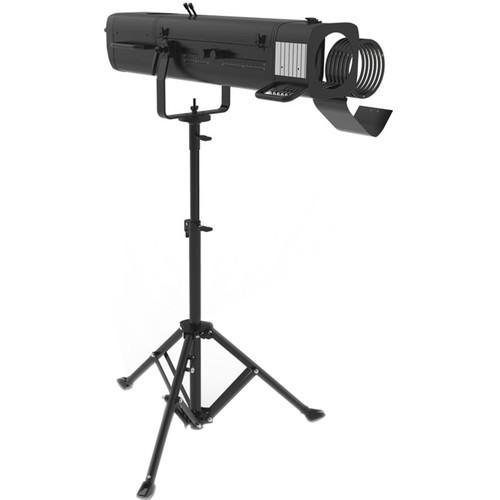

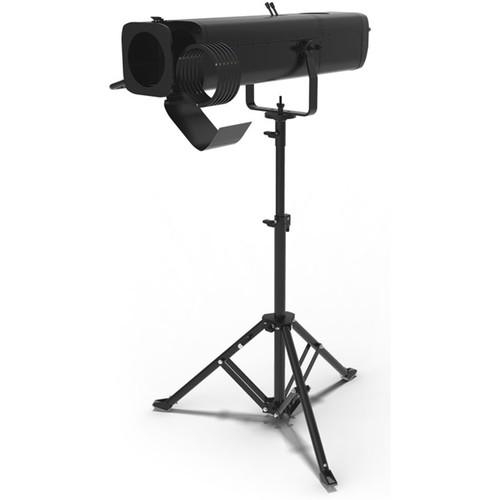

User Manual for CHAUVET PROFESSIONAL Ovation SP-300CW LED Followspot Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Ovation SP-300CW LED Followspot
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Ovation SP-300CW LED Followspot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description Follow actors and performers on stage with a crisp cool white beam with the Ovation SP-300CW LED Followspot from CHAUVET PROFESSIONAL. This quiet, medium-throw LED followspot offers onboard manual dimming and a full-blackout iris for beam control. Smooth manual sliders enable you to zoom and focus to adjust the beam pattern from spot to flood. A six-slot manual boomerang is attached to the front of the unit for quiet color changing using color gels (starter pack included). - High-power LED followspot with stand for mid-sized venues
- 5500K cool white spot with 10° to 20° zoom
- Full-blackout, 24-leaf iris
- Six-position, removable color changer
- Quiet operation for use in studio and theater applications
- Easy access hatch for cleaning optics
- Black-finished steel housing
UPC: 781462218003 In the Box CHAUVET PROFESSIONAL Ovation SP-300CW LED Followspot Seetronic Powerkon IP65 Power Cord Tripod Stand Starter Pack of Gels Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Ovation SP-300CW LED Followspot in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL SP-300CW Specs | | | Light Source | 1 x Cool White LED, 260 W, 3.6 mA | | Life Expectancy | 50,000 hours | | Color Temperature | At Full: 5524K | | CRI | 88 | | Beam Angle | 10° to 14° | | Field Angle | 10° to 18° | | Zoom Angle | 10° to 18° | | Lumen Output | At 9°: 6401 lumens
At 17°: 6453 lumens | | Illuminance | Spot: 17,296 lux at 16.4' / 5 m
Flood: 7330 lux at 16.4' / 5 m | | PWM Frequency | 2300 Hz | | | | Color Effects | 6-Position, Removable Color Changer
Starter Pack of Gels Included | | Dimmer Type | Manual, Linear | | Zoom | Manual | | Focus | Manual | | Iris | 24-Leaf, Full Blackout | | | | Power Connection Type | Edison (Local) to Seetronic Powerkon (powerCON Compatible) | | Power Cable Length | 5' / 1.5 m | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power and Current | 120 VAC, 60 Hz: 207 W, 1.69 A
208 VAC, 60 Hz: 211 W, 1.02 A
230 VAC, 50 Hz: 211 W, 0.92 A | | | | Certification and Compliance | CE, MET | | IP Rating | IP20 | | Operating Temperature | -4 to 113°F / -20 to 45°C | | | | Housing Material | Steel | | Mounting | Yoke, Tripod Stand | | Diameter | With Stand Open at Optimal Position: 33.8" / 0.9 m (Stand); 52.8" / 1.3 m (Fixture)
With Stand Open at Widest Position: 39.6' / 1 m (Stand); 52.8" / 1.3 m (Fixture) | | Dimensions | Without Stand: 45.8 x 13.98 x 15.55" / 115.0 x 35.5 x 39.5 cm
With Stand Open at Optimal Position: 46.8 x 13.98 x 62.4" / 118.9 x 35.5 x 158.5 cm
With Stand Open at Widest Position: 46.8 x 13.98 x 81.6" / 118.9 x 35.5 x 207.3 cm | | Weight | 49 lb / 22.2 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
