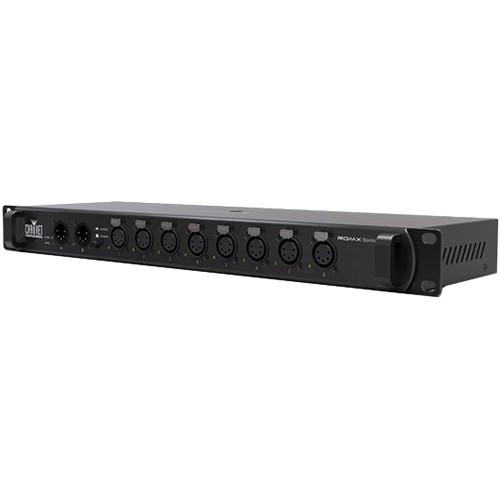

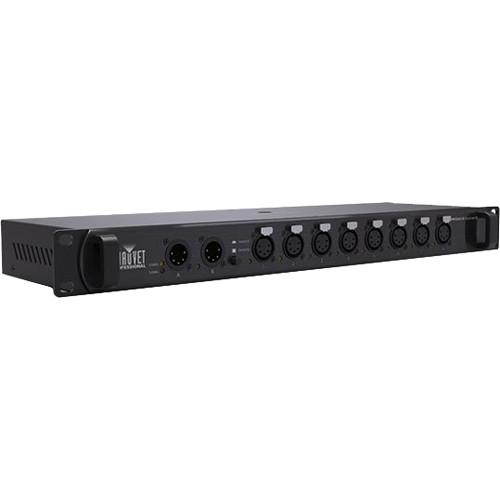

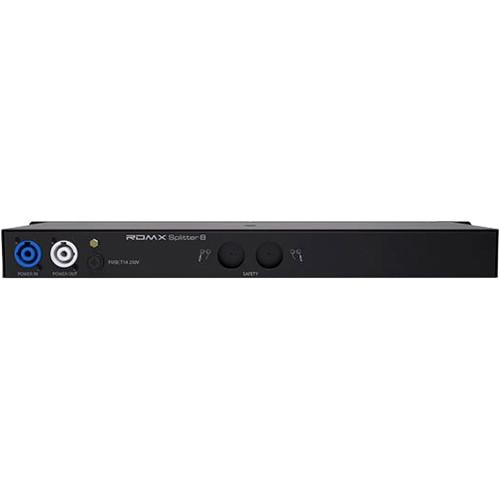

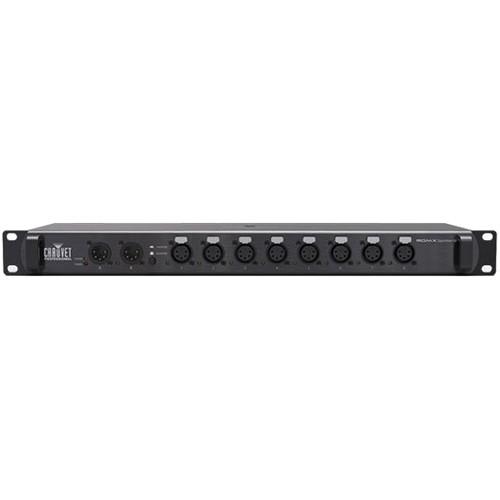

User Manual for CHAUVET PROFESSIONAL RDMX Splitter 8 Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL RDMX Splitter 8
- Product category: DMX Devices CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DMX Devices
 |
User manual for the CHAUVET PROFESSIONAL RDMX Splitter 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The RDMX Splitter 8 from Chauvet is an RDM/DMX opto-splitter that features eight outputs and two inputs which allow the unit to support single or dual universes. Its powerCON power linking facilitates splitting at a fixture where power and data are already present. Suitable for worldwide use, the steel and aluminum-constructed Splitter 8 has an auto-ranging 100 to 240 VAC power supply and can be rack or truss-mounted. - Benefits
-
- Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button or functions as a 2x4 A/B splitter
- Rugged reinforced housing supports 1 RU rackmount and mounting to pipe and truss without additional accessories
- Electrical isolation between inputs and outputs up to 1000V between ports
- powerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present
- Power linking also makes it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are effortless
UPC: 781462218119 In the Box CHAUVET PROFESSIONAL RDMX Splitter 8 Neutrik powerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL RDMX Splitter 8 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL RDMX Splitter 8 Specs | Material of Construction | Steel and aluminum | | Connections | Power Connection: Edison (local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Device Data Inputs: 5-pin XLR (2 total)
Device Data Outputs: 5-pin XLR (8 total)
Power Cable: length: 5.0' / 1.5 m | | Control | Control Protocol: DMX, RDM pass-thru
Modes: 1 x 8 and 2 x 4 | | Electrical | Input Voltage: 100-240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 15 A
Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz | | Rack Mount | 1 RU Height: 1.75" / 44.5 mm | | Finish | Black | | IP Rating | IP20, dry location | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Certifications | CE | | Dimensions | 19 x 5.75 x 1.77" / 483 x 146 x 45 mm | | Weight | 4.2 lb / 1.9 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
