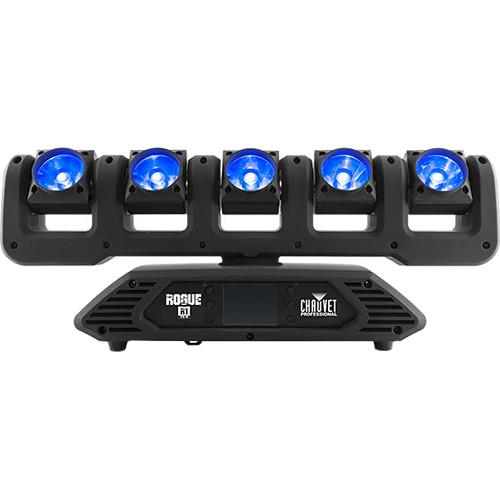

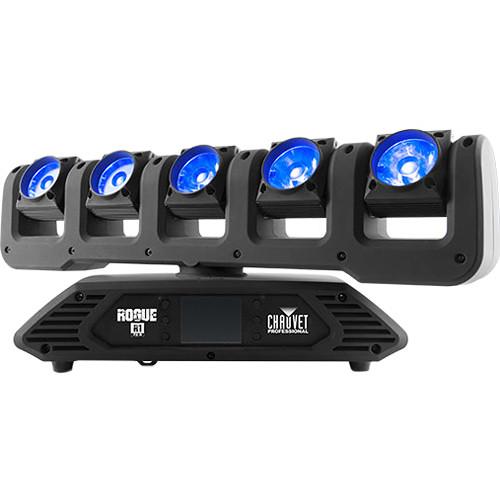

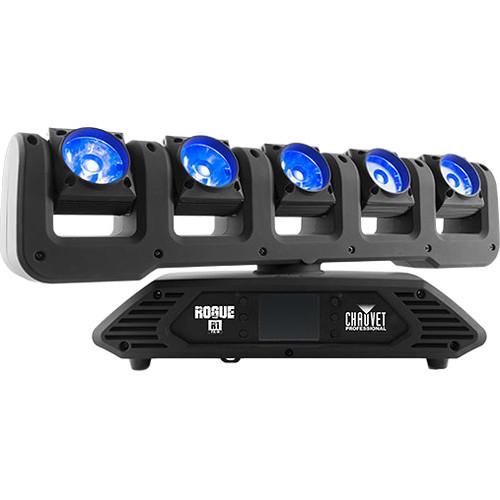

Product description The Rogue R1 FX-B from Chauvet orchestrates infinite pan and tilt rotations for its 5 individually controlled heads, each powered by a pixel-mappable 15W RGBW LED. Crisp beams, quick movement, and bright output create remarkable aerial effects. Control is achieved with DMX, Art-Net, sACN, or Kling-Net. -
- Fully-featured RGBW LED yoke-effect beam fixture with pixel mapping
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
- Built-in color and tilt macros for quick design possibilities
- Continuous movement of pan and tilt functions
- Individual control of all five heads for movement and output
- Quiet operation for a wide range of installation situations
- Move-in-black function for stealthy repositioning
- DMX, WDMX, sACN, Art-Net, and Kling-Net control for full flexibility
- 7° beam angle to create crisp and defined areal beam effects
- User-selectable PWM frequencies to eliminate camera roll
- Battery backup display with auto-rotate depending on fixture orientation
In the Box CHAUVET PROFESSIONAL Rogue R1 FX-B Multi-Beam Moving Head LED Light Edison (Local) Plug to Neutrik powerCON Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Rogue R1 FX-B Multi-Beam Moving Head LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Rogue R1 FX-B Specs | Light Source | 5 x RGBW LEDs, 15 W (4 A) | | Life Expectancy | 50,000 hours | | Illuminance | 5361 lux @ 16.4' / 5 m | | Beam Angle | 7° | | Field Angle | 11° | | Pan Range | Infinite / 540° / 360 ° / 180° | | Tilt Range | Infinite / 540° / 270° / 180° | | Dimmer | Electronic | | Dimmer Curves | 4 | | Shutter/Strobe | Electronic | | Strobe Rate | 0 - 20 Hz | | Color Mixing | RGBW, RGBW (16-bit) | | Color Temperature | 2800 to 6500K | | Protocols | DMX, Art-Net, sACN, Kling-Net*
*No pan/tilt support in Kling-Net | | DMX Connectors | Input: XLR 3-pin, XLR 5-pin, etherCON
Output: XLR 3-pin, XLR 5-pin, etherCON | | DMX Channel Modes | 9, 15, 17, 18, 20, 23, 25, or 47 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: powerCON
Output: powerCON | | Power Linking | 120 V: 9 units
208 V: 15 units
230 V: 18 units | | Power Cable | Edison to powerCON | | Power Cable Length | 5' / 1.5 m | | Power Consumption | 207 W, 1.68 A @ 120 V, 60 Hz
200 W, 0.938 A @ 208 V, 60 Hz
197 W, 0.876 A @ 230 V, 50 Hz | | Housing Material | High-impact flame-retardant polymer | | IP Rating | IP20 | | Working Position | Vertical or inverted | | Cooling | Fan-cooled | | Certifications & Approvals | CE, MET | | Dimensions | 25.19 x 7.05 x 9.72" (640 x 179 x 247 mm) | | Weight | 24 lb (11 kg) |
