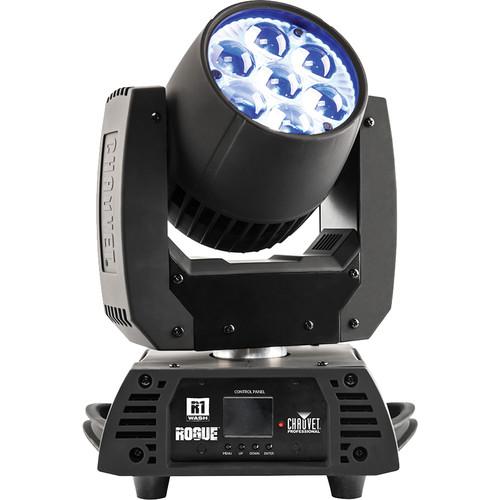

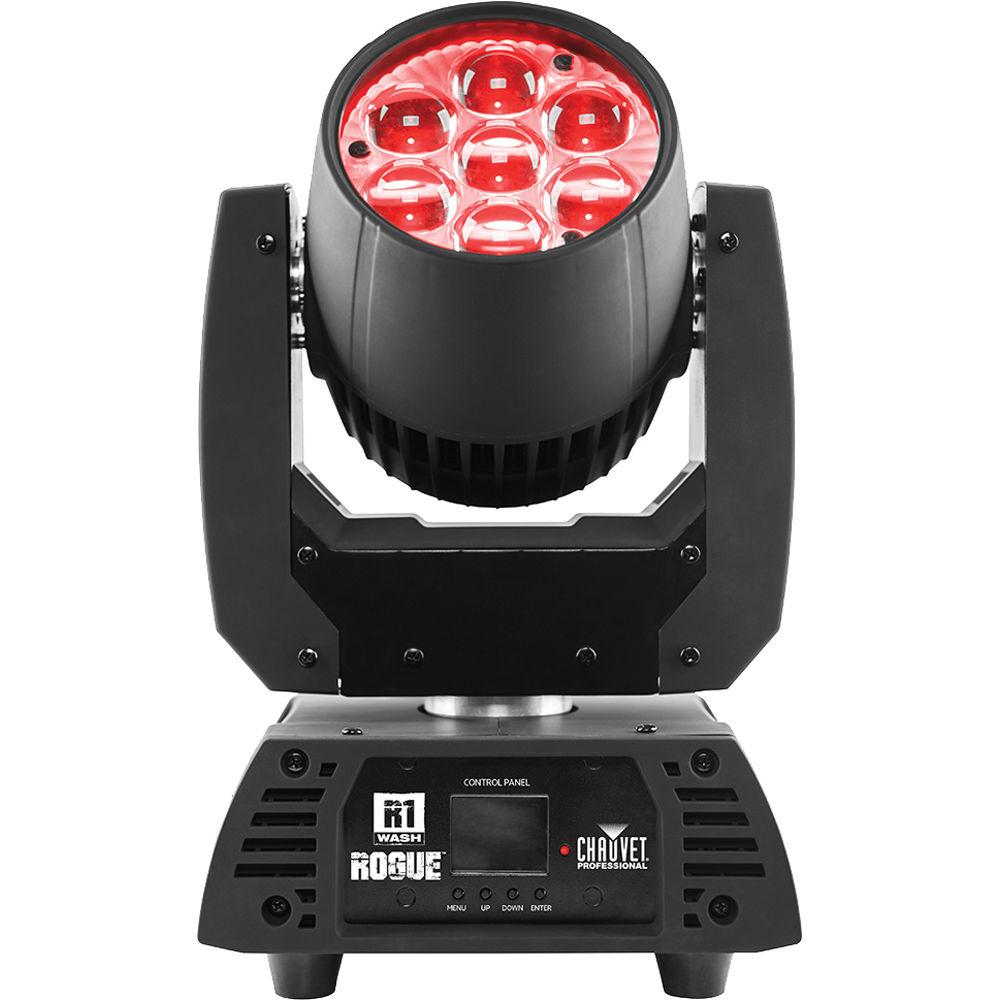

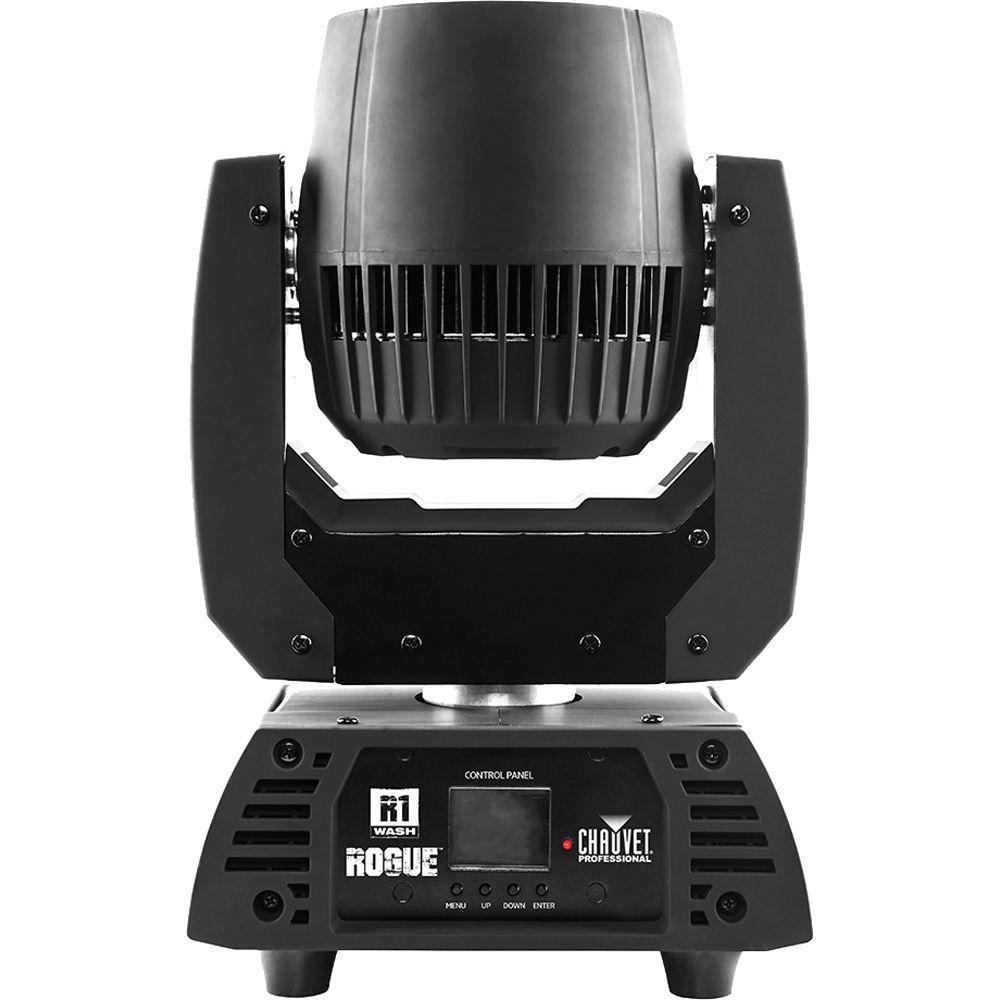

Product description The CHAUVET PROFESSIONAL Rogue R1 Wash is an LED moving-head wash light with a "bubble" lens design for accurate color rendering and dynamic visual effects. Featuring wide, 8 to 30° beam angles and 11 to 48° field angles with a motorized zoom, fast and precise pan/tilt movements with movement macros, and a variable strobe, it is an ideal addition to any touring rig or permanent installation, for energizing dance floors, event spaces, and more.The Rogue R1 Wash is powered by seven, 15W quad-color RGBW LEDs (red, green, blue, white), which allow for smooth color mixing with six distinct dimming modes. The unit can be controlled using the built-in OLED display or, for programming versatility, via simple and complex DMX channel profiles.In addition to DMX daisy-chaining, the Rogue R1 Wash supports power linking via its pass-through powerCON power connectors, minimizing time spent on cable runs and finding power outlets. You can daisy-chain up to 10 fixtures in a 120V environment, or up to 21 fixtures in a 230V environment. Included is an Omega bracket with mounting hardware and a Neutrik powerCON power cord. - Key Features
-
- Moving head fixture for bright, dynamic color washes
- 7 x 15W quad-color RGBW LEDs (red, green, blue, white)
- “Bubble” lens design for accurate color rendering and dramatic visual effects
- Fast and precise pan/tilt movement
- Pan/tilt: 540°/230°
- 8 to 30° beam angle and 11 to 48° field angle, with motorized zoom
- Variable strobe
- Color-temperature presets
- Built-in automated programs
- Movement macros
- Standalone color mixing
- Electronic dimming: 0-100%, with six distinct dimming modes for advanced control
- 4 x DMX channels
- Simple and complex DMX channel profiles for programming versatility
- Easy to read OLED display with simple, effective menu options
- 3- and 5-pin DMX input/output connections
- Daisy-chain power for up to 10 units at 120V or 21 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- Included Omega mounting bracket fits all Rogue, Next, and Legend fixtures
UPC: 781462212575 In the Box CHAUVET PROFESSIONAL Rogue R1 Wash RGBW LED Moving Head Wash Light Neutrik powerCON Power Cord Omega Bracket with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Rogue R1 Wash RGBW LED Moving Head Wash Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Rogue R1 Wash Specs | Light Source | 7 x 15 W quad-color RGBW LEDs (red, green, blue, white)
Current: 980 mA
Life Expectancy: 50,000 hours | | Illuminance | Narrow (11°): 3098 lux at 16.4' / 5 m
Wide (48°): 299 lux at 16.4' / 5 m | | Color Temperature | 2800 to 10,000K | | Beam and Field Angle | Beam Angle: 8 to 30°
Field Angle: 11 to 48°
| | PWM Frequency | 1200 Hz | | Pan & Tilt | 540° / 230° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 230° | | Effects | Electronic Dimming: 0-100%, with six dimming modes
Shutter/Strobe: Electronic, variable from 0 to 20 Hz
Zoom: Motorized
Standalone color mixing
Color-temperature presets
Built-in automated programs | | DMX Interface | Channels: 14, 15, 19, or 21
Modes/Personalities: 4 personalities (14CH, 15CH, 19CH, or 21CH)
Connectors: 3-pin XLR in/out and 5-pin XLR in/out | | Display/Controls | OLED display with 4-button control panel | | Power Linking | 10 units at 120 VAC
18 units at 208 VAC
21 units at 230 VAC | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: 1 x Neutrik powerCON
Output: 1 x Neutrik powerCON | | Power Cord | Edison plug to Neutrik powerCON (included)
Length: 5.0' / 1.5 m | | Power and Current | 161 W, 1.34 A at 120 VAC, 60 Hz
141 W, 0.72 A at 208 VAC, 60 Hz
139 W, 0.62 A at 230 VAC, 50 Hz | | Fuse | F 4 A, 250 V | | Construction | Housing Material: High-impact, flame-retardant polymer
Exterior Color: Black | | Maximum Operating Temperature | External: 113°F / 45°C | | IP Rating | IP20, dry location | | Approvals | CE, MET, RoHS | | Dimensions | 7.36 x 10.43 x 13.94" / 187 x 265 x 354 mm | | Weight | 13 lb / 5.9 kg | | | | Package Weight | 17.1 lb | | Box Dimensions (LxWxH) | 15.8 x 13.1 x 10.2" |
