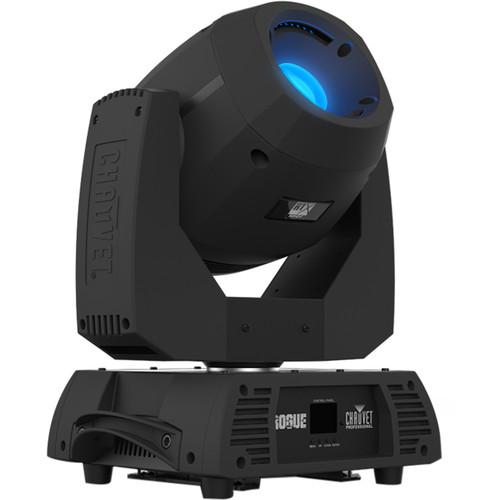

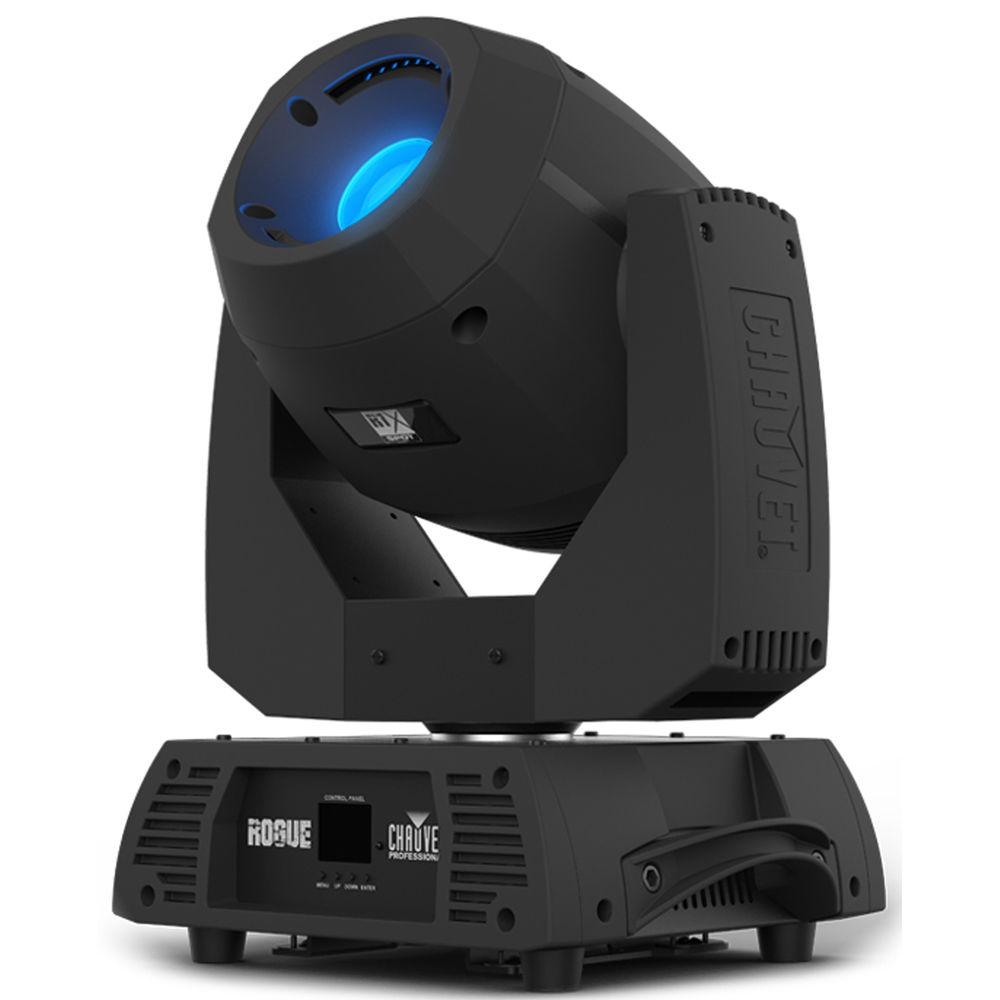

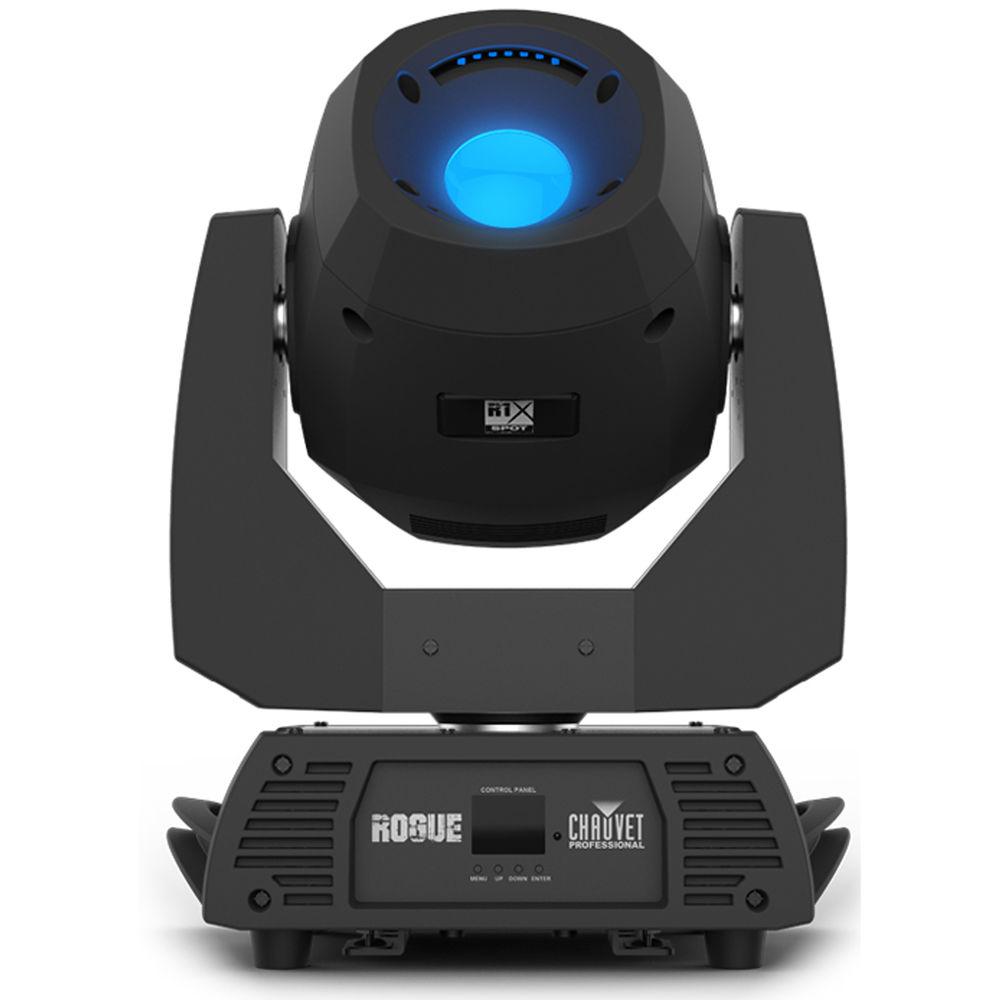

Product description The CHAUVET PROFESSIONAL Rogue R1X Spot is a sophisticated moving head LED spotlight that offers a vast selection of dynamic colors and effects to energize your dance floor or live stage productions. It features a color wheel, two gobo wheels with gobo-morphing technology, as well as motorized focus, 3-facet prism, frost, and iris effects. With variable strobe, fast and precise head movements, movement macros, move-in-black functionality, and more, this versatile fixture allows for flexible effect-design and powerful show-control.The Rogue R1X Spot is powered by a bright, 170W, cool-white LED that has a beam angle of 16°. The color wheel comes with eight colors plus white and split, and is capable of continuous, variable-speed scrolling. The two gobo wheels include seven rotating gobos plus open on wheel 1, and eight fixed gobos plus open on wheel 2. Each wheel features gobo shake and continuous, variable-speed scrolling.The unit is controlled via DMX with two channel modes (16 or 19). In addition to DMX daisy-chaining, the Rogue R2X Spot supports power-linking via its pass-through powerCON power connectors. You can daisy-chain up to five fixtures in a 120V environment or up to 10 fixtures in a 230V environment. Included are two Omega brackets with mounting hardware and a Neutrik powerCON power cord. - Key Features
-
- Compact, moving-head fixture with bright 170W, cool-white LED light engine, for punchy and bold beams
- Motorized focus, three-facet rotating prism, iris, and variable frost offer creative beam control
- Quiet operation ideal when used in low-noise environments
- Precision-designed optics for hard-edged effects
- Color wheel with eight colors, split-color ability, and continuous, variable-speed scrolling
- Two gobo wheels, one fixed-slot scrolling wheel and one rotating, interchangeable, scrolling wheel
- Gobo shake and continuous, variable-speed scrolling effects
- Dual gobo wheels allow for gobo morphing effects between gobo wheels
- 0-100% LED dimming
- Beam angle: 16°
- Up to 540° pan and 250° tilt
- Variable strobe
- Move in black
- Movement macros
- DMX Channels: 16 or 19
- Simple and complex DMX channel profiles for programming versatility
- Reset over DMX
- RDM-enabled for remote addressing and troubleshooting
- Selectable PWM settings to maintain flicker-free operation on camera
- Selectable LED maximum output to match legacy Rogue R1 Spots
- 3- and 5-pin DMX input/output connections
- Daisy-chain power for up to 5 units at 120V or 10 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- Includes two Omega brackets with mounting hardware
UPC: 781462217440 In the Box CHAUVET PROFESSIONAL Rogue R1X Spot - 170W LED Moving Head Light Fixture with Gobos Neutrik powerCON Power Cord 2 x Omega Brackets with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Rogue R1X Spot - 170W LED Moving Head Light Fixture with Gobos in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Rogue R1X Spot Specs | Light Source | 170 W CW (cool-white) LED (7.4 A)
Color Temperature: 9491K (at full)
50,000 hours life expectancy | | Illuminance | 4620 lux at 16.4' / 5 m (total) | | Lumens | Source: 12,000 lumens
Output: 6700 lumens | | Beam and Field Angle | Beam Angle: 16.5°
Field Angle: 16.5° | | LED Power Output | 50 to 100 mW (selectable) | | PWM Frequency | 600, 1200, 6000, 15,000 Hz (selectable) | | Pan/Tilt | 540° / 250° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 250° | | Color Wheel | 8 colors + white (open), split colors, continuous scroll at variable speeds | | Gobo Wheels | Wheel 1: 7 gobos + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Wheel 2: 8 gobos + open (8 metal), continuous scroll at variable speeds | | Gobo Size | Gobo Wheel 1 (Rotating):
Positions 1, 2, 3, 4, and 7 (metal)
Size: 1.1" / 26.9 mm (outside), 0.9" / 22.5 mm (image), 0.01" / 0.5 mm (maximum thickness)
Gobo Wheel 1 (Rotating):
Positions 5 and 6 (glass)
Size: 1.0" / 25.0 mm (outside), 0.9" / 23.0 mm (image), 0.11 / 3 mm (maximum thickness) | | Effects | Dimmer: 0-100%, electronic
Shutter/Strobe: Electronic, variable from 0 to 22 Hz
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3 facets, motorized, rotating
Move in black | | Control Protocol | DMX, RDM | | DMX Channel Modes | 16 or 19 channels
Modes/Personalities: 2 personalities (16, 19) | | DMX Connectors | Input: XLR 3-pin and XLR 5-pin
Output: XLR 3-pin and XLR 5-pin | | Power Linking | 5 units at 120 V
9 units at 208 V
10 units at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 319 W, 2.69 A at 120 V, 60 Hz
303 W, 1.49 A at 208 V, 60 Hz

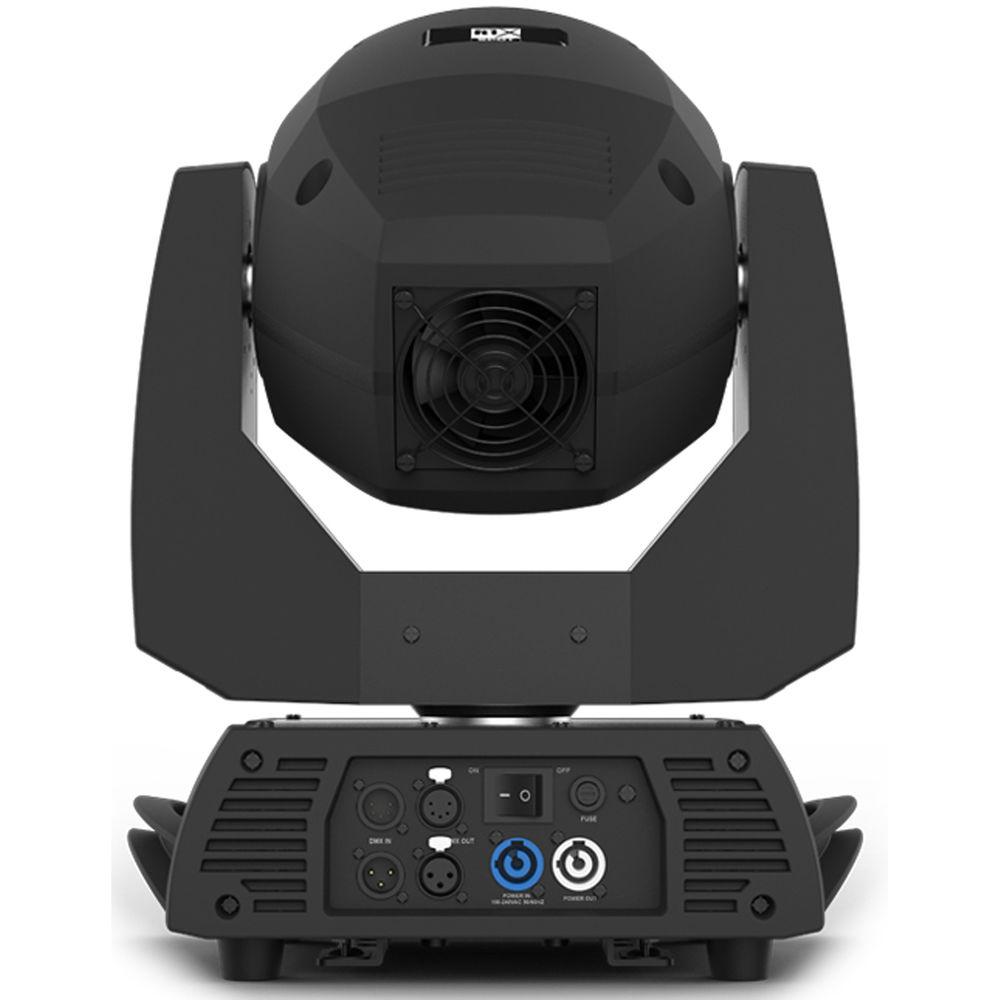

297 W, 1.33 A at 230 V, 50 Hz | | Fuse | F 7 A, 250 V | | Power Connections | Neutrik powerCON input
Neutrik powerCON output | | Power Cord | Edison plug to Neutrik powerCON (included)
Length: 5' / 1.5 m | | IP Rating | IP20, dry location | | Cooling System | Fan-cooled | | Operating Temperature | 113°F / 45°C, (external, maximum) | | Construction | Housing Material: High-impact, flame-retardant polymer
Exterior Color: Black | | Dimensions | 11.1 x 14.2 x 17.6" / 281.9 x 360.7 x 447.0 mm | | Weight | 37.6 lb / 17.1 kg | | | | Package Weight | 44.0 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 15.0" |
