Product description

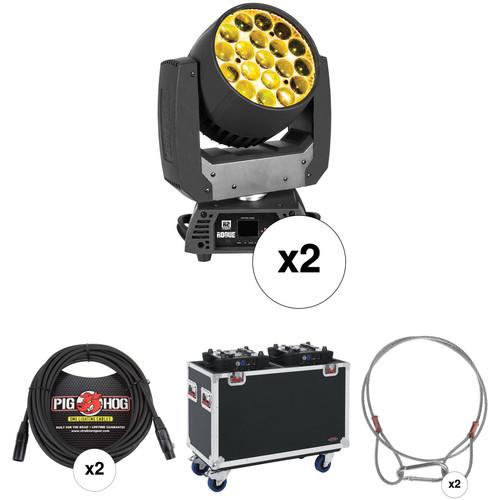

• 2 x CHAUVET PROFESSIONAL Rogue R2 Wash RGBW LED Moving Head Wash Light The CHAUVET PROFESSIONAL Rogue R2 Wash is an LED moving-head wash light with a "bubble" lens design for accurate color rendering and dynamic visual effects. Featuring wide, 8 to 30° beam angles and 12 to 49° field angles with a motorized zoom, fast and precise pan/tilt movements with movement macros, five LED zones for pixel mapping, and a variable strobe, it is an ideal addition to any touring rig or permanent installation, for energizing dance floors, event spaces, and more.The Rogue R2 Wash is powered by nineteen, 15W quad-color RGBW LEDs (red, green, blue, white), which allow for smooth color mixing with six distinct dimming modes. The unit can be controlled using the built-in OLED display, or via simple and complex DMX-channel profiles, for programming versatility.In addition to DMX daisy-chaining, the Rogue R2 Wash supports power-linking via its pass-through powerCON power connectors, minimizing time spent on cable runs and finding power outlets. You can daisy-chain up to 4 fixtures in a 120V environment, or up to 8 fixtures in a 230V environment. Included is an Omega bracket with mounting hardware and a Neutrik powerCON power cord.
  Key Features
  • • Moving head fixture for bright, dynamic color washes
    • 19 x 15W quad-color RGBW LEDs (red, green, blue, white)
    • “Bubble” lens design for accurate color rendering and dramatic visual effects
    • Fast and precise pan/tilt movement
    • Pan/tilt: 540°/230°
    • 8 to 30° beam angle and 12 to 49° field angle, with motorized zoom
    • 5 x zones of LED control for pixel mapping
    • Variable strobe
    • Color-temperature presets
    • Built-in automated programs
    • Movement macros
    • Standalone color mixing
    • Electronic dimming: 0-100%, with six distinct dimming modes for advanced control
    • 6 x DMX channels
    • Simple and complex DMX channel profiles for programming versatility
    • Easy to read OLED display with simple, effective menu options
    • 3- and 5-pin DMX input/output connections
    • Daisy-chain power for up to 4 units at 120V or 9 units at 230V
    • Multi-voltage operation: 100-240 VAC, auto-ranging
    • Included Omega mounting bracket fits all Rogue, Next, and Legend fixtures
  UPC: 781462212582
• 2 x Pig Hog 3-Pin XLR DMX Cable (25') Featuring extra-thick 8 mm wire, performance quality connectors, and tension-resistant stress relief, this 25' Pig Hog DMX Cable from Strukture is overbuilt precisely to stand up to the most grueling tour conditions imaginable. Consequently, Pig Hog cables have "no questions" lifetime guarantee. UPC: 672485347170
• Gator Cases G-Tour Flight Case for Two 250-Style Moving Head Lights (Black) Store, transport, and protect up to two 250-style moving head lights with the black G-Tour Flight Case from Gator Cases. The interior features two foam-padded, fabric lined compartments. Users will appreciate the durable 3/8" plywood construction, metal ball ends and trim, and the removable lid with latches (two locking). Two-person carries are made easier with the recessed spring-loaded handles located on each side. Roll the case with the large swivel casters (two locking).
  Casters
  • Four Penn-Elcom swivel casters (two locking)

  • The case ships with the casters removed
• 2 x Impact Safety Cable (32") Made of braided stainless steel, this 32" x 3mm Impact Safety Cable provides extra security for lights mounted on overhead pipes, dropped ceilings and grids. UPC: 847628577589

• 2 x Rogue R2 Wash RGBW LED Moving Head Wash Light sdezcxfcsrzrra
• Neutrik powerCON Power Cord
• Omega Bracket with Mounting Hardware
• Limited 2-Year Warranty

• 2 x Pig Hog - 3-Pin XLR DMX Cable (25')

• Gator Cases - G-Tour Flight Case for Two 250-Style Moving Head Lights (Black)

• 2 x Impact - Safety Cable (32")
