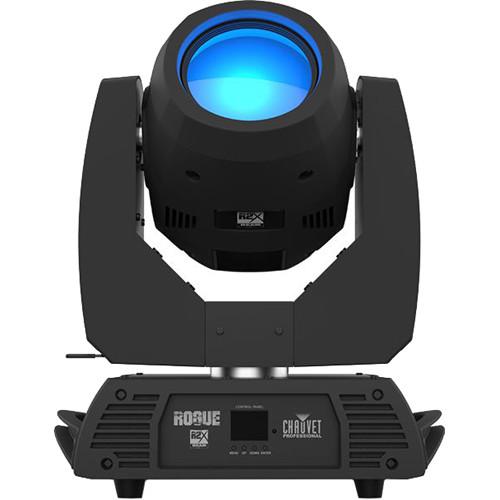

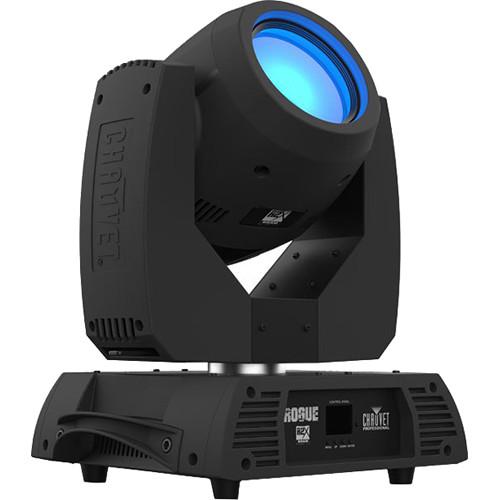

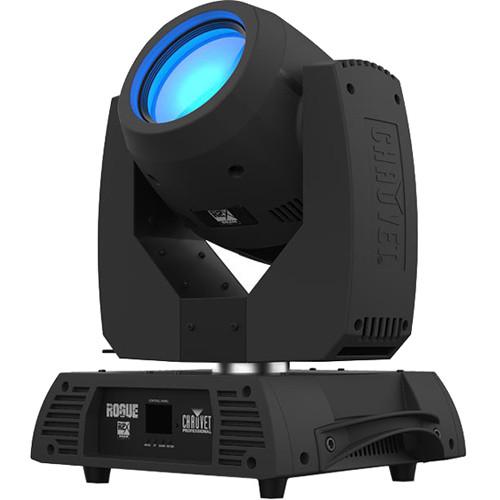

Product description - Rogue R2X Beam by CHAUVET Professional
The Rogue R2X Beam from CHAUVET Professional is the light cannon of the Rogue series fixtures, boasting an intense 134,000 lux at 15 meters from its 231W Osram Sirius lamp. It can be used for theatrical productions and live events to focus the beam down to 1° for extremely focused aerial effects and comes with 14 fixed colors in a scrollable, variable-speed color wheel, which also provides split-colors during event applications.Additionally, the Rogue R2X Beam unit is equipped with individually controllable and overlapping 8- and 5-facet prisms for an endless supply of creative and dynamic beams. Frost and focus options ensure even light distribution. The R2X unit allows you to control light shows using RDM and DMX protocols. - Fully featured, high-powered beam fixture with a single color wheel, single static gobo wheel, and overlapping prisms
- Fast and precise movement of pan and tilt functions
- Individually controllable and overlappable 8- and 5-facet prisms
- Frost for even light distribution
- Tight 1° beam for extremely focused areal effects
- RDM Enabled for remote addressing and trouble shooting
- 17 static gobos for massive visual impact
UPC: 781462218416 In the Box CHAUVET PROFESSIONAL Rogue R2X Beam 15 Fixed Color Moving Head Light Neutrik powerCON Power Cord 2 x Omega Brackets with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Rogue R2X Beam 15 Fixed Color Moving Head Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Rogue R2X Beam Specs | Optical | Light Source: Osram Sirius 231 W lamp, 7900K, 2000 Hours Life Expectancy
Color Temperature (at Full): 7293K
Beam Angle: 1°
Field Angle: 2°
Lumens Source: 10,500
Lumens Output: 7500
Illuminance (Total): 134,000 Lux @ 15 m | | Dynamic Effects | Pan and Tilt: 540°/270°
Pan and Tilt Ranges: Pan 180°, 360°, 540° / Tilt 90°, 180°, 270°
Colors: 14 + White, Split Colors, Continuous Scroll at Variable Speeds
Gobos: 17 + Open (17 metal), Continuous Scroll at Variable Speeds
Dimmer: Motorized
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prisms: 5 Facets, Motorized, Rotating, 8 Facets, Motorized, Rotating
Strobe Rate: 0 to 20 Hz

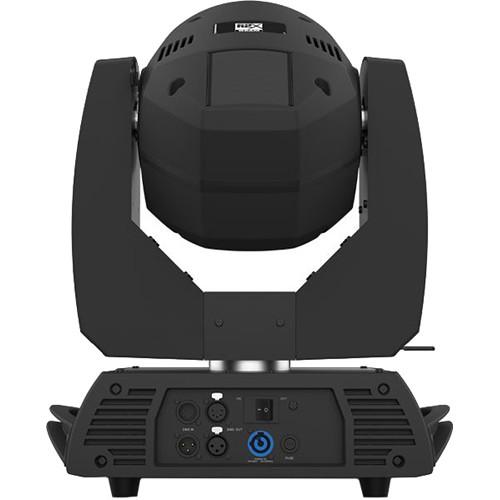

Move-in-Black: Yes | | Connections | Power Connection: Edison (Local) Plug to Neutrik
Power Input: Neutrik powerCON
Data Connectors: 3-and 5-pin XLR
Cable Length Power: 5' / 1.5 m | | Control | Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 Personalities (16 and 19) | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current: 384 W, 3.18 A @ 120 V, 60 Hz
Power and Current: 378 W, 1.81 A @ 208 V, 60 Hz
Power and Current: 382 W, 1.61 A @ 230 V, 50 Hz | | Certifications | CE, MET
IP Rating: IP20, Dry Location
Temperature (Ambient): -4 to 113°F / -20 to 45°C | | Material of Construction | Housing Material: High-Impact Flame-Retardant Polymer | | Dimensions (L x W x H) | 16.1 x 12.8 x 19.2" / 40.9 x 32.5 x 48.8 cm | | Weight | 45.4 lb / 20.6 kg |
