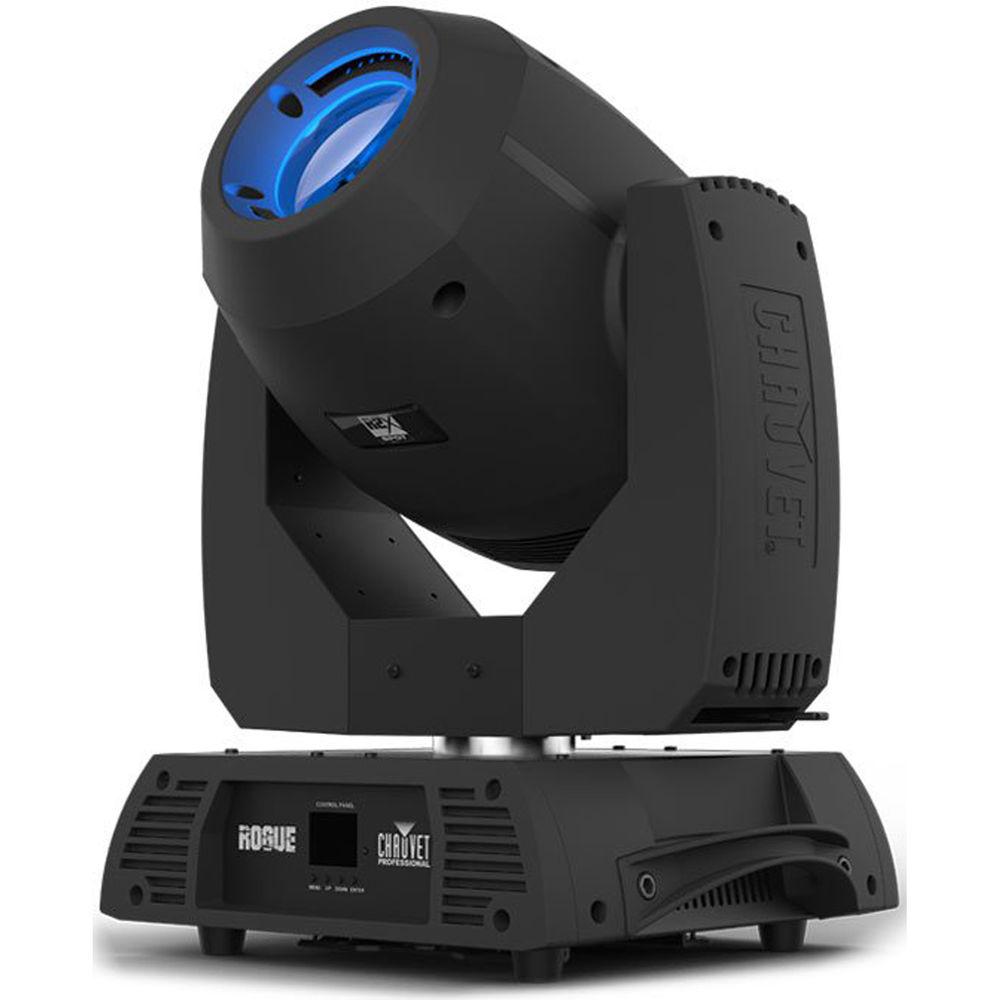

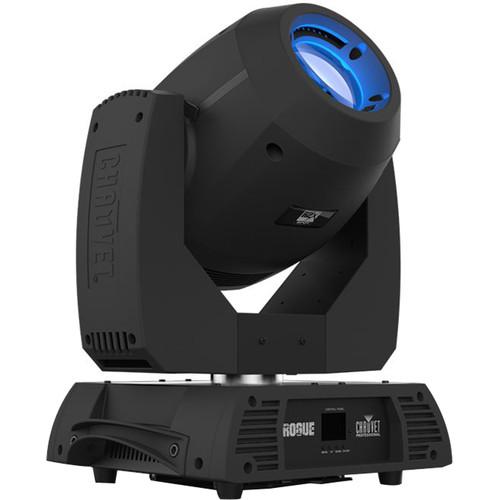

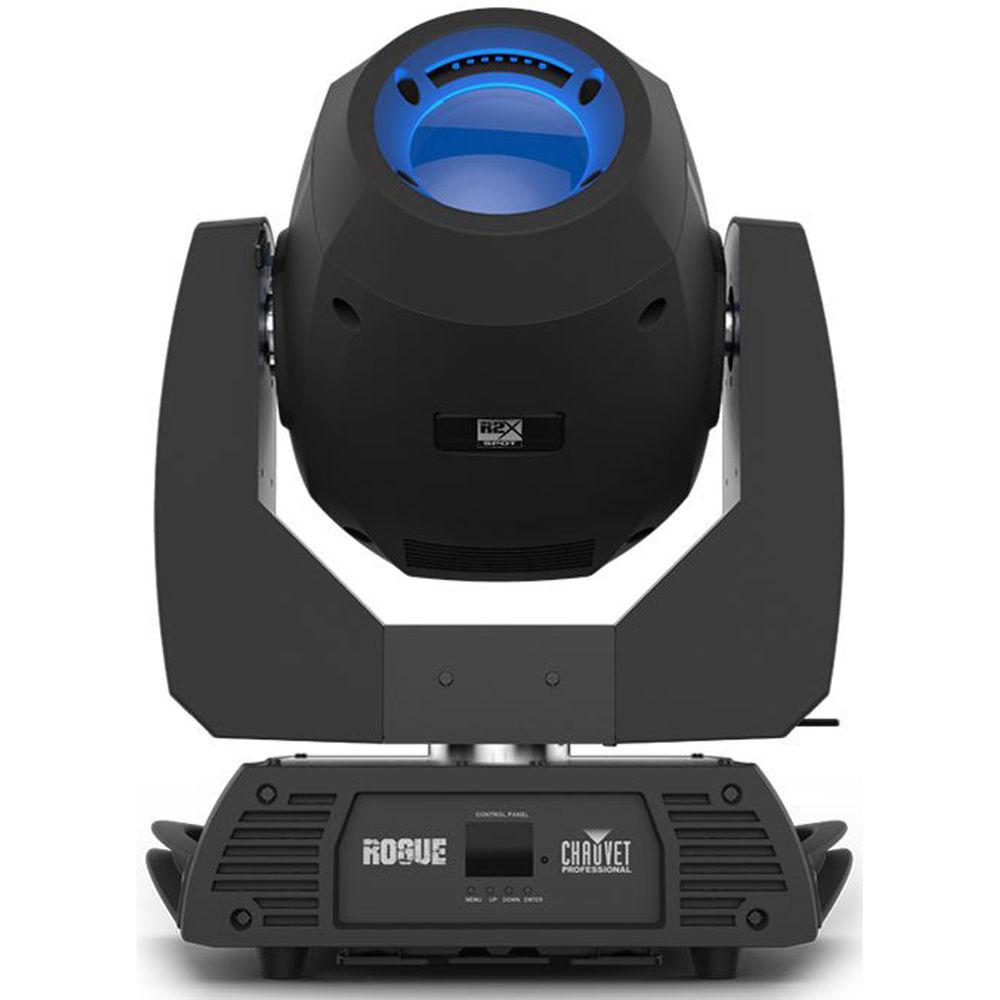

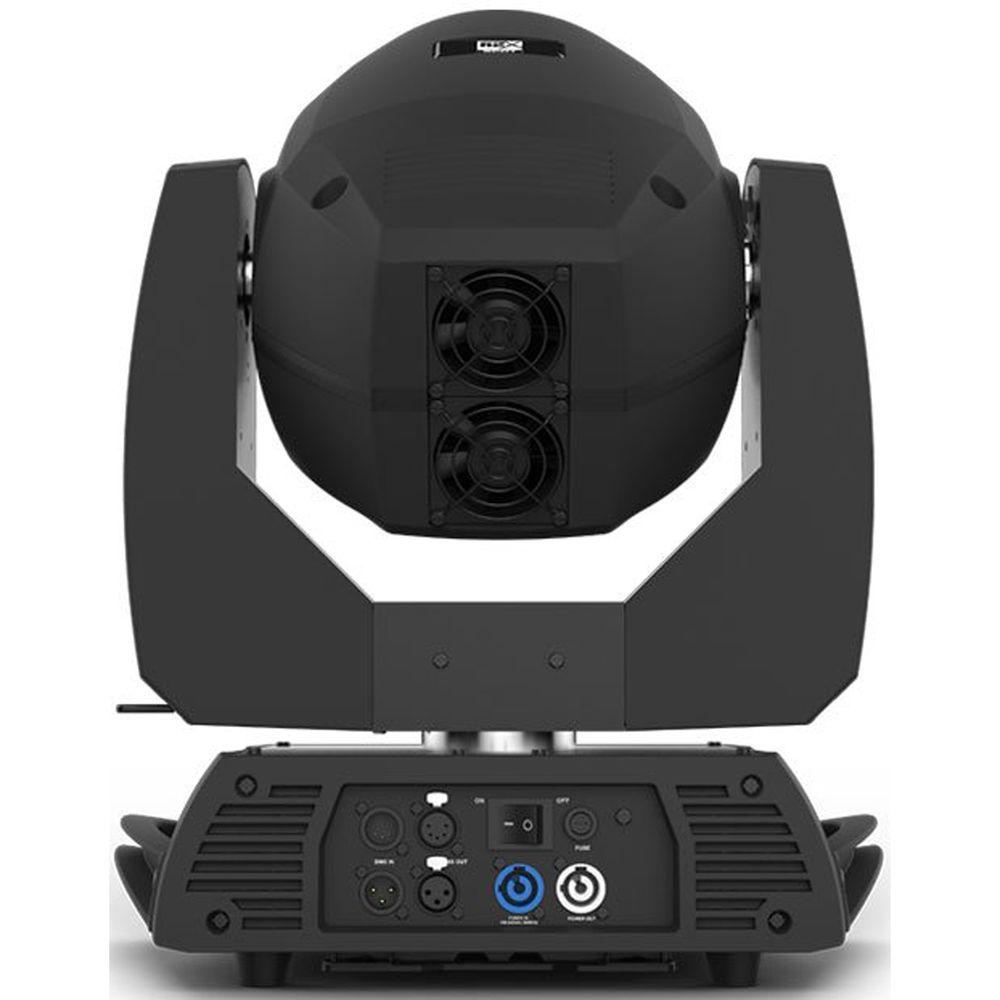

Product description The CHAUVET PROFESSIONAL Rogue R2X Spot is a sophisticated moving head LED spotlight that offers a vast selection of dynamic colors and effects to energize your dance floor or live stage productions. It features two independent color wheels, two gobo wheels with gobo-morphing technology, as well as motorized focus, 3-facet prism, frost, and iris effects. With variable strobe, fast and precise head movements, movement macros, move-in-black functionality, and more, this versatile fixture allows for flexible effect-design and powerful show-control. The Rogue R2X Spot is powered by a bright, 300W, cool-white LED that has a beam angle of 16.7°. Electronic, 16-bit LED dimming lets you create smooth fades that add a professional look to your presentation. Both color wheels come with seven colors plus white and split, and are both capable of continuous, variable-speed scrolling. The two gobo wheels include seven rotating gobos plus open on wheel 1 and eight fixed gobos plus open on wheel 2. Each wheel features gobo shake and continuous, variable-speed scrolling. The unit is controlled via DMX with two channel modes (18 or 21). In addition to DMX daisy-chaining, the Rogue R2X Spot supports power-linking via its pass-through powerCON power connectors. You can daisy-chain up to three fixtures in a 120V environment or up to seven fixtures in a 230V environment. Included are two Omega brackets with mounting hardware and a Neutrik powerCON power cord. - Key Features
-
- Compact, moving-head fixture with intense 300W, cool-white LED light engine, for punchy and bold beams
- Motorized focus, three-facet rotating prism, iris, and variable frost offer creative beam control
- Quiet operation ideal when used in low-noise environments
- Precision-designed optics for hard-edged effects
- Two color wheels with seven colors, split-color ability, and continuous, variable-speed scrolling
- Two gobo wheels, one fixed-slot scrolling wheel and one rotating, interchangeable, scrolling wheel
- Gobo shake and continuous, variable-speed scrolling effects
- Dual gobo wheels allow for gobo morphing effects between gobo wheels
- 16-bit LED dimming for smooth fade control
- Beam angle: 16.5°
- Up to 540° pan and 250° tilt
- Variable strobe
- Move in black
- Movement macros
- DMX Channels: 18 or 21
- Reset over DMX
- RDM-enabled for remote addressing and troubleshooting
- Selectable PWM settings to maintain flicker-free operation on camera
- Selectable LED maximum output to match legacy Rogue R2 Spots
- 3- and 5-pin DMX input/output connections
- Daisy-chain power for up to 3 units at 120V or 7 units at 230V
- Multi-voltage operation: 100-240 VAC, auto-ranging
- Includes two Omega brackets with mounting hardware
UPC: 781462217457 In the Box CHAUVET PROFESSIONAL Rogue R2X Spot - 300W LED Moving Head Light Fixture with Gobos Neutrik powerCON Power Cord 2 x Omega Brackets with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Rogue R2X Spot - 300W LED Moving Head Light Fixture with Gobos in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Rogue R2X Spot Specs | Light Source | 1 x 300 W CW (cool-white) LED (8.7 A), 7836K
CRI: 72
50,000 hours life expectancy | | Illuminance | 9187 lux at 16.4' / 5 m | | Lumens | Source: 23,000 lumens
Output: 11,000 lumens | | Beam and Field Angle | Beam Angle: 16.5°
Field Angle: 16.5° | | PWM Frequency | 600, 1200, 6000, 15,000 Hz (selectable) | | Pan/Tilt | 540° / 250° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 250° | | Color Wheels | Wheel 1: 7 colors + white (open), split colors, continuous scroll at variable speeds
Wheel 2: 7 colors + white (open), split colors, continuous scroll at variable speeds | | Gobo Wheels | Wheel 1: 7 gobos + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Wheel 2: 8 gobos + open (8 metal), continuous scroll at variable speeds | | Gobo Size | Gobo Wheel 1 (Rotating):
Positions 1, 2, 3, 4, and 7 (metal)
Size: 1.13" / 28.8 mm (outside), 0.93" / 23.8 mm (image), 0.01" / 0.5 mm (maximum thickness)
Gobo Wheel 1 (Rotating):
Positions 5 and 6 (glass)
Size: 1.06" / 27 mm (outside), 0.94 / 24 mm (image), 0.11 / 3 mm (maximum thickness) | | Effects | Dimmer: 0-100%, 16-bit, electronic
Shutter/Strobe: Electronic, variable from 0 to 22 Hz
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3 x facets, motorized, rotating
Move in black | | Control Protocol | DMX, RDM | | DMX Channel Modes | 18 or 21 channels
Modes/Personalities: 2 x personalities (18, 21) | | DMX Connectors | Input: 1 x XLR 3-pin and 1 x XLR 5-pin
Output: 1 x XLR 3-pin and 1 x XLR 5-pin | | Power Linking | 3 units at 120 V
6 units at 208 V
7 units at 230 V | | Power Requirements | 100-240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 517 W, 4.31 A at 120 V, 60 Hz
427 W, 2.05 A at 208 V, 60 Hz
437 W, 1.9 A at 230 V, 50 Hz | | Fuse | F 7 A, 250 V | | Power Connections | 1 x Neutrik powerCON input
1 x Neutrik powerCON output | | Power Cord | Edison plug to Neutrik powerCON (included)
Length: 5' / 1.5 m | | IP Rating | IP20, dry location | | Cooling System | Fan-cooled | | Operating Temperature | -4 to 113°F / -20 to 45°C, external | | Construction | Housing Material: High-impact, flame-retardant polymer
Exterior Color: Black | | Dimensions | 16.1 x 13.5 x 19.25" / 409 x 343 x 489 mm | | Weight | 47.8 lb / 21.7 kg |
