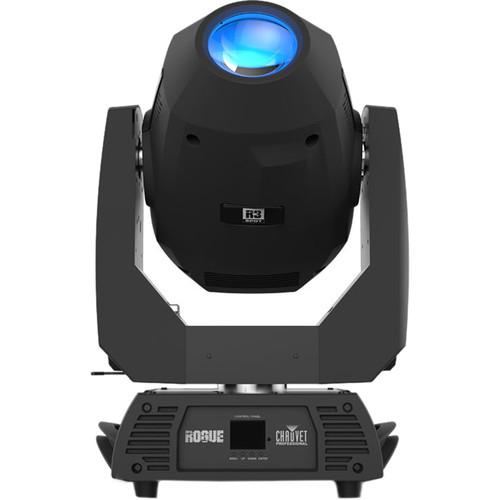

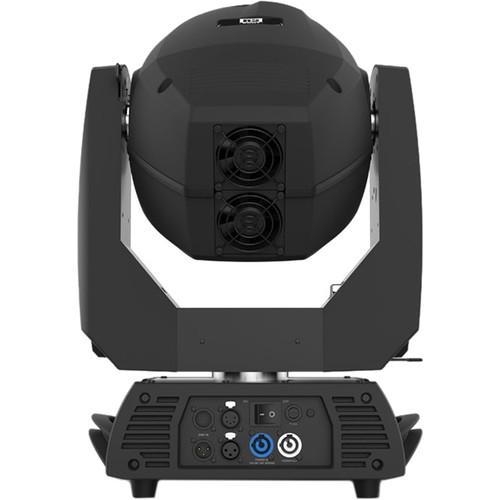

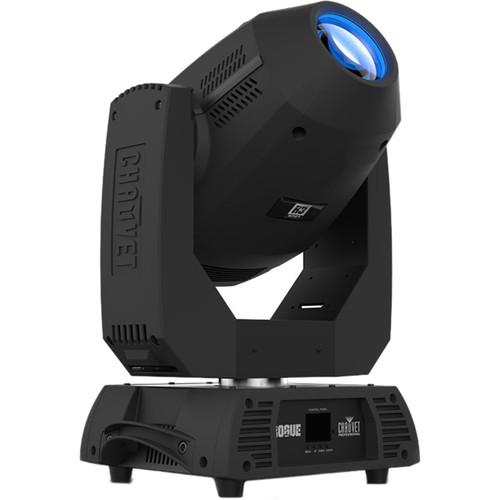

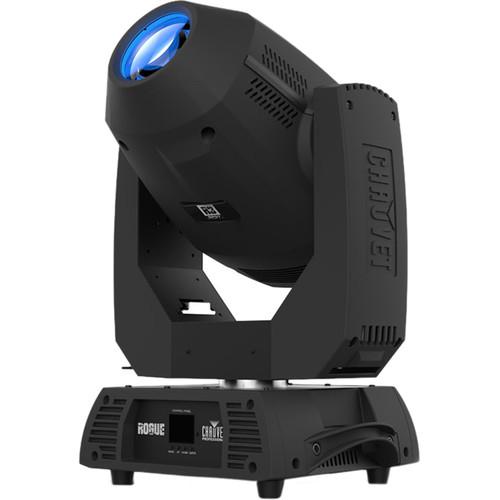

Product description The Rogue R3 Moving Spot Light from CHAUVET PROFESSIONAL has a bright 300W LED light engine that produces even beams of light. It has a zoom angle of 13 to 37° to easily cover stages and surfaces from a distance. This light features two color wheels with seven colors, split color ability, and continuous variable speed scrolling. Two gobo wheels including one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel are featured as well. Iris, 3-facet prism, and frost allow for beam control. A Neutrik powerCON power cord and two Omega brackets with mounting hardware are included. - Gobo morphing between gobo wheels
- 16-bit LED dimming for fade control
- Neutrik powerCON power input/output connections for power linking
- 3- and 5-pin DMX input/output connections
- RDM (remote device management) enabled for remote addressing and troubleshooting
- Selectable PWM (pulse width modulation) settings to maintain flicker-free operation on camera
- Simple and complex DMX channel profiles for programming versatility
UPC: 781462217624 In the Box CHAUVET PROFESSIONAL Rogue R3 Moving Spot Light Neutrik powerCON Power Cord 2 x Omega Brackets with Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Rogue R3 Moving Spot Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Rogue R3 Spot Specs | | | Light Source | 1 LED (CW) 300 W, 8.8 A; 7564K Life Expectancy: 50,000 Hours | | Color Temperature | At Full: 7564K | | CRI | 74 | | Beam Angle | 12 to 36° | | Field Angle | 13 to 37° | | Zoom Angle | 13 to 37° | | Illuminance | 13°: 12,828 lux at 16.4' / 5 m
37°: 1768 lux at 16.4' / 5 m | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15,000 Hz (Selectable) | | | | Pan & Tilt | Pan: 540°
Tilt: 250° | | Pan & Tilt Range | Pan: 180°, 360°, 540°
Tilt: 90°, 180°, 250° | | Color Wheels | 1: 7 + White, Split Colors, Continuous Scroll at Variable Speeds
2: 7 + White, Split Colors, Continuous Scroll at Variable Speeds | | Gobos | 1: 7 + Open (7 Metal), Rotating, Interchangeable, Indexing, Slot-N-Lock, Continuous Scroll at Variable Speeds
2: 8 + Open (8 Metal), Continuous Scroll at Variable Speeds | | Gobo Size | Gobo Wheel 1 (Rotating): Positions 1, 2, 3, 4, and 7 (Metal); Size: 1.1" / 28.8 mm (Outside), 0.9" / 23.8 mm (Image), 0.02" / 0.5 mm (Max. Thickness)
Gobo Wheel 1 (Rotating): Positions 5 and 6 (Glass); Size: 1.2" / 27 mm (Outside), 0.9" / 24 mm (Image), 0.1" / 3 mm (Max. Thickness) | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Zoom | Motorized | | Focus | Motorized | | Frost | Motorized | | Iris | Motorized | | Prism | 3 Facets, Motorized, Rotating | | Strobe Rate | 0 to 22 Hz | | | | Power Connection Type | Edison (Local) Plug to Neutrik powerCON | | Power Input | Neutrik powerCON | | Power Output | Neutrik powerCON | | Data Connectors | 3- and 5-Pin XLR | | Power Cable Length | 5' / 1.5 m | | | | Control Protocol | DMX, RDM | | DMX Channels | 19 or 25 | | Modes | 2 Personalities (19, 25) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 3 Units at 120 V
5 Units at 208 V
6 Units at 230 V | | Power and Current | 514 W, 4.28 A at 120 V, 60 Hz
488 W, 2.35 A at 208 V, 60 Hz
492 W, 2.14 A at 230 V, 50 Hz | | | | Certification | CE, MET | | IP Rating | IP20, Dry Location | | Ambient Temperature | -4 to 113 °F / -20 to 45 °C | | | | Exterior Color | Black | | Housing Material | High-Impact Flame-Retardant Polymer | | Dimensions | 14.68 x 11.1 x 23.66" / 373 x 282 x 601 mm | | Weight | 50 lb / 22.7 kg |
