User Manual for CHAUVET PROFESSIONAL STRIKE 1 Single-Pod IP65 LED Blinder Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL STRIKE 1 Single-Pod IP65
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL STRIKE 1 Single-Pod IP65 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

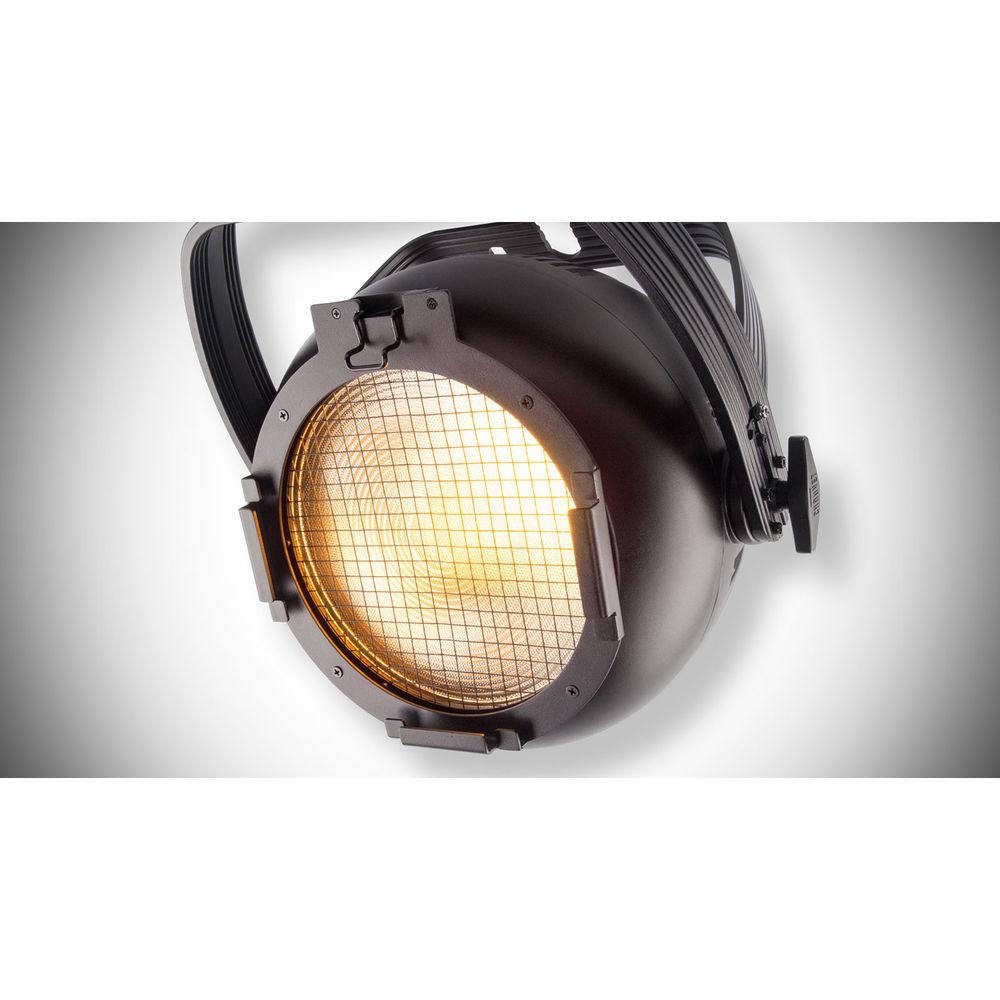

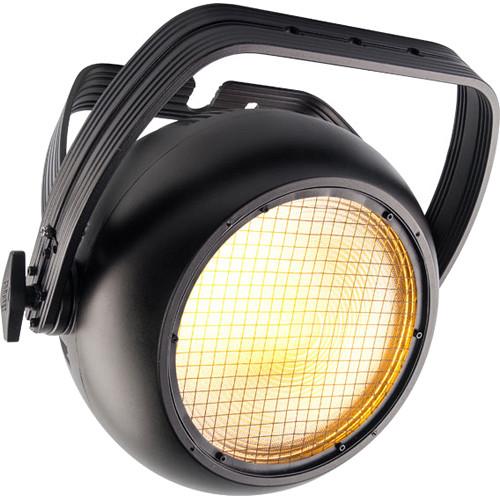

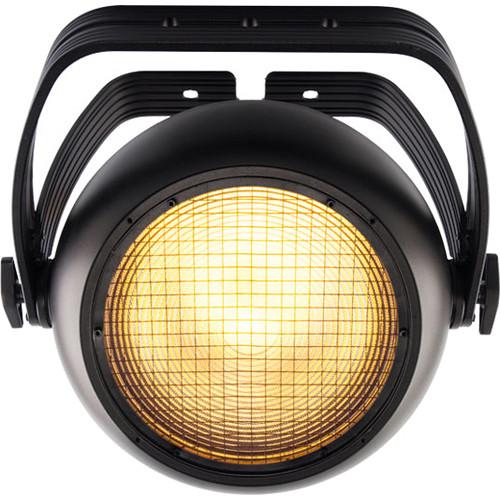

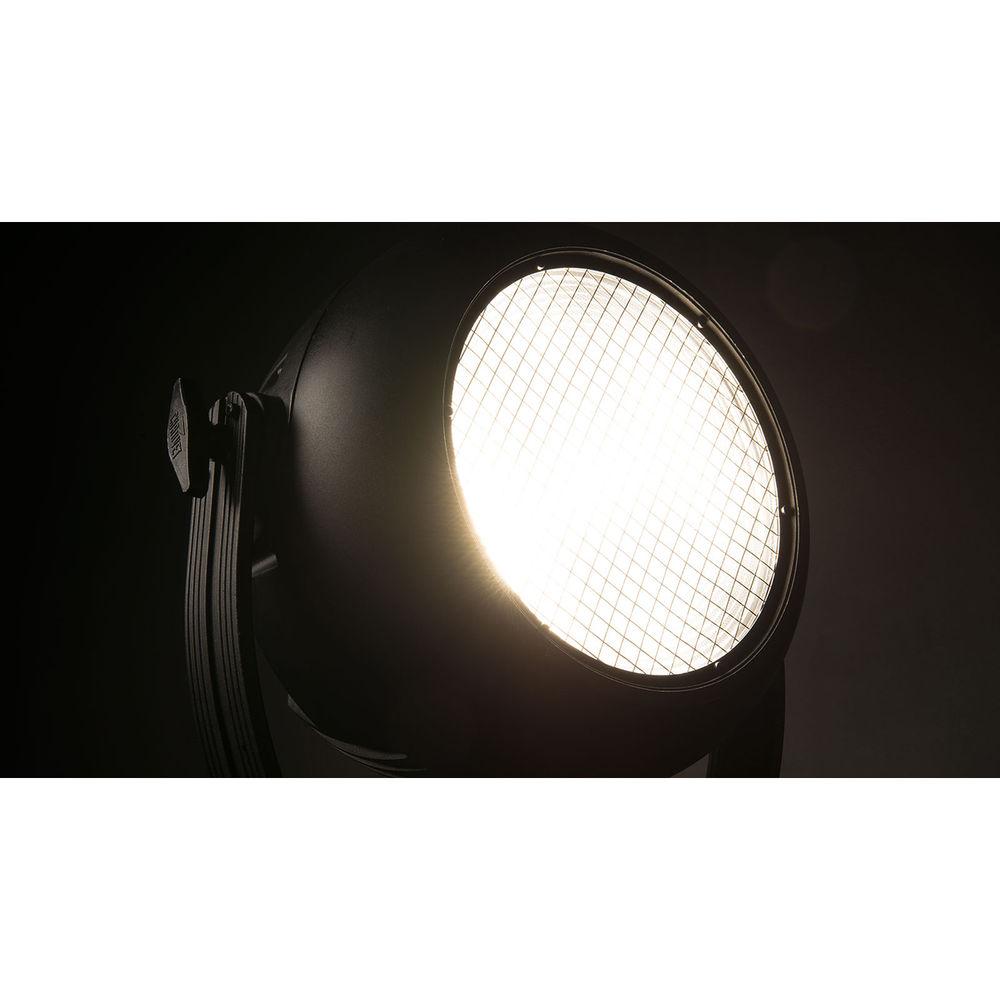

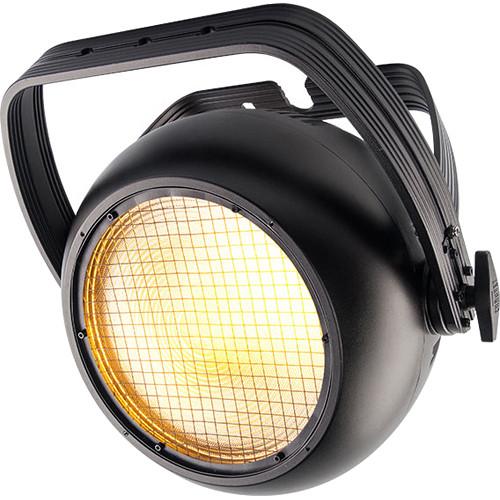

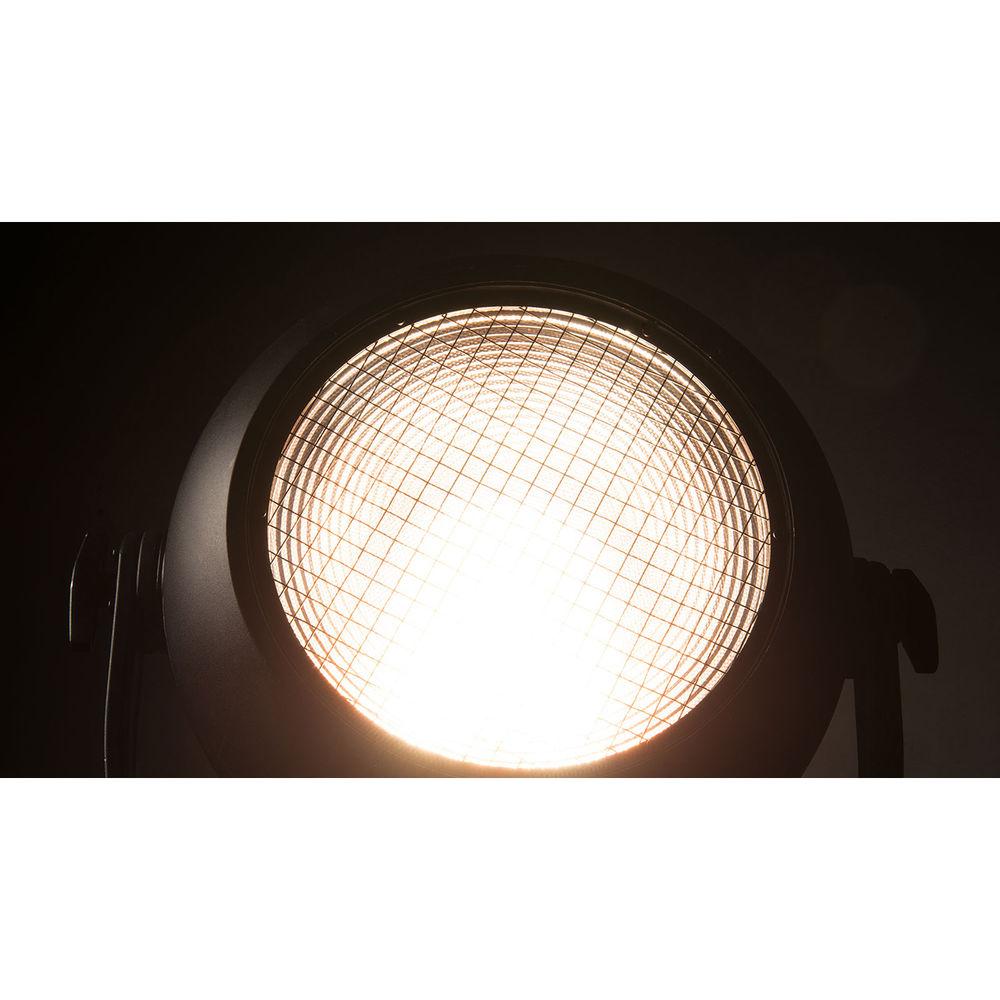

Product description The STRIKE 1 from Chauvet is a single-pod blinder powered by a 230W warm white LED source that can also act as a strobe or wide-area flood light. The blinder is IP65-rated, featuring an IP65-rated fan to keep the fixture cool enough to use as a wash and IP65-rated direct power and DMX connections that eliminate undesirable whips. An emulated "red shift" warms the color temperature of the light as it dims to mimic incandescent lights. -
- Single-pod IP65-rated blinder/strobe for all-weather use
- 16-bit dimming control for smooth fades
- Strobe functionality for high-impact effects on the fly
- Beautiful warm glow made possible with emulated "red shift"to mimic incandescent fixtures
- Multi-bracket allows you to create multi-fixture banks with ease

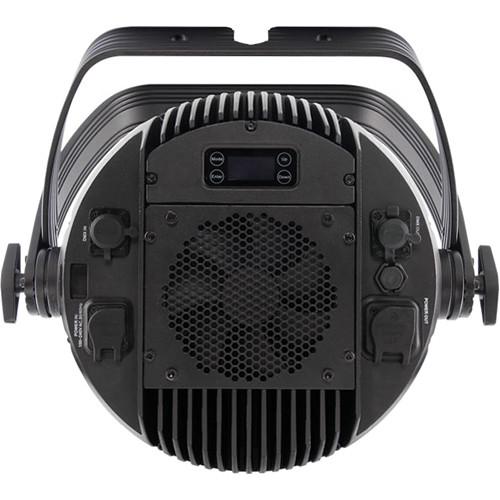

- Easy-to-use OLED display
- Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera
- RDM (Remote Device Management) for added flexibility

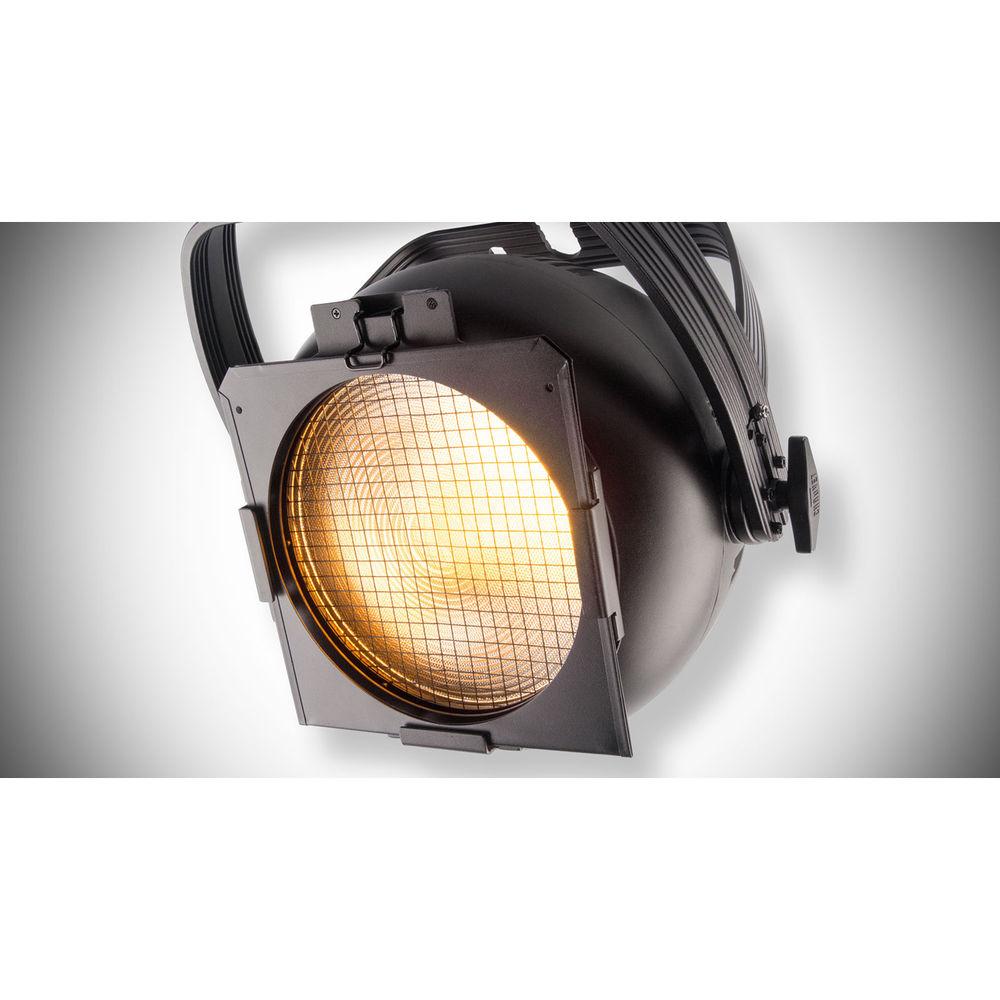

UPC: 781462215620 In the Box CHAUVET PROFESSIONAL STRIKE 1 Single-Pod IP65 LED Blinder Seetronic Powerkon IP65 Power Cord Multi-Bracket Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL STRIKE 1 Single-Pod IP65 LED Blinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL STRIKE 1 Specs | Light Source | 1 x warm white LED, 230 W (4.1A) | | Life Expectancy | 50,000 hours | | Illuminance | 1119 lux @ 16.4' / 5 m | | Beam Angle | 30° | | Field Angle | 51° | | Color Temperature | 2688K (at full) | | CRI | 93 | | Dimmer | Electronic | | Dimmer Mode | 4 x modes | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 25 Hz | | PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz | | Built-In Programs | Yes | | Protocols | DMX, RDM | | DMX Connectors | Input: XLR 5-pin
Output: XLR 5-pin | | DMX Channel Modes | 2, 3, 4 or 5 channels | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power Connectors | Input: Seetronic Powerkon IP65
Output: Seetronic Powerkon IP65 | | Power Linking | 120 V: 6 units
208 V: 10 units
230 V: 11 units | | Power Connection Type | Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (Power): 5' (1.5 m) | | Power Consumption | 120 V, 60 Hz: 266 W, 2.209 A
208 V, 60 Hz: 255 W, 1.306 A
230 V, 50 Hz: 258 W, 1.201 A | | Power Cable | Edison plug to Seetronic Powerkon IP65 | | Power Cable Length | 5' (1.5 m) | | Certifications & Approvals | CE, MET | | IP Rating | IP65 | | Housing Material | Aluminum die-cast | | Dimensions | 15.0 x 7.4 x 14.6" (38.0 x 18.8 x 37.1 cm) | | Weight | 18.8 lb (8.6 kg) |
