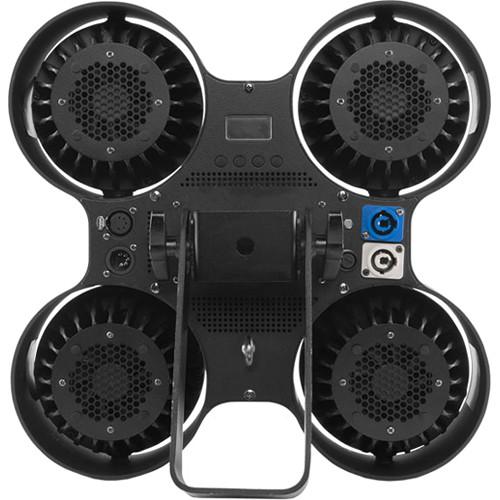

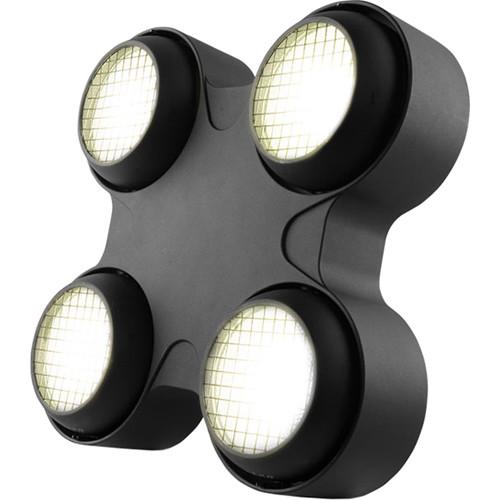

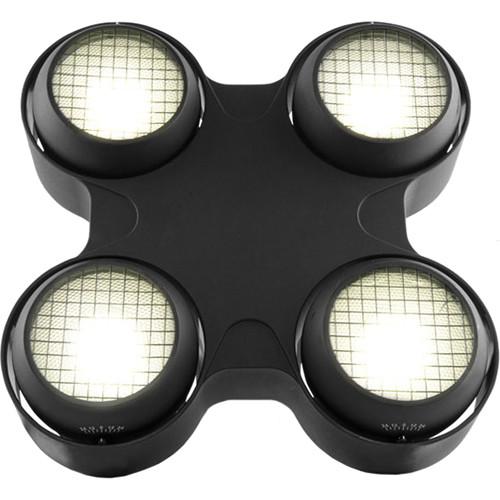

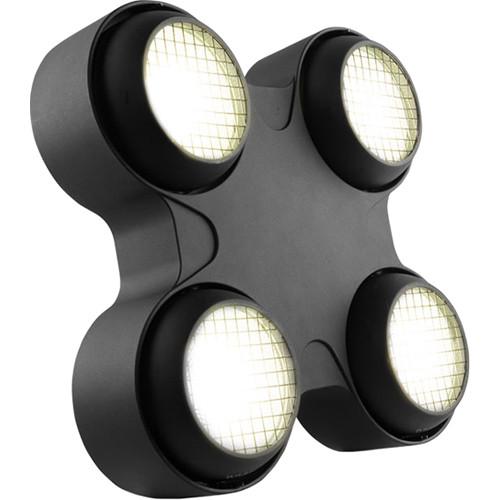

User Manual for CHAUVET PROFESSIONAL Strike 4 LED Wash Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Strike 4 LED Wash
- Product category: DJ & Effect Lights CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL DJ & Effect Lights
 |
User manual for the CHAUVET PROFESSIONAL Strike 4 LED Wash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|
Product description The Strike 4 LED Wash from CHAUVET features four independently focusable 100W chip-on-board LEDs that provide coverage for a wide gamut of production genres. Additionally, it features smooth 16-bit dimming control for incandescent-style fades and a series of automated strobe effects for using the Strike 4 as an audience blinder. Individual manual pan control of each LED pod and adjustable PWM makes Strike 4 suitable for use in film and studio locations. It comes standard with basic and advanced control options for flexibility in programming and an easy-to-read OLED display for quick on-board adjustments. - 16-bit dimming control for smooth fades
- Individual pan of each head to allow for directional adjustment of light output
- Simple and complex DMX channel profiles for programming flexibility
- Automated strobing programs for easy programming
- Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera
UPC: 781462214272 In the Box CHAUVET PROFESSIONAL Strike 4 LED Wash Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Strike 4 LED Wash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL STRIKE 4 Specs | DMX Channels | 1, 3, 4, or 9 | | Data Connector | 5-pin XLR | | Light Source | 4 x 100 W LEDs (WW), 2.3 A
50,000 hours life expectancy | | Color Temperature | 3096K | | Pan | ±24° | | Programs | Built-in automated programs | | Dimmer | Electronic | | Strobe Rate | 0 to 30 Hz | | Beam Angle | 49° | | Field Angle | 79° | | Dimming | 4 modes | | Illuminance | Total: 640 lux @ 16.4' (5.0 m)
Per Cell: 165 lux @ 16.4' (5.0 m) | | IP Rating | IP20, dry location | | Cable Length | 5.0' (1.5 m) | | Power Connection Type | Edison (local) plug to Neutrik powerCON | | Power Input/Output | Neutrik powerCON | | Power Linking | 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 301 W, 2.49 A @ 120 V, 60 Hz
287 W, 1.43 A @ 208 V, 60 Hz
286 W, 1.29 A @ 230 V, 50 Hz | | Approvals | CE | | Dimensions | 14.2 x 6.4 x 14.2" (36.2 x 16.3 x 36.2 cm) | | Weight | 19.0 lb (8.7 kg) | | | | Package Weight | 24.65 lb | | Box Dimensions (LxWxH) | 18.0 x 18.0 x 9.6" |
