User Manual for CHAUVET PROFESSIONAL Strike P38 Single Pod Blinder and Strobe Light Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Strike P38 Single Pod
- Product category: Stage & Studio CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Stage & Studio
 |
User manual for the CHAUVET PROFESSIONAL Strike P38 Single Pod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

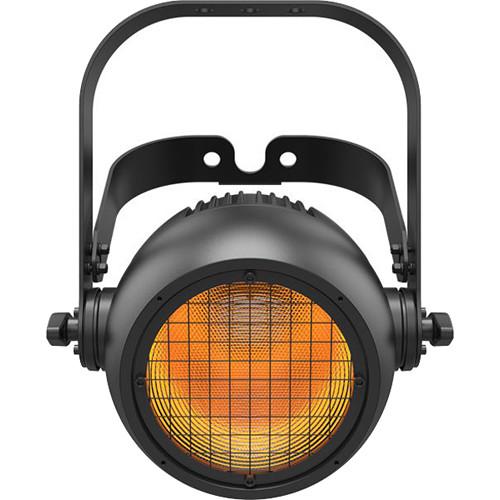

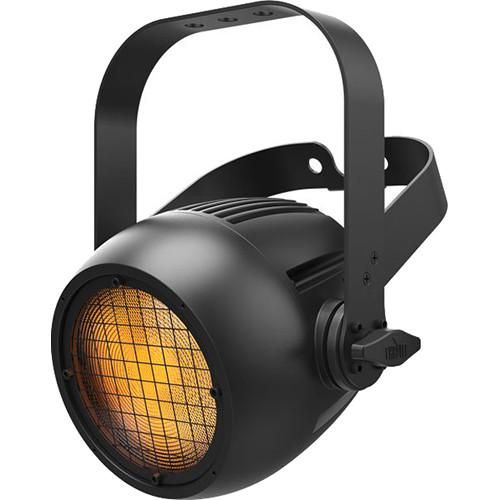

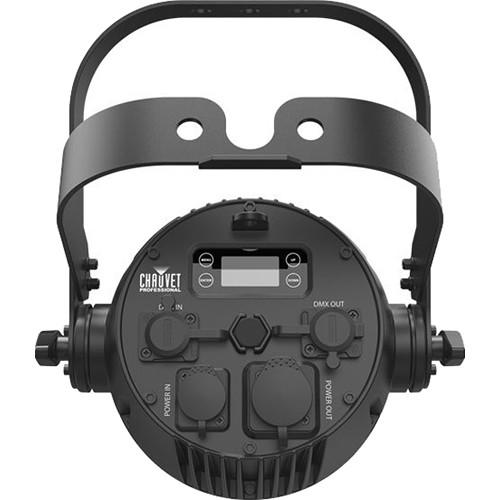

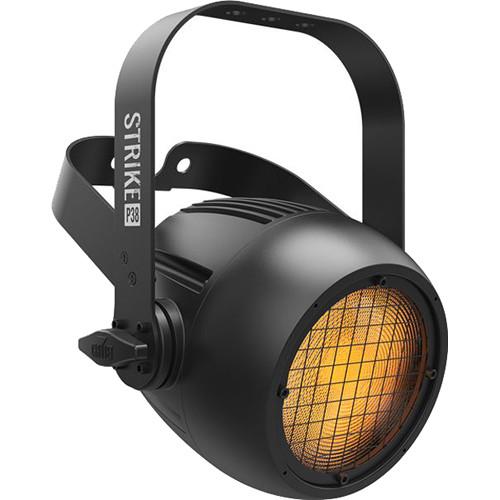

Product description The Strike P38 from CHAUVET Professional is a single pod, compact, outdoor-ready blinder and strobe light powered by a 90W warm-white LED source. An emulated amber shift warms the color temperature of the light as it dims to mimic incandescent lights. The unit's IP-rated fan keeps it cool for use as a wash, while IP-rated direct power and DMX connections eliminate undesirable whips. You can control it with adjustable pulse width modulation and remote device management for added flexibility. In order to mount the fixture to a truss, the Strike P38 features adjustment knobs and a bracket to which you can attach a mounting clamp (sold separately). - Built-in automated programs
- Emulated amber shift to mimic incandescent fixtures
- Strobe functionality for high-impact effects on-the-fly
- Adjustable pulse width modulation
- Remote device management for added flexibility
In the Box CHAUVET PROFESSIONAL Strike P38 Single Pod Blinder and Strobe Light Seetronic Powerkon IP65 Power Cord Gel Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Strike P38 Single Pod Blinder and Strobe Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL STRIKE P38 Specs | | | Light Source | 1 LED (WW) 90 W, (1.19 A), 2688K, 50,000 hours Life Expectancy
8 LEDs (Amber) 5 W, (0.07 A), 50,000 Hours Life Expectancy | | Color Temperature | At Full: 2754K
At 10%: 1899K | | CRI | 92 | | Beam Angle | 27° | | Field Angle | 51° | | Lumens | 2186 | | Illuminance | 325 lux at 16.4' / 5 m | | PWM Frequency | 600, 1200, 2000, 4000, 25,000 Hz (Selectable) | | | | Dimmer | Electronic | | Strobe Rate | 0 to 29 Hz | | Dimming | 4 Modes | | | | Power Connection Type | Edison (Local) Plug to Seetronic Powerkon IP65 | | Power Input | Seetronic Powerkon IP65 | | Power Output | Seetronic Powerkon IP65 | | Data Connectors | 5-Pin IP65 XLR | | Power Cable Length | 5' / 1.5 m | | | | Control Protocol | DMX, RDM | | DMX Channels | 1, 3, 4, 5, or 6 | | Modes | 5 personalities (1-channel, 3-channel, 4-channel, 5-channel, 6-channel) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 30 Units at 120 V
50 Units at 208 V
55 Units at 230 V | | Power and Current | 54 W, .449 A at 120 V, 60 Hz
56 W, .267 A at 208 V, 60 Hz
58 W, .245 A at 230 V, 50 Hz | | | | Certification | CE, MET | | IP Rating | IP65, Temporary Outdoor / Wet Use | | Ambient Temperature | -4 to 113 °F / -20 to 45 °C | | | | Exterior Color | Black | | Housing Material | Aluminum Die-Cast | | Dimensions | 11.93 x 10.27 x 7.25" / 303 x 261 x 184 mm
Accessory Holder / Gel Frame Size: 6.25" / 159 mm | | Weight | 8.4 lb / 3.8 kg |
