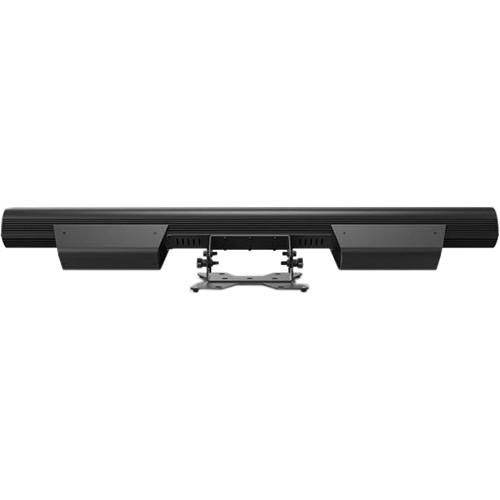

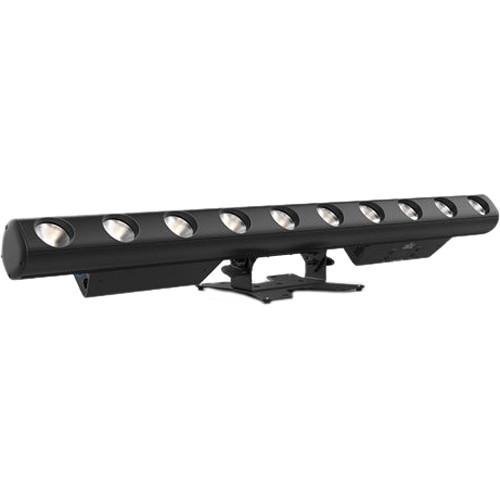

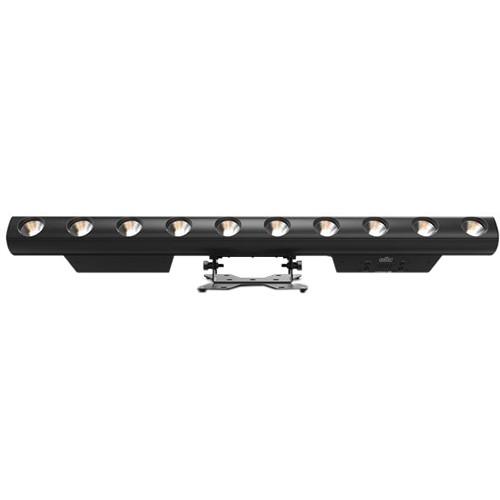

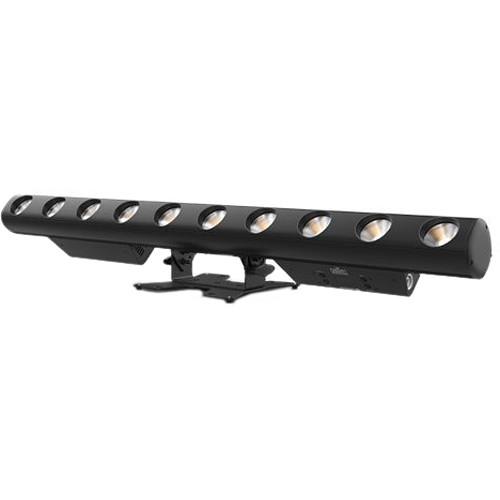

Product description The Strike Saber 10-Cell Batten is a powerful blinder, footlight, or tunable warm-white wash batten powered by 10 17W bicolor (warm white / amber) LEDs. It's pixel-mappable for chase and strobe effects. An emulated amber shift warms the color temperature of the light as it dims to mimic incandescent lights. This dynamic batten comes with a floor plate for easy ground level mounting and includes remote device management control and 16-bit dimming for smooth fades. - Strobe functionality for high-impact effects on the fly
- RDM (remote device management) for added flexibility
- Built-in automated programs
In the Box CHAUVET PROFESSIONAL Strike Saber 10-Cell Batten Neutrik powerCON Power Cord Floor Stand Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Strike Saber 10-Cell Batten in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL STRIKE Saber Specs | | | Light Source | 10 LEDs (Warm White / Amber), 17 W, 310 mA, 3134K, 50,000 Hours Life Expectancy | | Color Temperature | At Full: 3134K | | CRI | 89 | | Beam Angle | Vertical: 15°
Horizontal: 18° | | Field Angle | Vertical: 30°
Horizontal: 35° | | Lumens | 5675 lumens | | Illuminance | 2466 lux at 16.4' / 5 m | | PWM Frequency | 600, 1200, 2000, 4000, 6000, 25,000 Hz (Selectable) | | | | Dimmer | Electronic | | Strobe | Electronic | | Strobe Rate | 0 to 26.7 Hz | | Dimming | 4 Modes | | | | Power Connection Type | Edison (Local) Plug to Neutrik powerCON | | Power Input | Neutrik powerCON | | Power Output | Neutrik powerCON | | Data Connectors | 5-Pin XLR | | Power Cable Length | 5' / 1.5 m | | | | Control Protocol | DMX, RDM | | DMX Channels | 1, 3, 5, 7, 11, 20, or 27 | | Modes | 6 Personalities (1-Channel, 3-Channel, 7-Channel, 11-Channel, 20-Channel, 27-Channel) | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power Linking | 9 Units at 120 V
16 Units at 208 V
18 Units at 230 V | | Power and Current | 174 W, 1.434 A at 120 V, 60 Hz
172 W, 0.829 A at 208 V, 60 Hz
170 W, 0.741 A at 230 V, 50 Hz | | | | Certification | CE | | IP Rating | IP20, Dry Location | | Ambient Temperature | -4 to 113 °F / -20 to 45 °C | | | | Exterior Color | Black | | Housing Material | Aluminum Alloy, Aluminum Die-Cast, High-Impact Flame-Retardant Polymer, Steel | | Dimensions | 39.3 x 3.08 x 6.18" / 1000 x 78.4 x 157 mm | | Weight | 14.6 lb / 6.7 kg |
