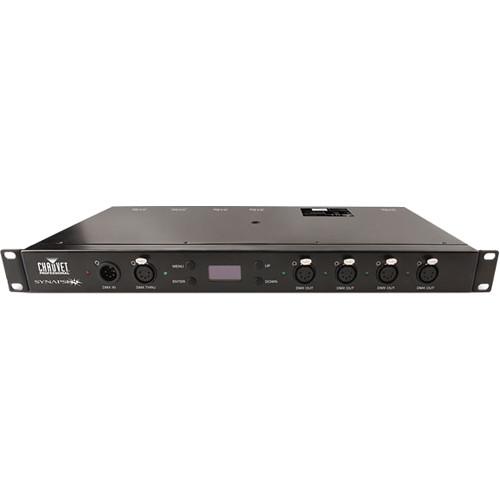

Product description The Chauvet Synapse 4 functions as an intelligent Relay Pack to offer an innovative solution to many of the most common hurdles involved in setting up and operating LED fixtures. Designed to control the power sent to individual lighting units, the Synapse 4 can take one powerCON input and branch it into four outputs, each of which can be powered on and off individually. An indispensable tool for fixed installations, the Synapse-4 provides the ability to de-power entire sections of an installation thereby prolonging fixture lifespan and decreasing overall power consumption, saving energy and money. Rack, truss, or wall mountable, the Synapse 4 also offers flexibility as to how its four outputs can be controlled: 1) via DMX, 2) upon sensing the loss of the DMX signal, or 3) via an internal timer that can be used to specify that individual outputs be turned on/off automatically at certain times of day. As an added convenience, the Synapse-4 includes a 4-port DMX opto-isolator, allowing users to easily branch their DMX universe in multiple directions and amplify the signal after a long run. -
- Controllable powerCON relay pack and DMX optically isolated splitter/amplifier
- Compounds the savings of LED fixtures by completely removing power when not in use
- Individually control all 4 relays via DMX
- DMX sensing or internal scheduler for specific on/off times every day
- Optically isolated 5-pin DMX splitter provides an easy hub for running DMX to multiple locations
- Convenient mounting options: rack mount, wall mount, or clamped to truss
In the Box CHAUVET PROFESSIONAL Synapse 4 Relay Pack Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Synapse 4 Relay Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL SYNAPSE4 Specs | Connections | Power Connection: Edison plug
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 5-pin XLR | | Control | Control Protocol: DMX
DMX Channels: 1 or 4 | | Electrical | Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Main Breaker Size: 20 A, 250 V
Breaker Size per Output: 20A, 250 V | | Mounting | Rack Mounting: 1U
Wall
Truss via clamp | | Dimensions | 19 x 7.87 x 1.75" (483 x 200 x 44.5 mm)
Power Cable: 5.0' (1.5 m) | | Weight | 6.0 lb (2.8 kg) |
