User Manual for CHAUVET PROFESSIONAL Vesuvio II RGBA UV LED Illuminated Fog Machine Click to enlarge the picture
Contents of the user manual for the CHAUVET PROFESSIONAL Vesuvio II RGBA UV
- Product category: Fog & Haze Machines CHAUVET PROFESSIONAL
- Brand: CHAUVET PROFESSIONAL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHAUVET PROFESSIONAL Fog & Haze Machines
 |
User manual for the CHAUVET PROFESSIONAL Vesuvio II RGBA UV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHAUVET PROFESSIONAL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHAUVET PROFESSIONAL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHAUVET PROFESSIONAL product will considerably shorten its lifespan!
|

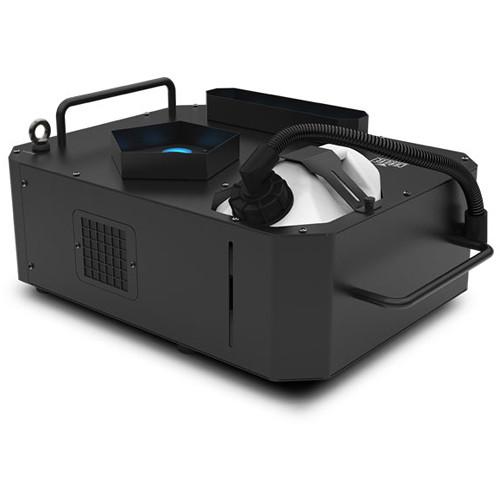

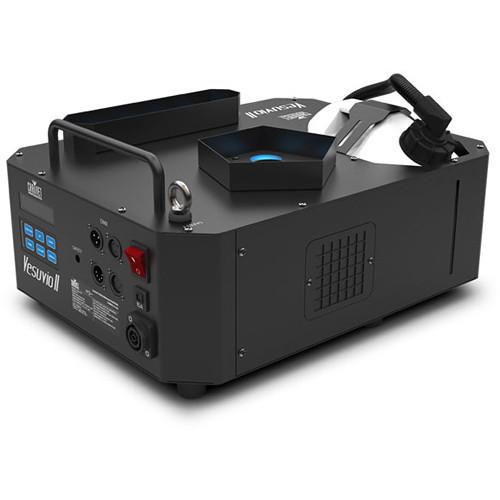

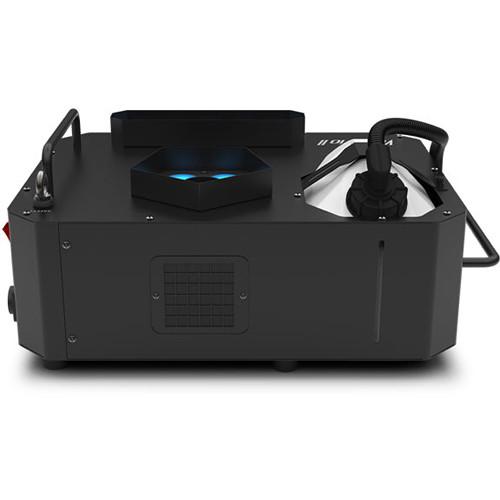

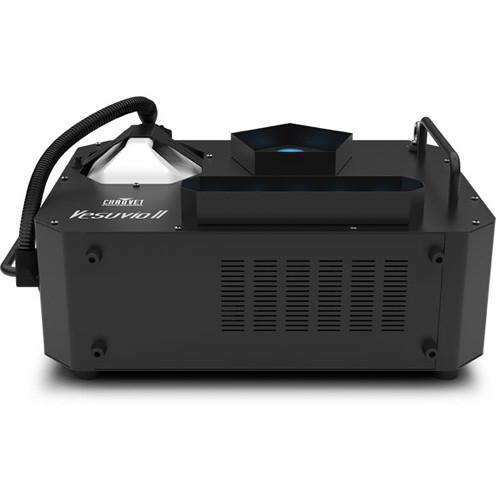

Product description The Vesuvio II RGBA+UV LED Illuminated Fog Machine from CHAUVET PROFESSIONAL illuminates bursts of fog with advanced red, green, blue, amber, and UV LED color mixing, providing dramatic effects for events and performances. Featuring 40,000 cubic feet of fog per minute, the machine boasts 40 seconds of full burst output. Dual LED sections give greater creative control for a more even coverage of light.
The Vesuvio II is built for efficiency, consuming 80 mL/minute of QDF fluid. This highly versatile unit can run vertically, horizontally, or overhead with the included mounting brackets. It works best with either Chauvet HDF high-density or QDF quick-dissipating fluid (sold separately). - 0.7-gallon fluid tank for reliability in production
- Strong, sturdy construction for numerous production types
- DMX control for ease of use in production situations

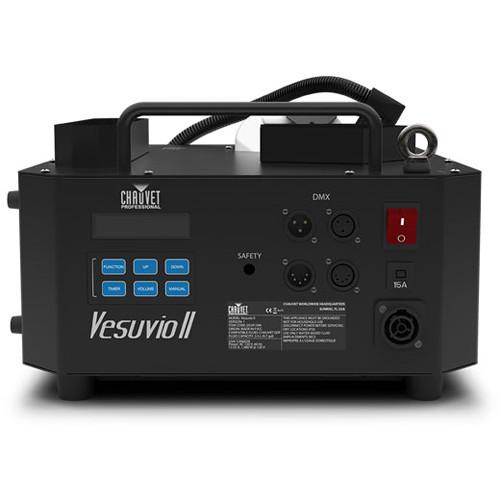

- 3- and 5-pin DMX input/output connections
UPC: 781462217426 In the Box CHAUVET PROFESSIONAL Vesuvio II RGBA+UV LED Illuminated Fog Machine IP65 Seetronic Powerkon Power Cord 2 x Omega Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL Vesuvio II RGBA UV LED Illuminated Fog Machine in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL Vesuvio II Specs | | | Light Source | 10 x RGBA+UV LED
8.5 W, 3 A | | LED Life Expectancy | 50,000 hours | | Illuminance | Center: 199.5 lux @ 16.4'
Linear: 154 lux @ 16.4'
Both: 334 lux @ 16.4' | | PWM Frequency | 126 Hz | | | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 20 Hz | | Output | 40,000 cfm | | | | Control Protocol | 15 x DMX Channels | | On-Board Control | Yes | | | | Power | Edison to IP65 Seetronic Powerkon | | Data Input | 3- and 5-Pin XLR | | Cable Length | 5' / 1.5 m | | | | Input Voltage | 120 V: 120 VAC, 60 Hz
220 V: 230 VAC, 50 Hz | | Power | 120 V: 1480 W, 12.55 A
220 V: 2880 W, 12.55 A | | Heat-up Time | 10 minutes | | Breaker Size | 15 A | | | | Certification | CE | | Rating | IP20, Dry Locations | | Temperature | -4 to 113°F / -20 to 45°C | | Construction | Black, Steel | | Tank Capacity | 0.7 gal / 2.5 L | | Fluid Consumption | 80 mL/minutes | | Dimensions | 19.5 x 13.2 x 9.4" / 49.5 x 33.5 x 23.9 cm | | Weight | 28.4 lb / 12.9 kg |
