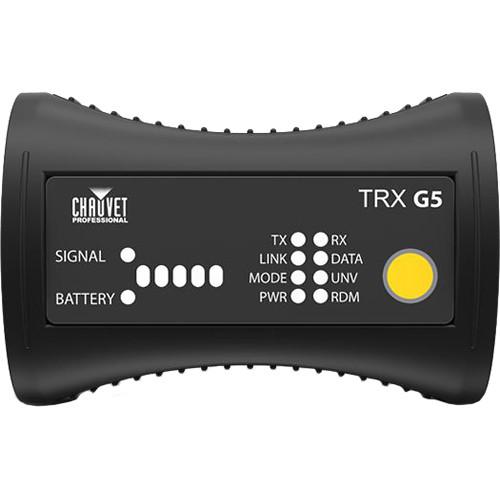

Product description The Chauvet Professional WDMX Micro T-1 TRX G5 is a wireless transceiver for W-DMX wash lights, which generates a wireless control signal for DMX and RDM protocols. Compatible with WELL and Maverick fixtures, the compact unit can be set up to transmit or receive W-DMX signals, making any fixture or rig wireless. The unit provides a single universe (512 DMX channels) with a range of up to 650'.

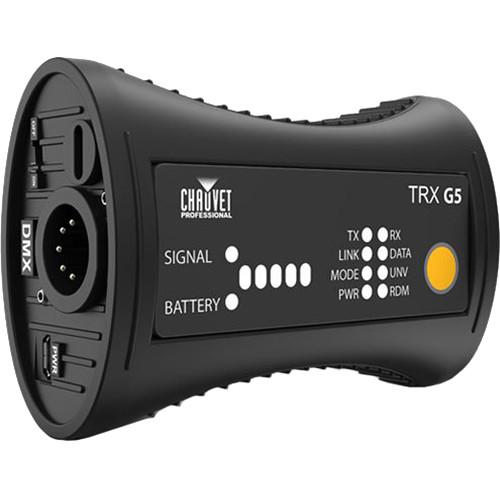

Housed in a high-impact, flame-retardant polymer enclosure, the DMX Micro T-1 TRX G5 includes an internal antenna, making it ready for any professional setup and environment. The unit can be powered by optional batteries (4 x AAA) or by the included 5V micro-USB to wall wart adapter and utilizes a 5-pin XLR connector for DMX input / output. Chauvet Professional WDMX Micro T-1 TRX G5 also ships with a hook-and-loop attachment strap. -
- Transmit and receive single universe of W-DMX and RDM protocols
- Power with included 5V USB power supply or optional 4 x AAA batteries
- Batteries last for up to 8 hours in receiver mode and 4 hours in transceiver mode
- Built-in indicator lights for signal and battery strength, as well as operation modes
- Can be used directly with any Maverick or WELL fixtures
- Can be used to make any lighting system wireless for data
In the Box CHAUVET PROFESSIONAL WDMX Micro T-1 TRX G5 Wireless Battery-Powered DMX / RDM Transceiver Power Adapter Hook-and-Loop Attachment Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL WDMX Micro T-1 TRX G5 Wireless Battery-Powered DMX RDM Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL WDMXMICROT1TRXG5 Specs | Connector | Data Connector: 5-pin XLR
Power Connection: 5 V micro USB | | Control | Control Protocol: W-DMX, RDM
Operating Frequency: 2.4 GHz
Universes per Device: 1
Number of DMX Channels: 512
DMX Latency: <5 ms
Max Universe in Coexistence: 16
Error Correction: Yes
DMX Fidelity: Yes
Adaptive Frequency Hopping: Yes
W-DMX G3 &G4S Compatibility: Yes
Standard Range: Up to 650.0' / 198.1 m
Internal Antenna: Yes
Sensitivity (0.1% PER): -97 dBm
Modulation Method: GFSK | | Enclosure | High-impact, flame-retardant polymer | | Exterior Color | Dark gray | | Battery / Runtime | Battery: 4 x AAA
Receiver Mode: 8 hours
Transceiver Mode: 4 hours | | Power | Input Voltage: 9 VDC 1000 mA
External Power Supply: 100 to 230 V 50/60 Hz | | Dimensions | 3.9 x 1.6 x 2.7" / 100.1 x 39.9 x 67.3 mm | | Weight | 1.7 lb / 0.8 kg |
