Product description - WELL Fit by CHAUVET Professional

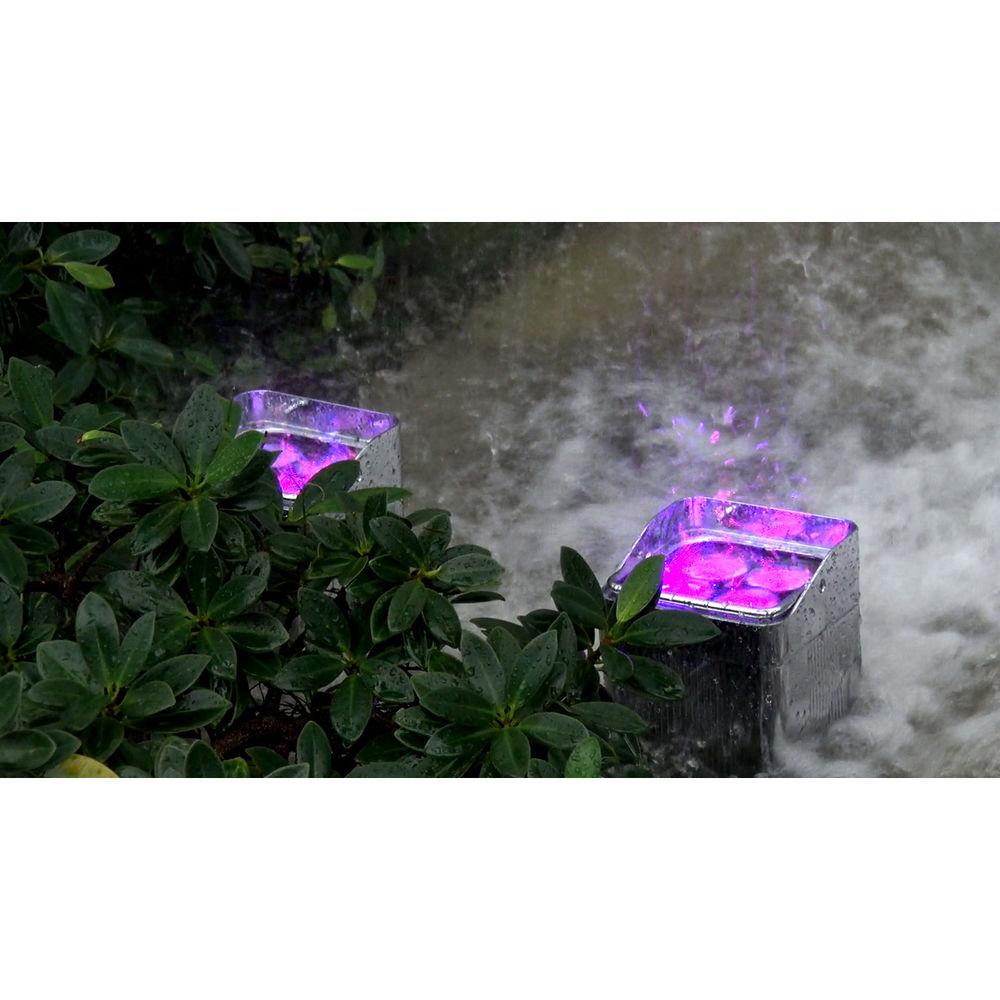

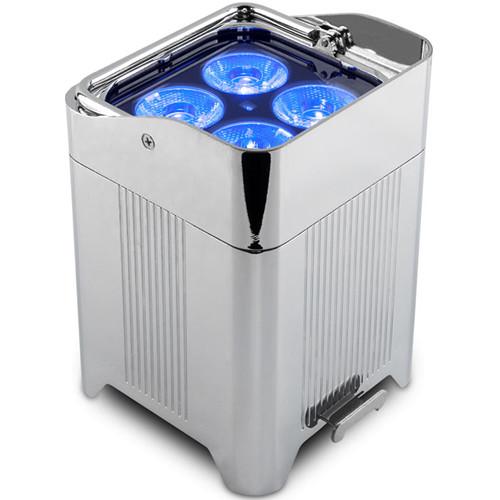

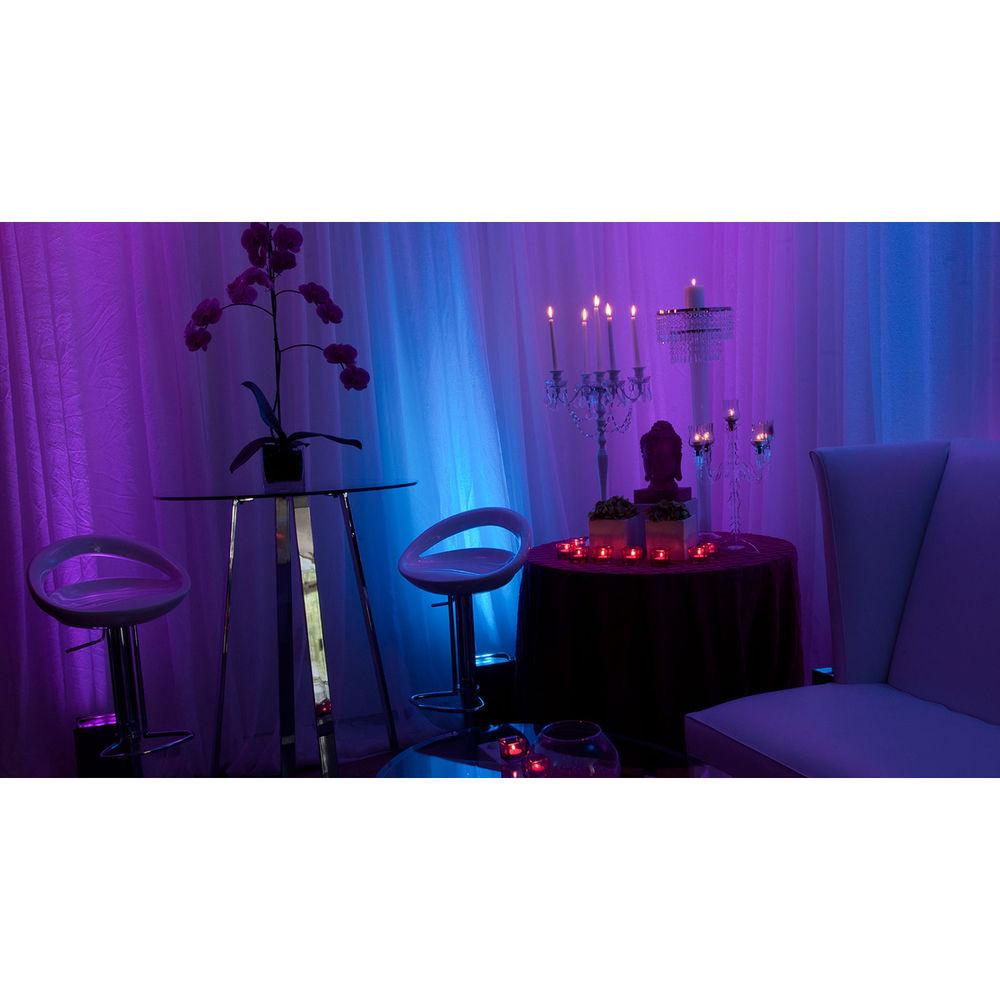

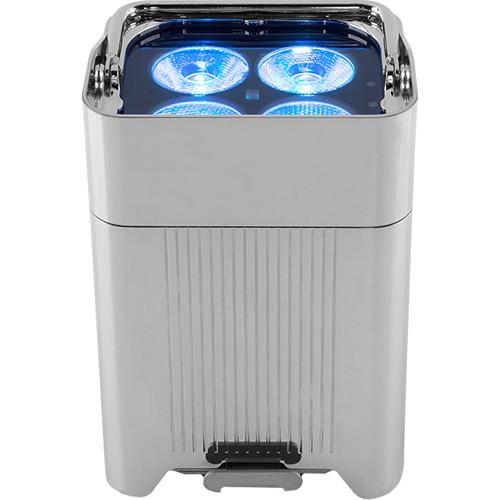

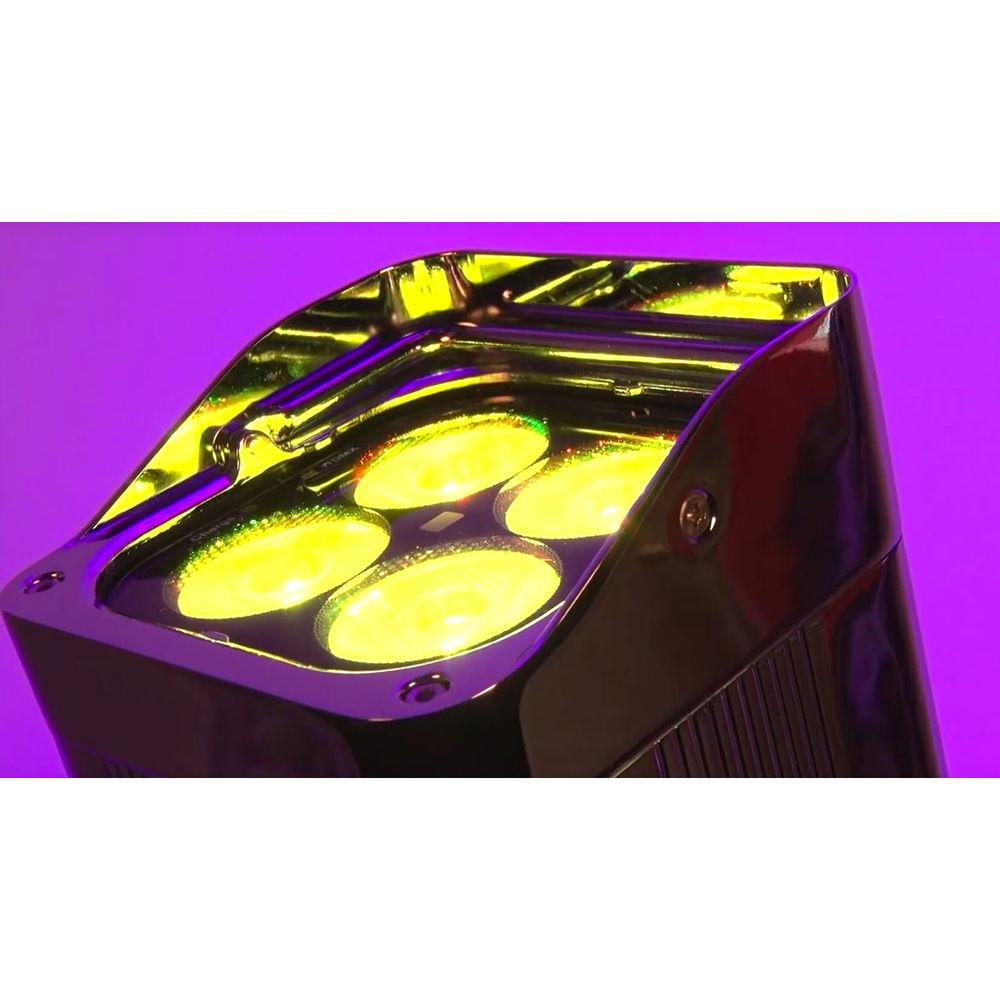

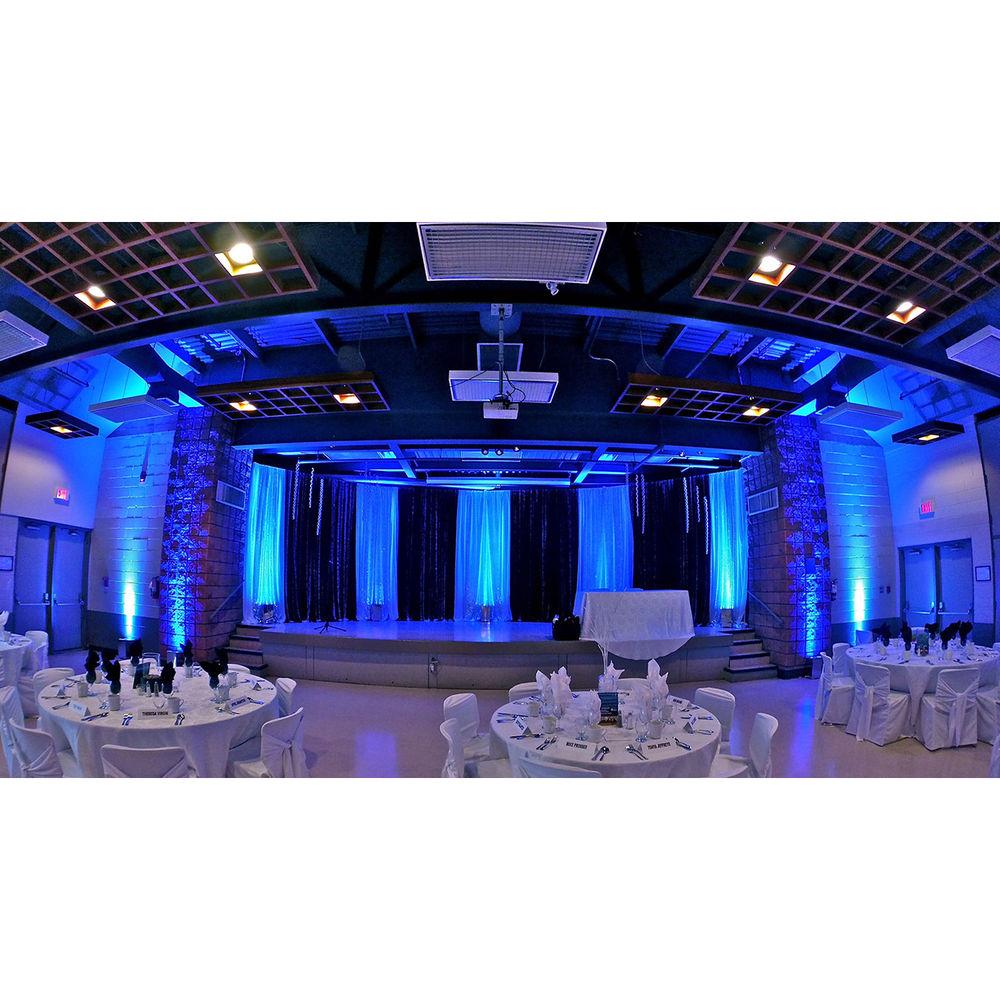

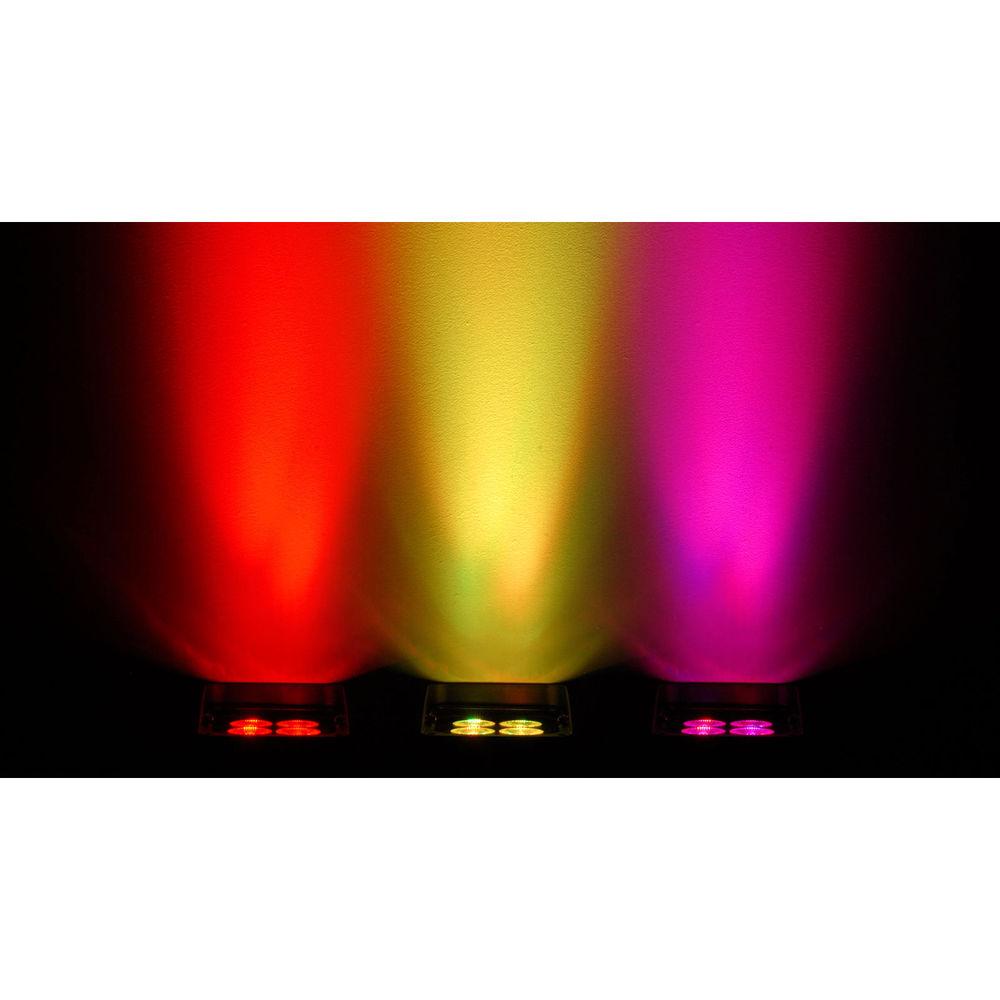

The pack of 6 WELL Fit 10W Wash LED Fixtures from CHAUVET comes with a drop-in charging case for easy storage and recharging of the battery. The WELL Fit uses 4 quad-color RGBA LEDs. It is battery powered and features a reflective chrome housing that blends into virtually any decor. It can be controlled wirelessly by either W-DMX or by an included IR remote. Alternatively, it can be controlled manually from the OLED display on the fixture. This fixture is suitable for distinguished accent lighting, particularly uplighting, and sets up quickly. - Uses 4 high-powered, quad-color RGBA LEDs
- Powered by a Li-ion battery; 8 hours of operation with all LEDs on and 20 hours with single LED on
- Can be controlled wirelessly either by W-DMX or included IR remote

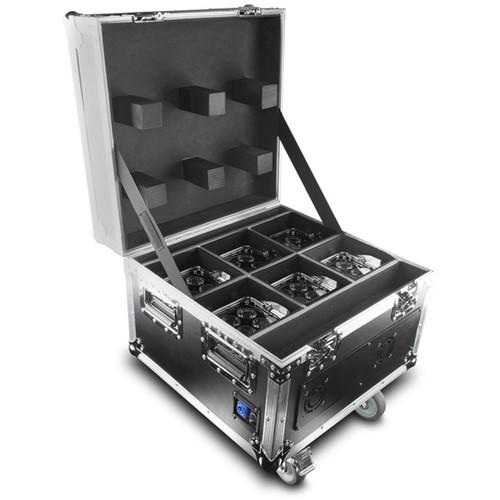

- Drop-in charging case for easy storage and recharging of the battery
- Chrome exterior blends into the surroundings
- Built-in automated programs can be recalled by IR, WDMX, or manually
- Stand-alone color mixing and color temperature presets
- M12-threaded insert for easy clamp installation
- Kensington lock for security
UPC: 781462215002 In the Box CHAUVET PROFESSIONAL WELL Fit 10W Wash LED Fixture with Charging Case (6-Pack) Charging Case IR Remote powerCON Power Cable with Edison Plug Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL WELL Fit 10W Wash LED Fixture with Charging Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL WELL Fit Specs | | | Source | 4 x 10 W quad-color RGBA LEDs (720 mA) | | Life Expectancy | 50,000 hours | | Beam Angle | 11° | | Field Angle | 18° | | Illuminance | 800 lux @ 16.4' (5 m) | | PWM Frequency | 1,200 Hz | | | | Color Mixing | Yes, stand-alone | | Color Temperature Presets | Yes | | Macros | 5 x color macros | | Dimmer | Electronic dimmer
4 x dimmer modes | | Shutter | Electronic shutter and strobe | | Strobe Rate | 0 to 24 Hz | | | | Power | Edison (local) plug to Neutrik powerCON | | Power Input | Neutrik powerCON | | Cable Length | Power: 5' (1.5 m) | | | | Wireless Control | W-DMX and IRC | | DMX Channels | 3, 4, 6, or 10 | | Operating Modes | 5 x modes: 4-channel, 6-channel, 10-channel, HSV, HSI | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) | | Power and Current | 120 V, 60 Hz:
Single Unit Charging: 48 W, 0.44 A
Charging Case: 288 W, 2.44 A
208 V, 60 Hz:
Single Unit Charging: 48 W, 0.25 A
Charging Case: 288 W, 1.5 A
230 V, 50 Hz:
Single Unit Charging: 48 W, 0.23 A
Charging Case: 288 W, 1.38 A | | | | Type | Li-ion, rechargeable | | Battery Power | 14.8 V, 11 Ah | | Charge Time | 5 hours | | Battery Life | All LEDs On: 8 hours
Single LED: 20 hours | | | | IP Rating | 65 | | Kensington Lock Support | Yes | | Housing Material | Die-cast aluminum | | Dimensions | Single Unit: 5.4 x 5.7 x 8.0" (13.8 x 14.5 x 20.2 cm)
Charging Case: 20.4 x 18.5 x 21.2" (51.9 x 47.0 x 54.0 cm) | | Weight | Single Unit: 7.4 lb (3.4 kg)
Charging Case: 103.6 lb (47 kg) | | | | Package Weight | 103.4 lb | | Box Dimensions (LxWxH) | 21.5 x 21.5 x 19.25" |
