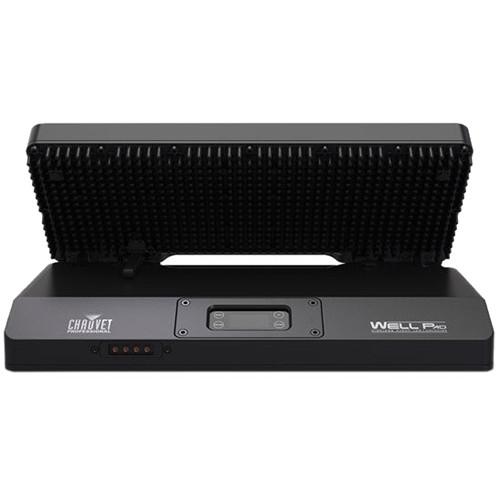

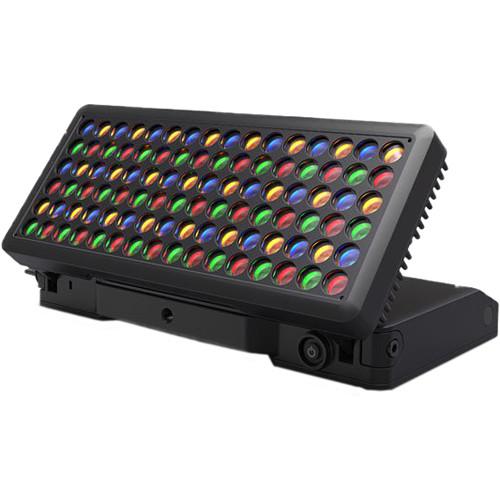

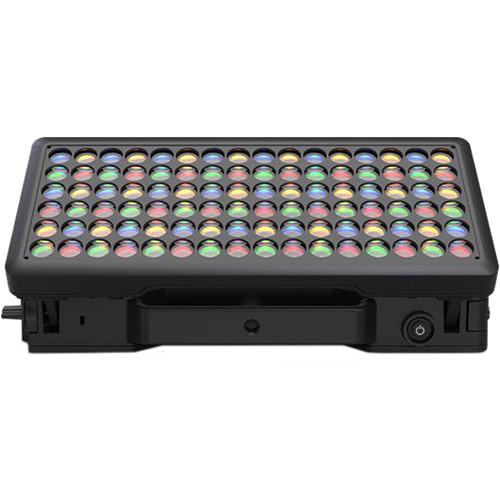

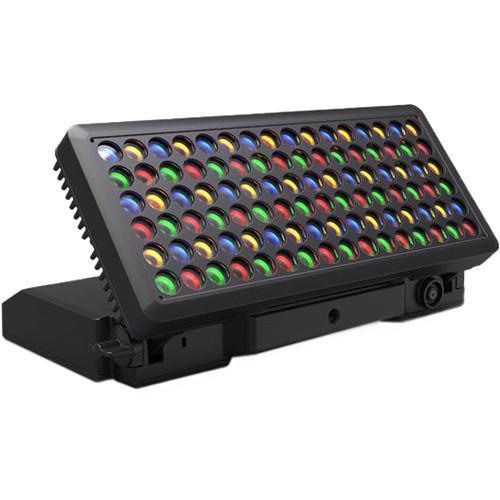

Product description The pack of four WELL Pads from CHAUVET Professional is composed of four outdoor-ready, wireless, battery-powered rectangular RGBA LED wash lights. The WELL Pad provides coverage of walls, stages, landscapes, and architectural elements from wide beam and field angles. Its orientation can be manipulated with a 90° rotation system from its base. It can be controlled via W-DMX or by using the included IR remote. Alternatively, it can be controlled manually from the OLED display on the fixture. The WELL Pad features a drop-in case for easy storage and recharging of the battery and includes a magnetic diffuser filter. - 96 single color (red, green, blue, and amber) LEDs
- Nine hours of operation at full output with a recharge time of six hours
- Built-in automated programs recallable by IR, W-DMX, or manually
- M12 threaded insert for clamp installation and a Kensington lock position for security
- Selectable PWM ensures that the WELL Pad is always camera-ready
- IP65 rating for temporary outdoor usage
In the Box CHAUVET PROFESSIONAL WELL Pad (4-Pack) 4 x Diffusion Filter Charging Case Neutrik powerCON Power Cable IR Remote Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CHAUVET PROFESSIONAL WELL Pad in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHAUVET PROFESSIONAL WELL Pad Specs | | | Light Source | 96 LEDs (24 Red, 24 Green, 24 Blue, 24 Amber), 1 to 3 W (500 mA)
Life Expectancy: 50,000 Hours | | Beam Angle | Without Filter: 22°
With Filter: 27° | | Field Angle | Without Filter: 38°
With Filter: 51° | | Illuminance | Without Filter: 553 lux at 16.4' / 5 m
With Filter: 316 lux at 16.4' / 5 m | | | | Tilt | 90° | | Tilt Range | 0 to 90° Tilt | | Macros | 5 Color Macros | | Dimmer | Electronic | | Shutter/Strobe | Electronic | | Strobe Rate | 0 to 25 Hz | | Standalone Color Mixing | Yes | | Color Temperature Presets | Yes | | Dimming | 4 Modes | | Programs | Built-In Automated | | | | Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto-Ranging) | | Power and Current | Single Unit Charging: 120 W, 0.996 A at 120 V, 60 Hz
Charging Case: 480 W, 3.984 A at 120 V, 60 Hz
Single Unit Charging: 135 W, 0.654 A at 208 V, 60 Hz
Charging Case: 540 W, 2.616 A at 208 V, 60 Hz
Single Unit Charging: 137 W, 0.594 A at 230 V, 50 Hz
Charging Case: 548 W, 2.376 A at 230 V, 50 Hz | | | | Battery Type | Lithium-Ion | | Rechargeable | Yes | | Battery Charge Time | 6 Hours | | Battery Life | All On: 9 Hours
Single LED: 13 Hours | | Battery Power | 18.5 V, 26 Ah | | | | Power Connection Type | Edison (Local) Plug to Neutrik powerCON | | Power Input | Neutrik powerCON | | Power Cable Length | 5' / 1.5 m | | | | Control Protocol | W-DMX | | DMX Channels | 4, 6, or 10 | | DMX Personalities | 3 Personalities (4 Channel, 6 Channel, 10 Channel) | | | | Certification | CE | | IP Rating | IP65, Temporary Outdoor/Wet Use with Pressure Equalizing M12 GORE Valve | | Ambient Temperature Range | -4 to 113°F / -20 to 45°C | | | | Exterior Color | Black | | Housing Material | Aluminum Die-Cast | | Dimensions | 15.98 x 8.38 x 3.99" / 40.6 x 21.3 x 10.2 cm
Charging Case: 26.29 x 22.83 x 19.0" / 66.8 x 58.0 x 48.3 cm | | Weight | Single Unit: 21.6 lb / 9.8 kg
Charging Case: 67.8 lb / 30.8 kg |
