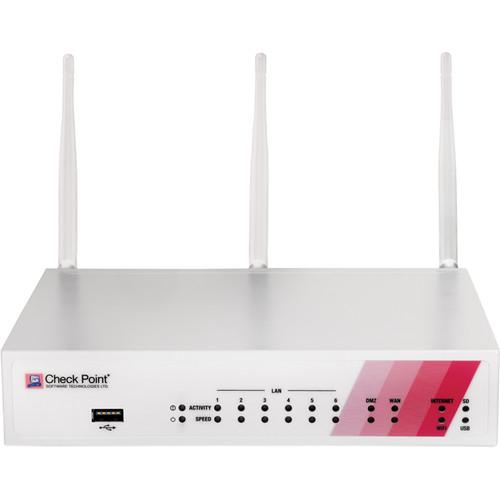

User Manual for Check Point 750 Wireless 802.11ac Dual-Band Gigabit Security Firewall Router Click to enlarge the picture
Contents of the user manual for the Check Point 750 Wireless 802.11ac Dual-Band
- Product category: Firewalls & Security Devices Check Point
- Brand: Check Point
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Check Point Firewalls & Security Devices
|
User manual for the Check Point 750 Wireless 802.11ac Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Check Point product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Check Point user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Check Point product will considerably shorten its lifespan!
|
Product description The 750 Wireless 802.11ac Dual-Band Gigabit Security/Firewall Router from Check Point sports six Gigabit Ethernet ports and 802.11ac Wi-Fi to deliver a protected Internet experience for your networked systems. The router features three antennas that provide wide coverage as well as 2.4 GHz and 5 GHz frequencies. It comes built with one WAN port along with a DMZ port that can be used to create an isolated network, which has a separate network ID from your main network. Aside from the networking ports, Check Point includes an advanced security service for 1 year to guard your network against dangerous applications and websites as well as malware and spam. This combination of features provides a threat prevention throughput of 200 Mbps. To set up your network, an intuitive web-based management system allows you to configure the 750 router without an IT professional. Moreover, a USB 3.0 port, mini-USB port, and microSDHC slot are available to enhance the capabilities of the router. - Advanced Firewall and Threat Protection
- The Check Point 750 appliance has firewall, antivirus, IPS, and threat-prevention security technologies to deliver protection against cyber attacks. Protect your company from modern-day threats with Check Point enterprise-grade security in a simple product designed for SMB.
- Comprehensive Protection Suite
- The Check Point 750 appliance leverages Software Blade Architecture to protect any small office environment with:
- Firewall
- Application control
- VPN
- URL filtering
- IPS
- Antivirus
- Anti-bot
- Anti-spam
- Hardware
- The 750 appliance comes with six Gigabit Ethernet ports and supports an optional 3G/4G/LTE modem.
- Easy Configuration and Management
- The Check Point 750 appliance is simple to manage by small companies with limited IT staff and can be configured and deployed within minutes.
- Configurable within minutes and requires minimal IT security knowledge
- Simple web-based local management interface
- Automated reporting and easy-to-understand logs
In the Box Check Point 750 Wireless 802.11ac Dual-Band Gigabit Security/Firewall Router Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Check Point 750 Wireless 802.11ac Dual-Band Gigabit Security Firewall Router in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCheck Point 750 Specs | Ports | WAN: 1 x 10/100/1000Base-T
DMZ: 1 x 10/100/1000Base-T
LAN Switch: 6 x 10/100/1000Base-T
Console: 1 x Ethernet | | Wireless | 802.11a/b/g/n/ac MIMO 3x3
2.4 GHz and 5 GHz | | Performance | SecurityPower: 141
Firewall Throughput: 1000 Mbps
Threat Prevention: 200 Mbps
Firewall UDP 1518 Byte Packets: 4,000 Mbps
VPN AES-128 Throughput: 500 Mbps
Connections per Second: 25,000
Concurrent Connections: 400,000
Mobile Access (concurrent users): 100 | | USB | 1 x mini USB
1 x USB 3.0 | | Card Slot | microSDHC | | Compatibility | 3G/4G modem support | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -49 to 140°F / -45 to 60°C
Storage Humidity: 5 to 95% (non-condensing) | | Power | Input: 110 to 240 VAC, 50 to 60 Hz
Power Rating: 12 V/3.33 A, 40 W (adapter)
Power Consumption: 30 W | | Certification | Safety: UL/c-UL / IEC 60950 CB
Emissions: EMC EN55022 Class B / FCC Part 15 Class B
Environment: RoHS | | Dimensions (W x H x D) | 8.3 x 1.7 x 6.1" / 210.0 x 42.5 x 155.0 mm | | Weight | 2.9 lb / 1.3 kg |
