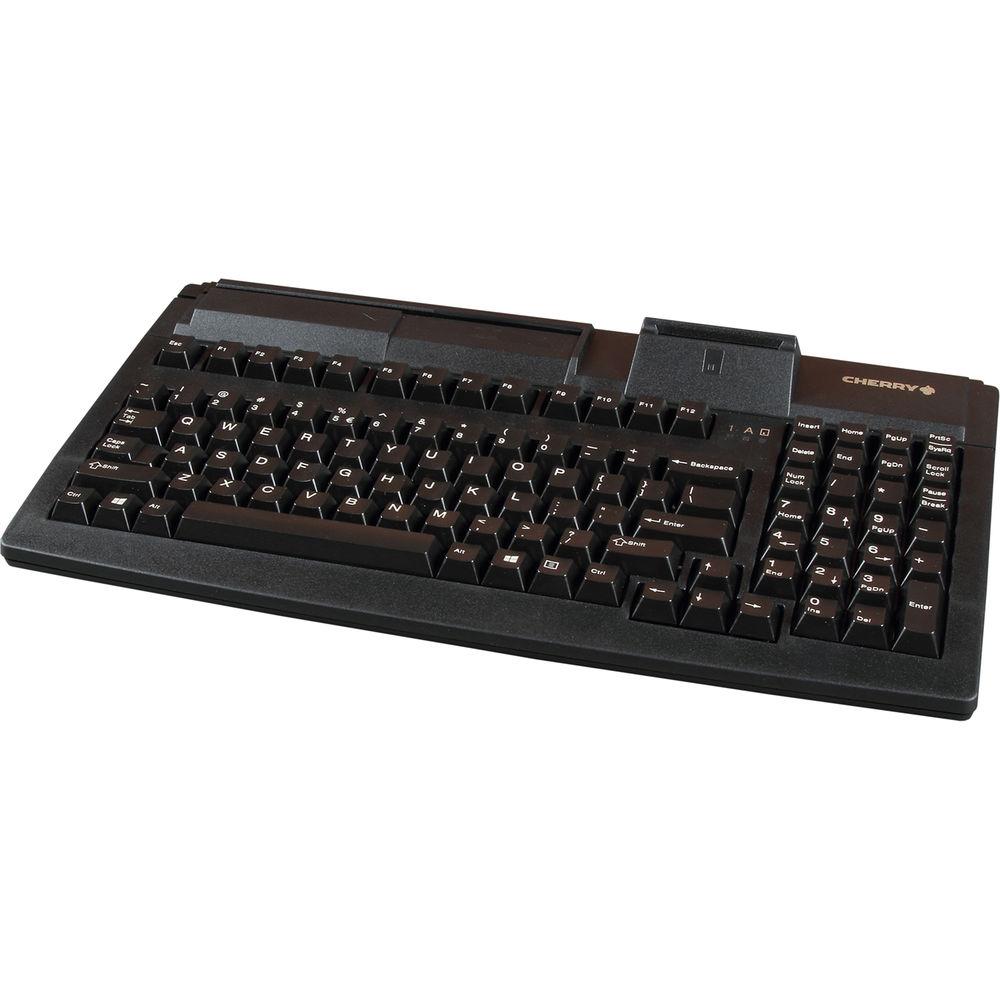

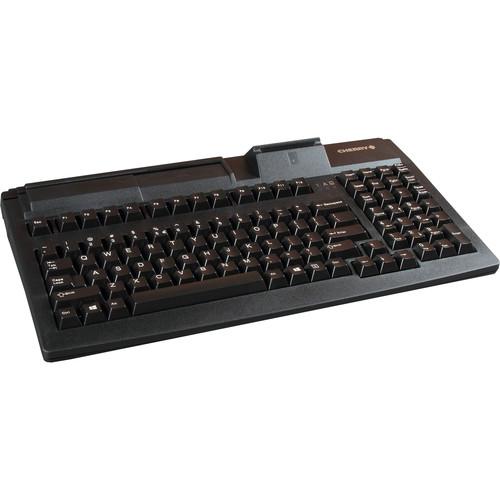

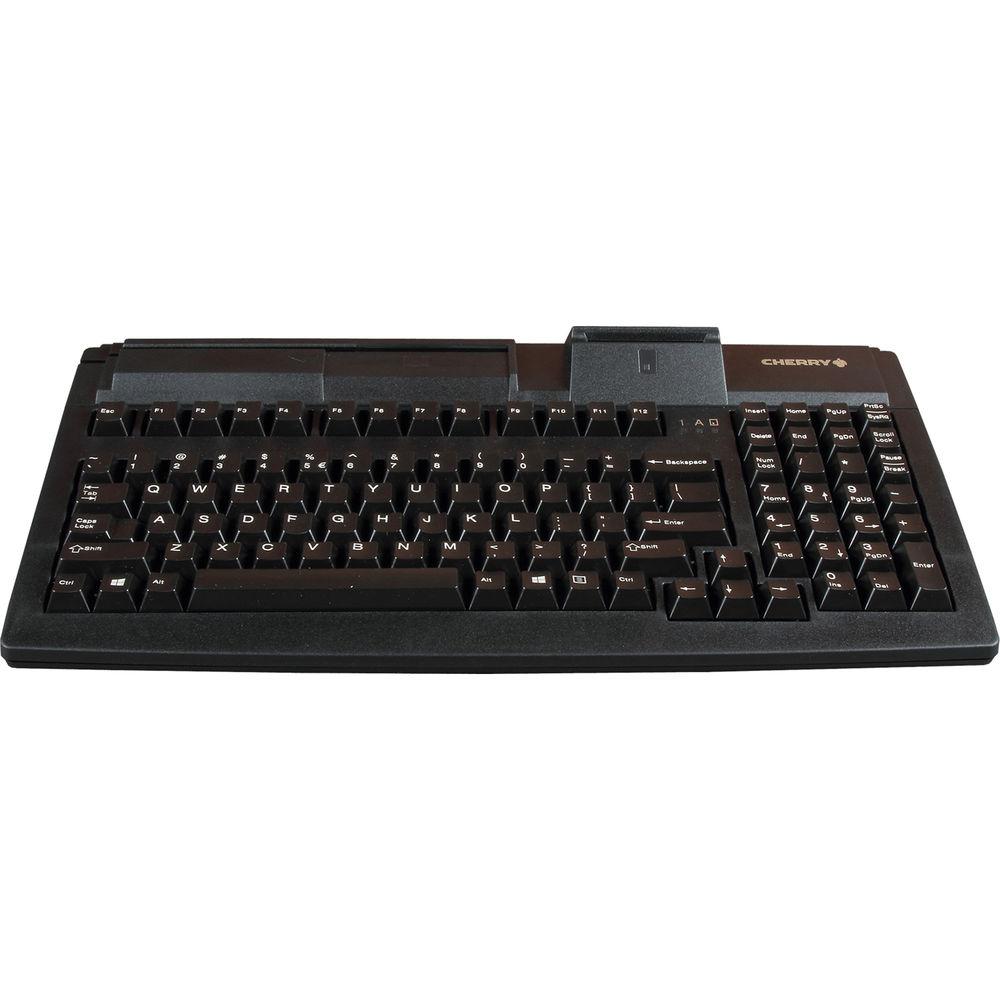

User Manual for CHERRY G80-7040 Compact MSR Keyboard with US 104 Position Key Layout Click to enlarge the picture
Contents of the user manual for the CHERRY G80-7040 Compact MSR Keyboard with
- Product category: Keyboards CHERRY
- Brand: CHERRY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHERRY Keyboards
 |
User manual for the CHERRY G80-7040 Compact MSR Keyboard with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHERRY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHERRY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHERRY product will considerably shorten its lifespan!
|
Product description The G80-7040 Compact MSR Keyboard from CHERRY is a full size keyboard with 104 position US key layout including Windows keys. The landing contacts ensure up to 200,000 smart card insertion cycles. The mechanical MX keyswitches are rated at 50 million actuations to withstand harsh environments and ensure long product lifetime. The top insertion smart card reader enables the card to stay in plain view of the user. It supports the maximum smart card speed for fastest data transmission and highest read & write performance. - PC/SC and EMV 2000 compatible smart card reader ensures universal application support
- Top insertion smart card reader enables card to stay in plain view of the user
- Supports maximum smart card speed for fastest data transmission and highest read & write performance
- Landing contacts ensure up to 200,000 smart card insertion cycles
- Smart card reader drivers for Windows, Linux, and Macintosh
- 43 free programmable keys for easy layout configuration
- High performance magnetic stripe reader with freely programmable headers and terminators for each track
- Selection of non-keyboard hexcodes enhances security for credit card processing
- Free parsing and configuration of magnetic stripe data
- Powerful configuration software CHERRY Tools enhances functionalities when switching into Virtual Programming Mode and allows for quick product setup & configuration
- Easy configuration file transfer with windows explorer
- UPOS drivers for Windows and Linux support of client-server architectures
- Remote network installation with CHERRY Tools Runtime Version (USB)
- Mechanical MX keyswitches are rated at 50 million actuations to withstand harsh environments and ensure long product lifetime
- Full US 104 position key layout
- Statistics provided via WMI
In the Box CHERRY G80-7040 Compact MSR Keyboard with US 104 Position Key Layout Limited 3-Year Warranty Brochure PDF 435.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the CHERRY G80-7040 Compact MSR Keyboard with US 104 Position Key Layout in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHERRY G80-7040 Specs | | | Interface | USB 2.0 | | Current Consumption | 190 mA typical, <2.5 mA in USB suspended mode | | Technology | Key: MX | | Service Life | Standard Key: >50 million key operations | | Operation | BLACK SWITCH linear (60 cN) | | Technology | Inscription: Laser | | Layout | Inscription: Standard | | Number of Keys | Full size 104 position US key layout including Windows keys | | Cable Length | 86.6" (2.0 m) | | System Requirements | USB connection | | Reliability | MTBF: >80000 hours
MCBF: 10 billion operations | | Contact | Mechanical landing contacts | | | | Standards | ISO 7816, PC/SC, EMV 2000 level 1, CCID cards, CTAPI | | Type | Mechanical | | Hardware Interface | USB | | Agency Approvals | EMV 2000 level 1 | | Software Interface | CT-Api, PC/SC, OCF | | Mating Cycles | >200000 operations | | Compatible With | Reads and writes on all ISO 7816 cards | | Protocols | T=0, T=1, S=8, S=10, S=9 | | Data Transfer Rate | Reader to card: 420 kb/s
Reader to PC: 12 Mb/s | | | | Standards | ISO 7811/-12, AAMVA, JIS 1/2, Gemini, PCI DSS 3.0 compliant others on request | | Reader Head Life | Up to 1 million cycles | | Reading Speed | 8 to 318 cm/s at 30 bit/cm 8 to 127 cm/s at 83 bit/cm | | Tracks | Magnetic card: track 1, 2, and 3 | | Standards | ISO 7811/-12, JIS 1/2, AAMMVA | | Software Interface | CT-Api, PC/SC, OCF | | Direction | Right to left | | | | Approvals | c-tick, UL, VCCI, CE, FCC, BSMI, KCC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 15.94 x 8.66 x 2.51" (40.5 x 22.0 x 6.40 cm) | | Weight | 44.5 oz (1260.0 g) |
