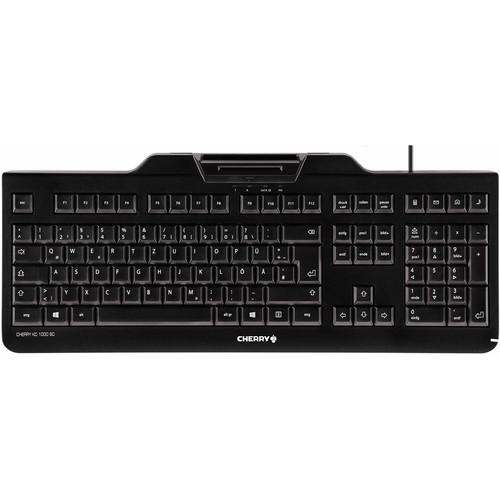

User Manual for CHERRY JK-A0100EU Smartcard Keyboard Click to enlarge the picture
Contents of the user manual for the CHERRY JK-A0100EU Smartcard Keyboard
- Product category: Keyboards CHERRY
- Brand: CHERRY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CHERRY Keyboards
|
User manual for the CHERRY JK-A0100EU Smartcard Keyboard contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CHERRY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CHERRY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CHERRY product will considerably shorten its lifespan!
|
Product description The black JK-A0100EU Smartcard Keyboard from CHERRY is designed to control logical access to networks in order to maintain a secure user base. The full size 104 + 4 position U.S. key layout provides optimum key arrangement for maximum productivity. Thanks to the low-profile (LPK) key technology, the keyboard supports a service life of 10 million actuations per key.The JK-A0100EU Smartcard Keyboard requires the secondary authentication of a Smart Card before allowing access to the connected system. The PC/SC smart card reader is CCID and EMV Level 1 approved, and is also compatible with reading and writing ISO 7816-compliant smart cards. The reader has a 100,000 insertion life cycle. In addition to the smart-chipset card reader, the keyboard supports secure PIN entry. This secure keyboard is suited for regulated industries such as government, finance and healthcare, or any organization that needs access control to enhance the security of their network. - Wired security keyboard with integrated chip card terminal
- Supported protocols; T=0, T=1, S=8, S=9, S=10
- FIPS 201 and EMV 2000 Level 1 approved
- Supports reading/writing ISO 7816 compliant smartcards
- Thin design, low smart card contacting unit
- Driver support for Windows, Mac OS-X, and Linux
- One-handed operation of smart card module
In the Box CHERRY JK-A0100EU Smartcard Keyboard (Black) Limited 2-Year Warranty Brochure PDF 52.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the CHERRY JK-A0100EU Smartcard Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCHERRY JK-A0100EU-2 Specs | Interface | USB | | Key Layout | Full size 104 + 4 position US key layout with Euro symbol | | Card Reader | Agency Approvals:
EMV 2000 Level 1
Chip-Card Protocols:
T=0, T=1, S=8, S=9, S=10
Contact:
Mechanical swipe reader
Software Interface:
CT-Api, PC/SC
Mating Cycles:
Approximately 100,000 operations
Compatible Chip Card Types:
Reads and writes on all ISO 7816 cards
Transmission Speed:
Reader to Card: 420 kB/s
Reader to System: Maximum 12 MB/s
Chip Card Pulse Frequency:
4.8 MHz | | Lifetime | Keyswitch: >10 million operations | | Technology | Keyswitch: Low Profile Keyboard (LPK) | | Current Consumption | Maximum 100 mA | | Storage Temperature | -4 to 140°F (-20 to 65°C) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Approvals | CE, GS, VDE, cURus, FCC, C-Tick, VCCI | | Cable Length | Approximately 5.9' (1.8 m) | | Dimensions | Approximately 18.0 x 7.4 x 1.8" (45.8 x 18.8 x 4.6 cm) | | Weight | Approximately 1.85 lb (0.84 kg) |
