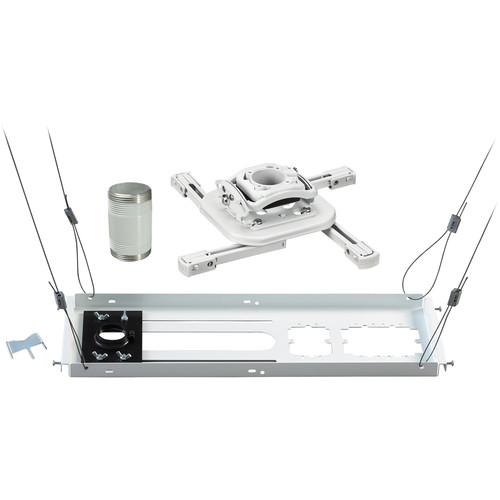

User Manual for Chief Ceiling Mount Kit for Projectors up to 25 lb Click to enlarge the picture
Contents of the user manual for the Chief Ceiling Mount Kit for Projectors
- Product category: Projector Mounts Chief
- Brand: Chief
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Chief Projector Mounts
|
User manual for the Chief Ceiling Mount Kit for Projectors contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Chief product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Chief user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Chief product will considerably shorten its lifespan!
|
Product description The Ceiling Mount Kit from Chief includes the Universal Mini Elite Projector Mount, a 3" Fixed Extension Column, and the Speed-Connect Above Tile Suspended Ceiling Kit.The Chief Mini Elite Projector Mount is a smaller version of the RPA Elite mount and offers all the same great features in a more compact design. This universal mount is a great choice if you wish to use it with more than one brand or anticipate changing projectors in the future.Although 1/3 smaller than the original RPA Elite mount, this mini mount has independent MicroZone adjustments and supports projectors up to 25 pounds. Centris Technology allows for fingertip positioning, which automatically adjusts to accommodate specific projector weights. It ships fully assembled, and is quick to connect or disconnect for lamp or filter changes due to the Q-Lock release lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates a key and lock for enhanced security.Offering flexible installation options including ceiling flush mounting, 6.35 mm threaded rods or 1.5" NPT threaded extension columns, this mount is considered universal because it fits most projectors. To confirm the compatibility of this mount with your projector, visit Chief's MountFinderPro. - RSMAUS Mini RPA Elite Projector Mount (White) The Chief RSMAUS Mini RPA Elite Projector Mount builds on the foundation of the highly successful RPA Elite mount, offering a compact design and smaller form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.
Although 33% smaller than the RPA, these mini mounts maintain 100% of the functionality of the larger mount, with independent MicroZone adjustments and a 25 lb capacity. Centris Technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the RSMAUS is also quick to connect or disconnect for lamp or filter changes via the Q-Lock Release Lever. Besides maintaining precise enough remounting to ensure that registration and preset adjustments remain unaffected, the lever integrates an "A" series key and lock.
Although the RSMAUS is considered universal insofar as it fits most projectors, to confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro. - Smaller Form Factor
- Compact design is smaller than the RPA Elite by 1/3 and includes all the same features
- Micro-Adjustable
- MicroZone Adjustments make projector registration fast and precise (including flush mount installations)
- Fingertip Positioning
- Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
- Cable Management
- Integrated cable management through top of mount without additional accessories
- Quick Release
- Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system (4 key options)
UPC: 841872119816 - CMS-003W 3" Speed-Connect Fixed Extension Column (White) Use the white Chief CMS-060 Speed-Connect Fixed Extension Column to lower your projector or flat panel display an additional 3" from the ceiling. Use in combination with any 1.5" NPT ceiling plate or other accessory. Consists of 1.5" NPT column threaded on both ends. Aluminum construction makes installation easy and saves on shipping costs. Weight capacity is 500 lb.
- Made of aluminum for easy installation and maximum strength
- Weight capacity is 500 lbs
UPC: 841872104768 - CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White) The Chief CMS440 Speed-Connect Lightweight Suspended Ceiling Kit focuses on speed of installation. The Speed-Connect series was designed as an upgrade to the popular CMA series of ceiling mount accessories, integrating easy-to-use features that focus on saving time and maximizing security.The Speed-Connect ceiling kit includes a host of design innovations, including the WireVice Cable Suspension System for quick and easy tie-off, and the TwisTile Tile Cutter, used for piercing holes into your ceiling tile. This design also features a continuously adjustable mounting slot for infinite placement options, along with single and dual electrical outlet cutouts, and All-Points tamper-resistant hardware at the column connection point.
- WireVice Cable Suspension System for quick and easy tie-off
- TwisTile Ceiling Tile Cutter pierces a circular hole in your tile for column placement
- Continuously-adjustable mounting slot for infinite placement options
- Single and dual electrical outlet cutouts
- All-Points Security System with exclusive locking hardware at column connection point to protect against theft
- Fits 24" (or 600mm) wide ceiling tile grids
UPC: 841872076102 In the Box Bundle Items RSMAUS Mini RPA Elite Projector Mount (White) - Nuts, Screws and Hardware
- 10 Year Manufacturer's Warranty
CMS-003W 3" Speed-Connect Fixed Extension Column (White) CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Ceiling Mount Kit for Projectors up to 25 lb in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RSMAUS Mini RPA Elite Projector Mount (White)
| Compatibility | To confirm the compatibility of this mount with your projector, visit Chief's | | Adjustments | Roll: +/-3°
Pitch: +/-15°
Yaw: 360° | | Construction | Steel | | Dimensions (HxWxD) | 1.83 x 4.37 x 5.07" (4.6 x 11.1 x 12.9 cm) | | Weight Capacity | 25 lbs (11.3 kg) | | Color | White | | | | Box Dimensions (LxWxH) | 10.4 x 10.3 x 4.6" | - CMS-003W 3" Speed-Connect Fixed Extension Column (White)
| Construction | Aluminum | | Finish | White | | Length | 3" | | Adjustments | Fixed column | | Weight | Capacity: 500 lb (226.8 kg) | | | | Box Dimensions (LxWxH) | 4.9 x 2.2 x 1.5" | - CMS440 Speed-Connect Lightweight Suspended Ceiling Kit (White)
| Construction | Aluminum, white | | Weight Capacity | 50 lb (18.66 kg) | | Dimensions | 8.0 x 23.4 x 1.3" (20.3 x 59.4 x 3.3 cm) | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 27.25 x 9.25 x 1.75" |
