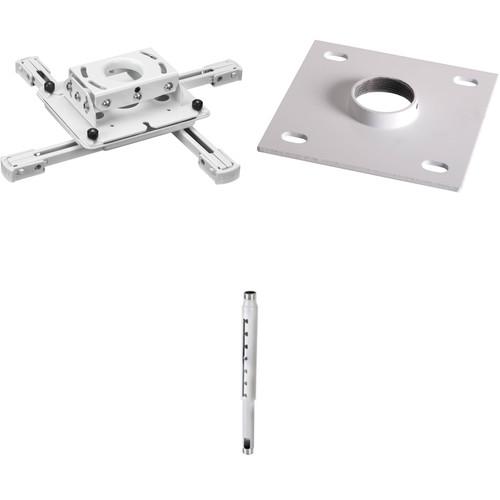

Product description This white Chief Ceiling Projector Mounting Kit from provides you with the ceiling mount, a mounting bracket, and an adjustable extension column. The projector mount provides adjustment in three axes, and is compatible with most inverted projectors. It includes an integrated hardware security system to deter theft. The included 6 x 6" plate supports up to 500 pounds, with proper installation, and the extendable column is adjustable in 1" increments from a length of 2 to 3'. - Chief RPAUW Inverted LCD/DLP Projector Ceiling Mount (White) An inverted ceiling mount with the exclusive All-Points security system, the Chief RPAUW is the top-selling projector mount in the industry. Ideal for use offices, schools and homes, it is supplied with everything needed for quick installation, a low-profile look and easy projector maintenance. It features a solid steel design, integrated cable management, and independent roll, pitch and yaw. It offers easy projector maintenance, quick projector connect/disconnect, and adjustable mounting legs and feet. The patented All-Points is an integrated security system that uses security hardware at all key connection points to protect projectors from theft. Steel-into-steel construction makes All-Points more effective than other integrated security systems. The RPAUW includes a universal interface bracket, making it compatible with 95% of inverted projectors on the market. This makes it perfect for installers who are uncertain of a customer's projector type. However, if you want to confirm the compatibility of this mount with your projector, visit Chief's MountFinder Pro.bddyrdxestctrdququtzczzuezqfx
Easy Installation - Independent Roll (+/-4°), Pitch (+/-25°) and Yaw (360°) adjustments make it easy to quickly and precisely register the projector.
- Three ceiling mounting methods: Flush mount, optional 1/4" threaded rod, or with an optional 1.5" NPT Threaded Extension Column.
- Compatible with a large assortment of accessories to easily overcome a variety of installation challenges.
- Allows lateral shift when using the optional LSB-100 Lateral Shift Accessory. The LSB-100 allows the projector to be shifted 3" right or left of the installation spot (5.75" on projectors under 15 lb). The LSB-100 is also used to accommodate different lens placement when projectors are replaced in existing installations. Maintains quick disconnect feature and includes All-Points Security System hardware.
Security and Reliability
- Heavy gauge solid steel design for secure mounting.
- UL-listed for proven strength, supports projector systems up to 50 lbs.
- Includes the All-Points Security System - exclusive locking hardware to protect against theft. Optional to use, the system locks the projector and mount with security hardware at all key connection points: Roll, Pitch and Yaw adjustments; bracket-to-projector; and mount-to-bracket.
- Compatible with Chief's PG-1A and PG-2A Projector Guard security cages.
- Backed by a 10-year warranty to ensure that you are receiving the best quality product.
Conveniences
- Low-profile design allows the RPAU to be flush mounted without additional accessories.
- Ships fully assembled with everything you need for installation in one box.
- Custom designed brackets allow quick projector disconnect without loss of registration, doesn't affect pre-set adjustments.
- Quick projector reconnect with convenient lamp and filter access.
- Integrated cable management allows cables to be routed through the top of the mount without additional accessories.
- Easy to maintain, it allows easy replacement of filter or bulb; offers proper ventilation; and lets you adjust the contour of the mount for the lowest profile possible.
UPC: 841872045405 - Chief CMA115W 6x6" Ceiling Plate with 1.5" NPT Opening (White) The UL-listed Chief CMA-115 ceiling plate is designed for ease of installation with any height of drop ceiling. By using any length of standard NPT 1-1/2" pipe threaded both ends, you can extend the height capabilities to meet your needs. Can also be combined with any Chief CMS Fixed or Adjustable Extension Column to customize your installation. Use where a short extension column will be used, or in installations where there may not be adequate space for a larger plate. Weight capacity is 500 lbs. UPC: 841872045481
- Chief CMS-0203W 2-3' Speed-Connect Adjustable Extension Column (White) Threaded on both ends, the white Chief CMS-0203W is a 2 - 3' (60.9 - 91.4cm) adjustable extension column that can be used with any 1.5" NPT accessory to lower a projector or flat panel display to a desired height. Includes a continuously adjustable notch for length changes (1" increments) without disassembly, aluminum construction for fast and easy installation, and flow-through cable management with an integrated port for routing cables. Supports up to 500 pounds.
- Revolutionary notched design allows for lightning-fast height adjustments without disassembly
- Aluminum construction for easier installation - also saves on shipping costs
- Flow-through cable management with an integrated port on one end for routing cables
UPC: 841872092768 In the Box - RPAUW Inverted LCD/DLP Projector Ceiling Mount (White) bddyrdxestctrdququtzczzuezqfx
- Ceiling Bracket
- Joint Bracket
- Plate, Adjustment
- Self-Tapping, Pan Head, 10-24 x 1/2" Screws with Washer (12)
- 5/16" Screw Set
- 10-Year Warranty
- CMA115W 6x6" Ceiling Plate with 1.5" NPT Opening (White)
- CMS-0203W 2-3' Speed-Connect Adjustable Extension Column (White)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Chief Ceiling Projector Mounting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Chief RPAUW Inverted LCD/DLP Projector Ceiling Mount (White)
| | | Depth From Mounting Source | Not Specified by Manufacturer; The RPAUW adds approximately 2.5" (64mm) to the installation | | Max Equipment Size | 50 lbs (22.7kg) | | Adjustments | - Roll Adjustment: +/- 4° adjustment up or down
- Loosen screw, adjust mount and tighten screw to hold adjustment
- Pitch Adjustment: +/- 25° adjustment on each side of the mount. Loosen screw, adjust mount and tighten screw to hold adjustment. Full range of pitch in a flush mount installation.
- Yaw Adjustment: 360° by turning the mount on the threaded column and securing in place with set screw. 12° yaw possible on flush mount using slots in top of RPAUW.
| | | | Construction | Steel, Black | | Dimensions | 6.25 x 1.75 x 5.5" (159 x 44 x 140mm) Height does not include interface bracket | | Weight Capacity | 50 lbs (22.7kg) Each mount is designed to support the weight of the projector model(s) specified; However, your ceiling must hold at least five times the weight of your installation | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 10.5 x 10.3 x 4.55" | - Chief CMA115W 6x6" Ceiling Plate with 1.5" NPT Opening (White)
| | | Box Dimensions (LxWxH) | 9.3 x 8.4 x 1.0" | - Chief CMS-0203W 2-3' Speed-Connect Adjustable Extension Column (White)
| Construction | Aluminum | | Finish | White | | Length | 2-3' | | Adjustments | Not Specified by Manufacturer | | Weight | Capacity: 500 lbs (226.8kg) | | | | Box Dimensions (LxWxH) | 29.0 x 3.0 x 3.0" |
